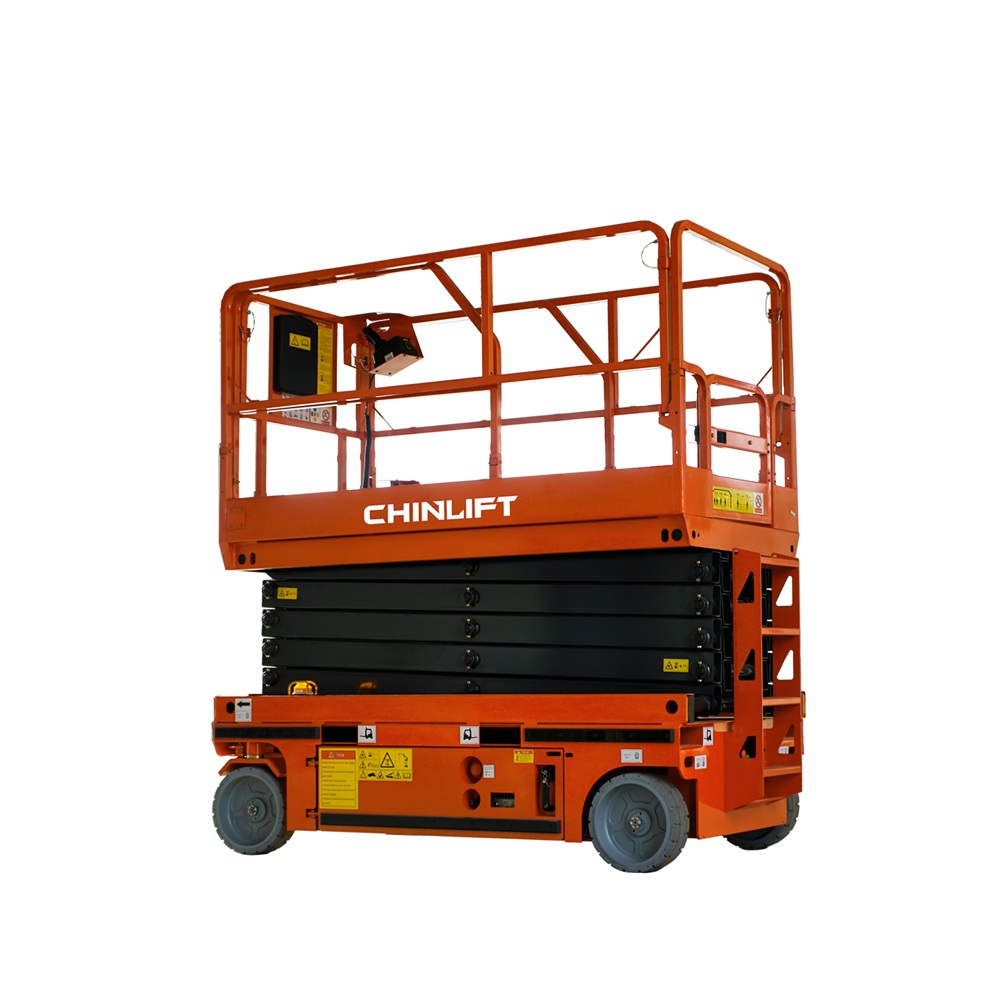

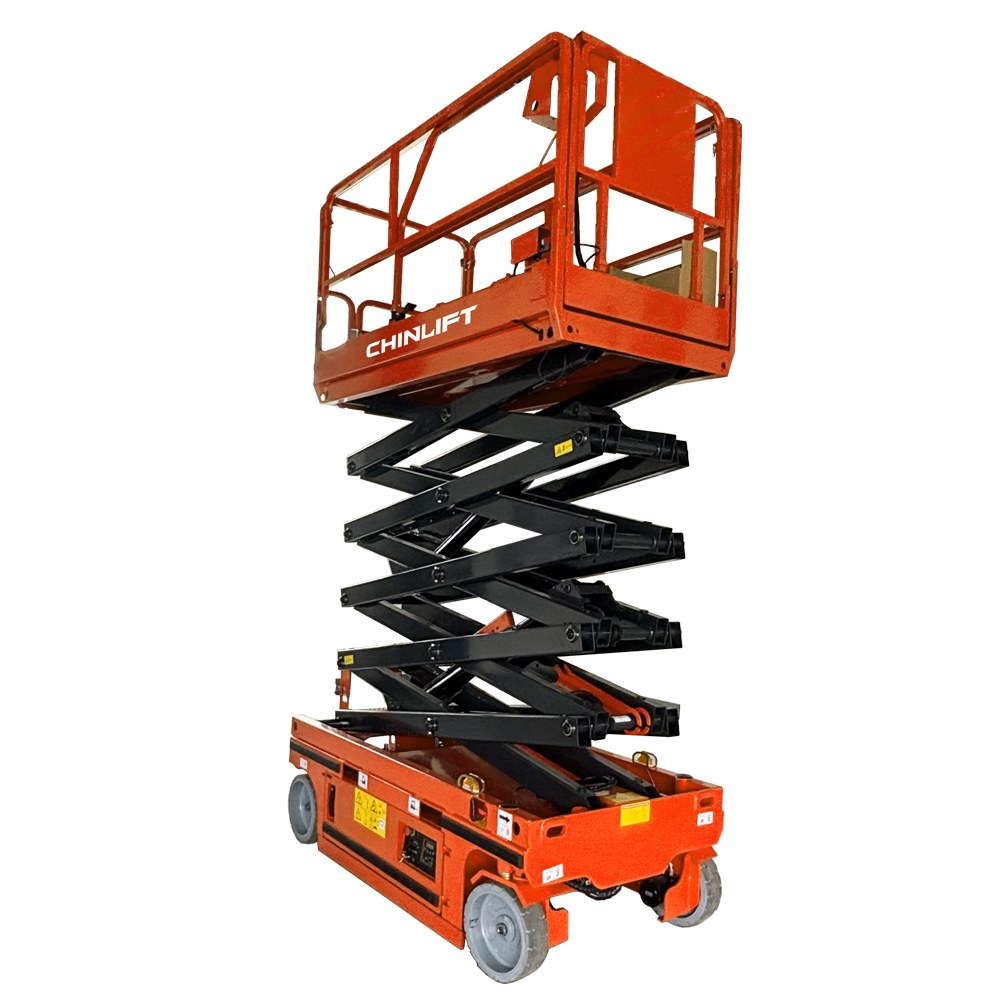

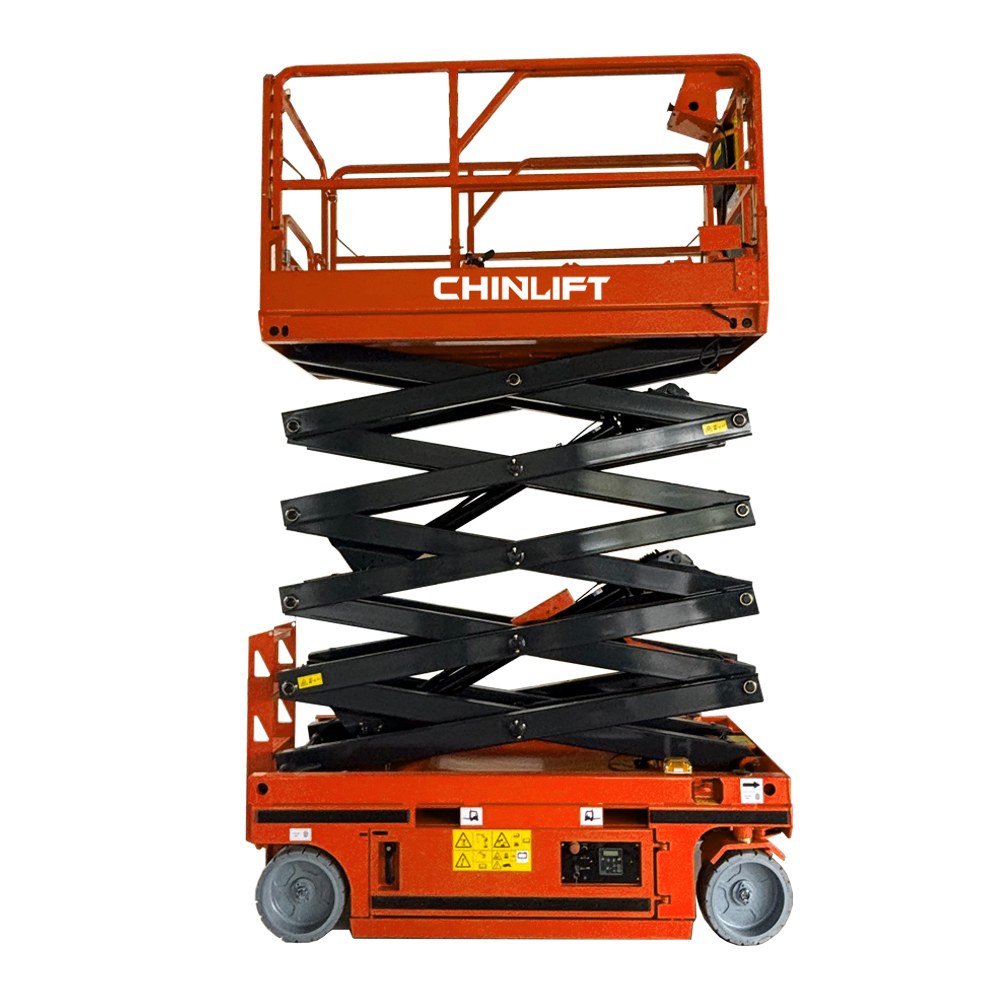

The Chinlift Self-Propelled Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
Model :
SJCPower Type :
ElectricLoad Capacity :
320/230kgLifting Height :
8000/10000/12000/14000mmSelf-Propelled Platform SJC0810/1020/1214/1416
The Chinlift Self-Propelled Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
| Model | SJC0810 | SJC1012 | SJC1214 | SJC1416 | |
| Power type | Electric | ||||
| Work type | Walkie style | ||||
| Rated capacity | 450kg | 320kg | 320kg | 230kg | |
| Max. platform height | 8000mm | 10000mm | 11800mm | 13800mm | |
| Max. working height | 10000mm | 12000mm | 13800mm | 15800mm | |
| Work platform size | 2270*1120mm | 2700*1110mm | |||
| turning radius | 2400mm | ||||
| Tyre size(drive wheel) | φ381*127m | ||||
| Battery capacity | 24V/200Ah | 24V/240Ah | |||
| Lifting motor | 24V/4.5kW | ||||
| Overall length | 2430mm | 2850mm | |||
| Overall width | 1210mm | 1310mm | |||
| Overal height | 2350mm | 2470mm | 2600mm | 2600mm | |
| Self weight | 2350kg | 2550kg | 2980kg | 3670kg | |
Optional
Optional
Optional
Customized accepted
