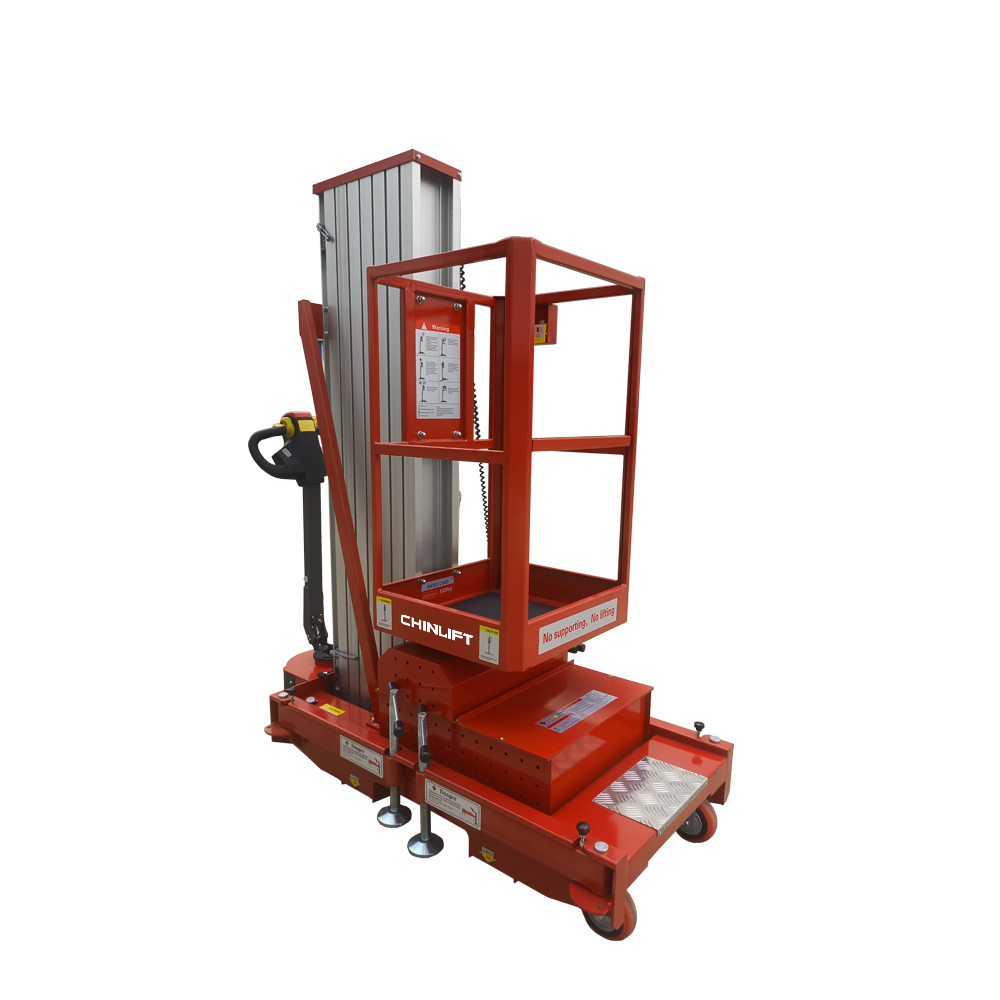

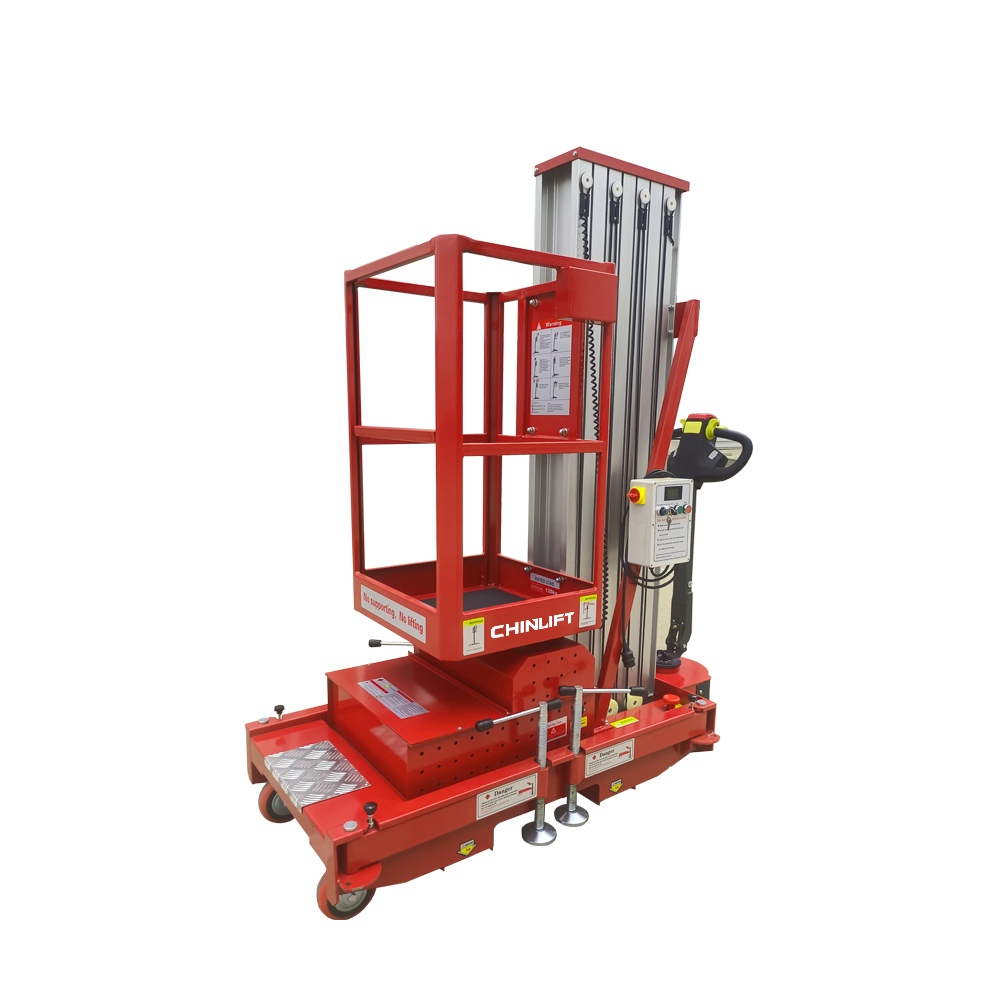

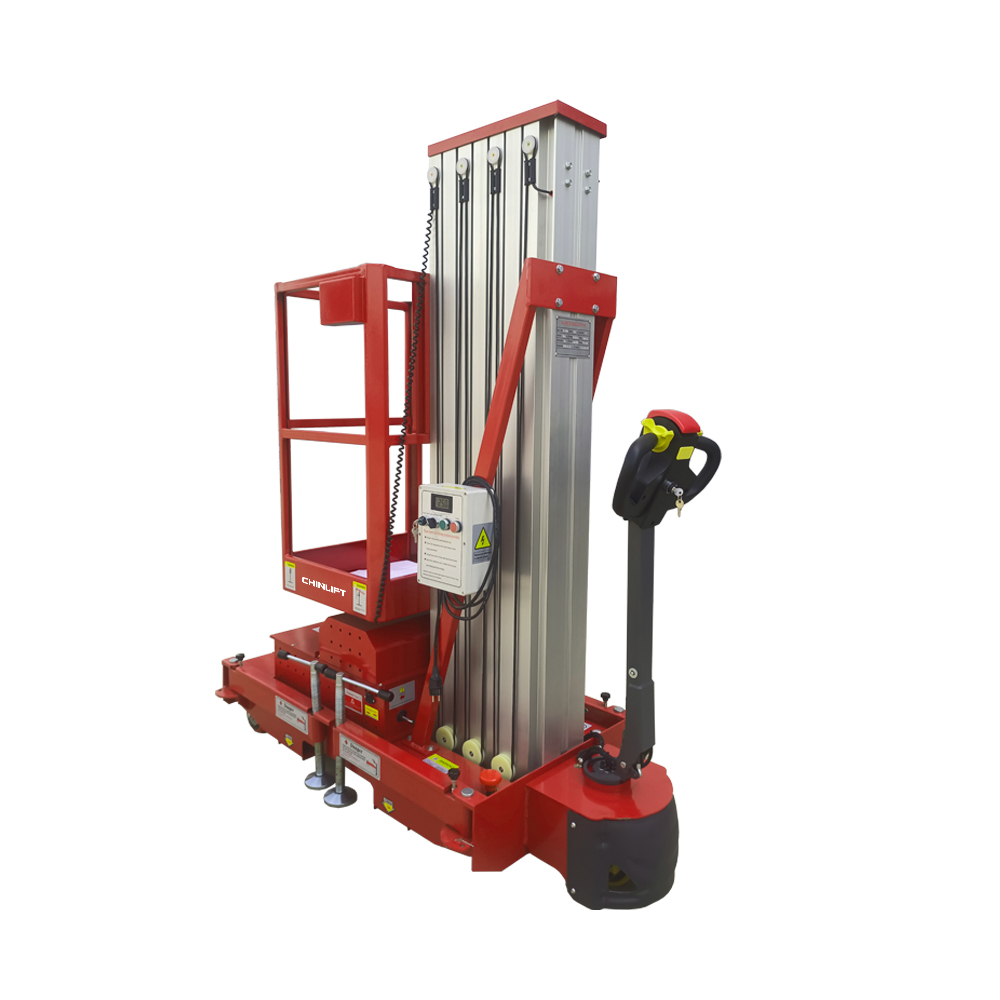

Single Mast Aluminum Alloy Platform GTWY-A

The Chinlift aluminum single mast work platform is intended to lift work with necessay tools to working heights of up to 9 meters The unique design of lifting mast provides excellent stability and enables operations more safe and easier. The single mast aerial work platform is built to be as compact as possible, so that the operator can move in through standard doorways or very narrow passages, AC power and DC power are optional.

  • Model :

    GTWY-A
  • Power Type :

    Electric
  • Load Capacity :

    125kg
  • Lifting Height :

    6000/8000/9000mm
  • Description

Single Mast Aluminum Alloy Platform GTWY-A



The Chinlift aluminum single mast work platform is intended to lift work with necessay tools to working heights of up to 9 meters The unique design of lifting mast provides excellent stability and enables operations more safe and easier. The single mast aerial work platform is built to be as compact as possible, so that the operator can move in through standard doorways or very narrow passages, AC power and DC power are optional.

  • 3 Ton Diesel Counterbalance Forklift



Features:

  • The mast is composed of aluminum alloy and tightly connected by chains.
  • Four stable support rod components are connected at four comers to better prevent platform tilting.
  • Small in size, one person can also push the platform, After folding, you can enter the standard size porch and elevator.

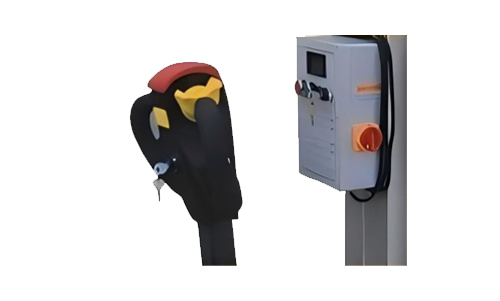

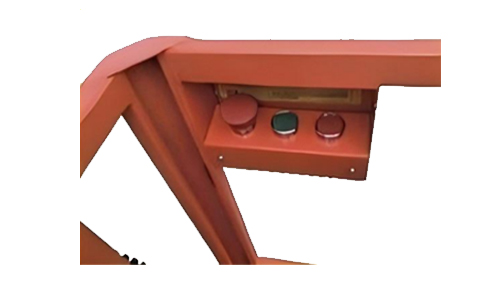

  • The lifting platform and platform chassis are equipped with control and emergency systems, and the chassis also has emergency manual lowering rods to ensure the safety of operators.

Technical Specifications (Product Information)

Model GTWY6-125A GTWY8-125A GTWY9-125A
Power type Electric
Work type Walkie style
Rated capacity 125kg 125kg 125kg
Max. platform height 6000mm 8000mm 9000mm
Max. working height 7700mm 9700mm 10700mm
Ground clearance 50mm
Work platform size 600*550mm
Power system AC 220V
DC 24V
Battery capacity 2*12V/70Ah
Lifting motor AC 220V/0.75kW
DC 24V/0.8kW
Overall length 1640mm 1640mm 1700mm
Overall width 800mm 800mm 850mm
Overal height 1980mm
Self weight DC 310kg 350kg 380kg
AC/DC 320kg 360kg 390kg

Customizable Options

Electric driving handle

Optional

Li-ion battery

Optional

Lifting height

Optional

Colors

Customized accepted
