The Chinlift aluminum double mast work platform is intended to lift worker with necessary tools to working heights of up to 12 meters.The unique design of lifting mast provides excellent stability, enabling operations more safe and easie. AC power and DC power are optional.
Model :
GTWYPower Type :
ElectricLoad Capacity :
200kgLifting Height :

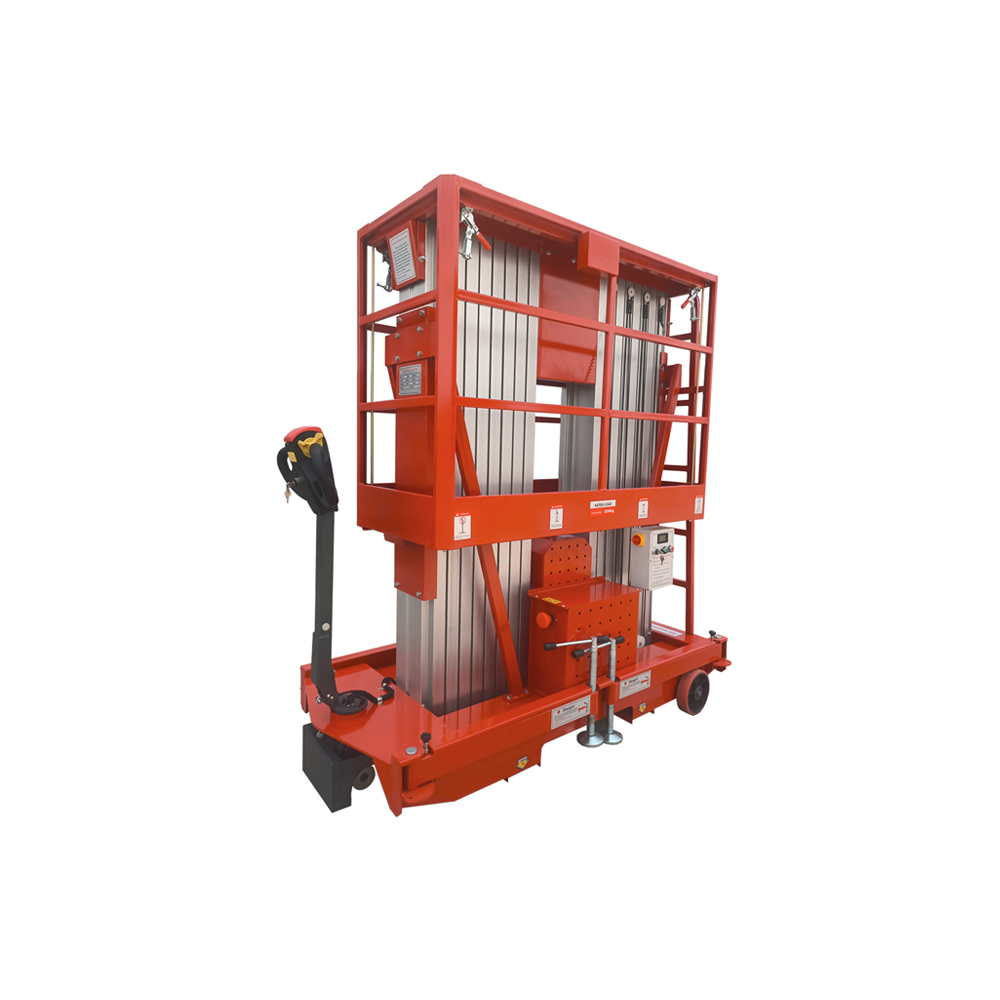

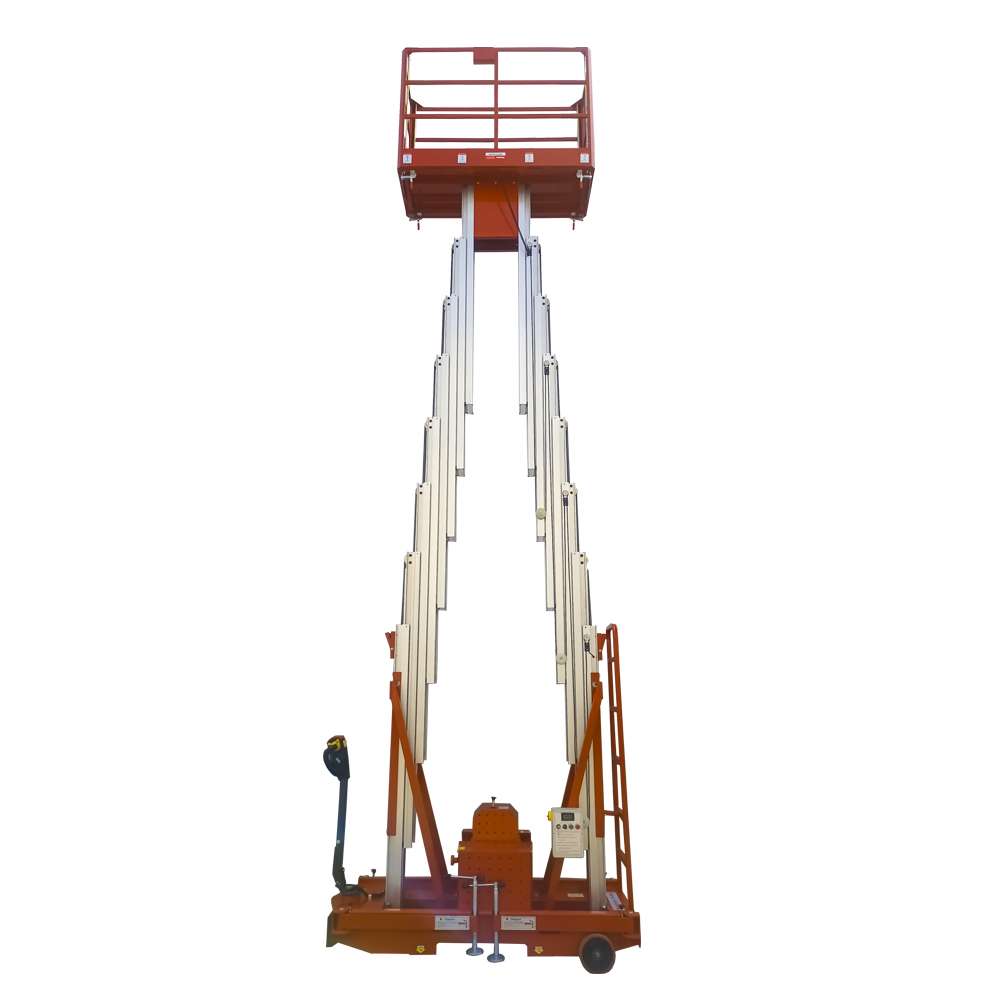

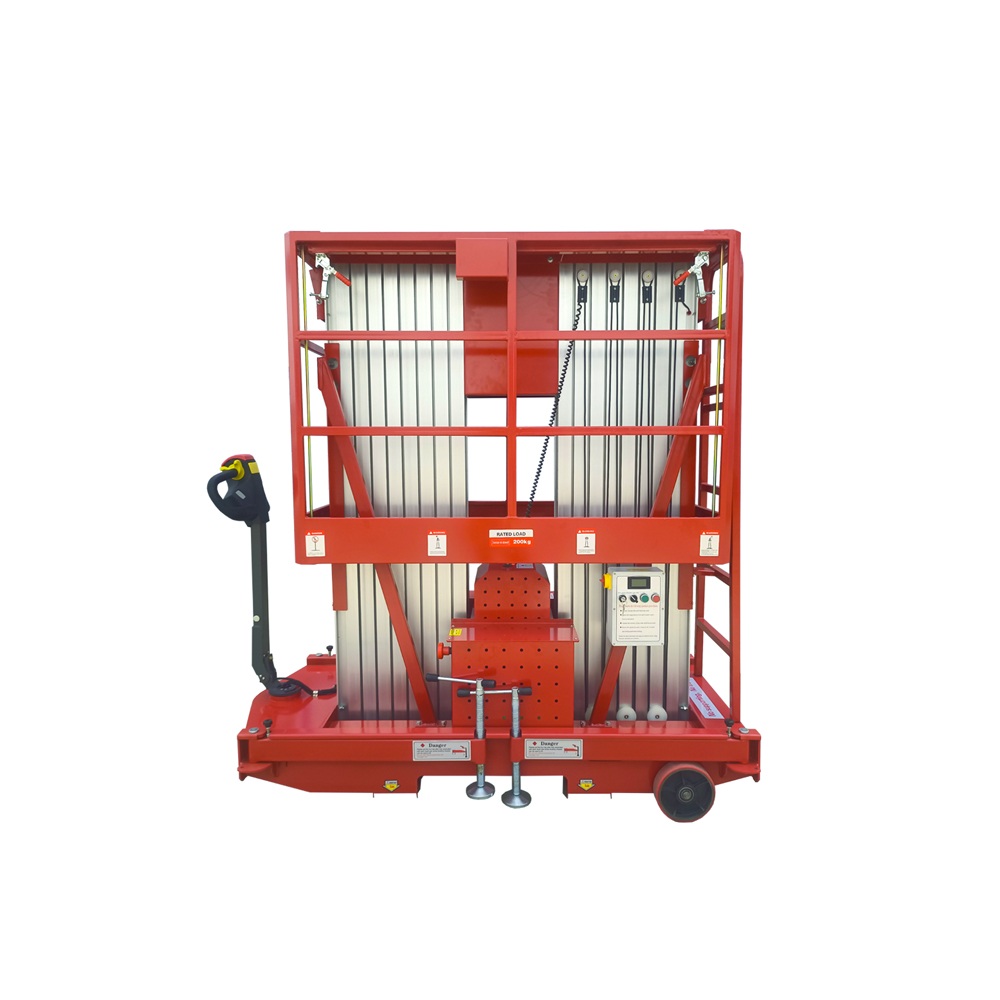

6000/8000/10000/12000mmDouble Mast Aluminum Alloy Platform GTWY
The Chinlift aluminum double mast work platform is intended to lift worker with necessary tools to working heights of up to 12 meters.The unique design of lifting mast provides excellent stability, enabling operations more safe and easie. AC power and DC power are optional.
| Model | GTWY6-200 | GTWY8-200 | GTWY10-200 | GTWY12-200 | |
| Power type | Electric | ||||
| Work type | Walkie style | ||||
| Rated capacity | 200kg | 200kg | 200kg | 200kg | |
| Max. platform height | 6000mm | 8000mm | 10000mm | 12000mm | |
| Max. working height | 7700mm | 9700mm | 11700mm | 13700mm | |
| Ground clearance | 76mm | ||||
| Work platform size | 1180*620mm | 1380*620mm | |||
| Power system | AC | 220V | |||
| DC | 24V | ||||
| Battery capacity | 2*12V/70Ah | ||||
| Lifting motor | AC | 220V/1.1kW | |||
| DC | 24V/0.8kW | ||||
| Overall length | 1380mm | 1580mm | 1620mm | ||
| Overall width | 850mm | 950mm | |||
| Overal height | 1980mm | 2250mm | |||
| Self weight | DC | 380kg | 480kg | 610kg | 650kg |
| AC/DC | 410kg | 510kg | 640kg | 680kg | |
Optional
Optional
Optional
Customized accepted
