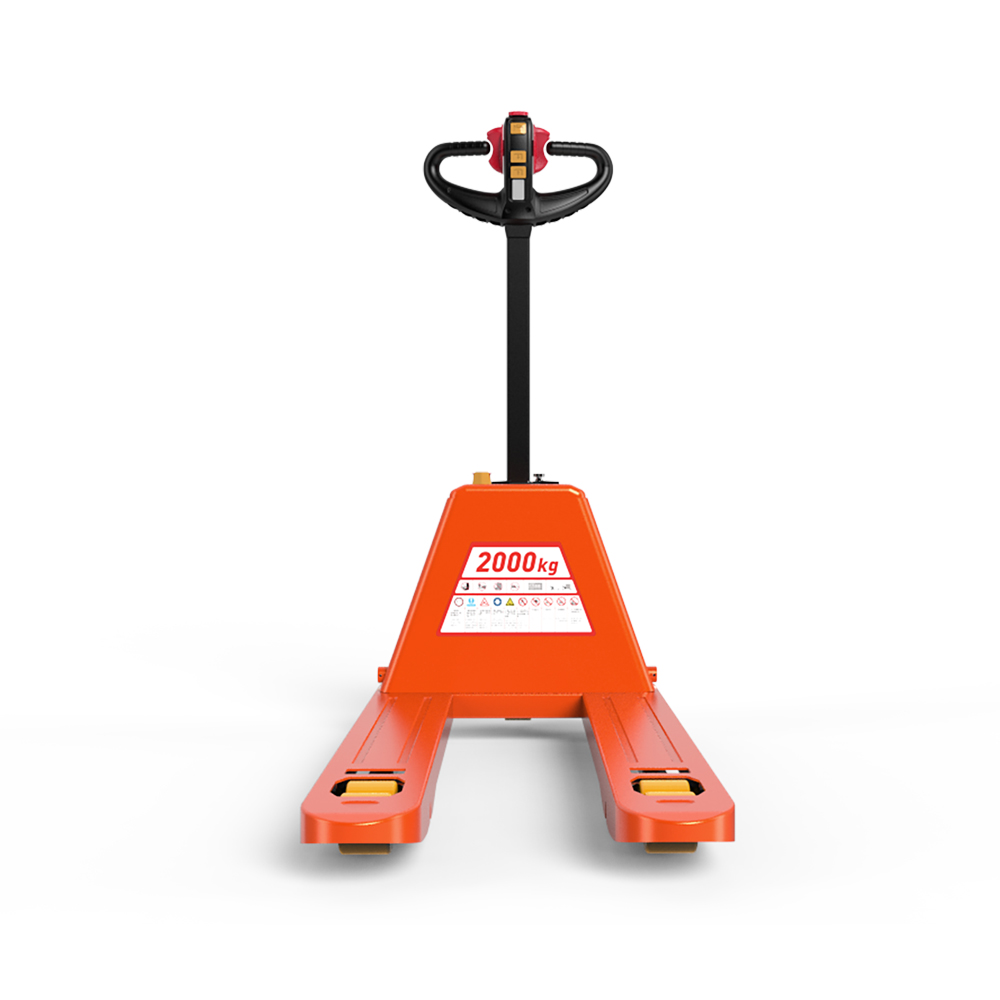

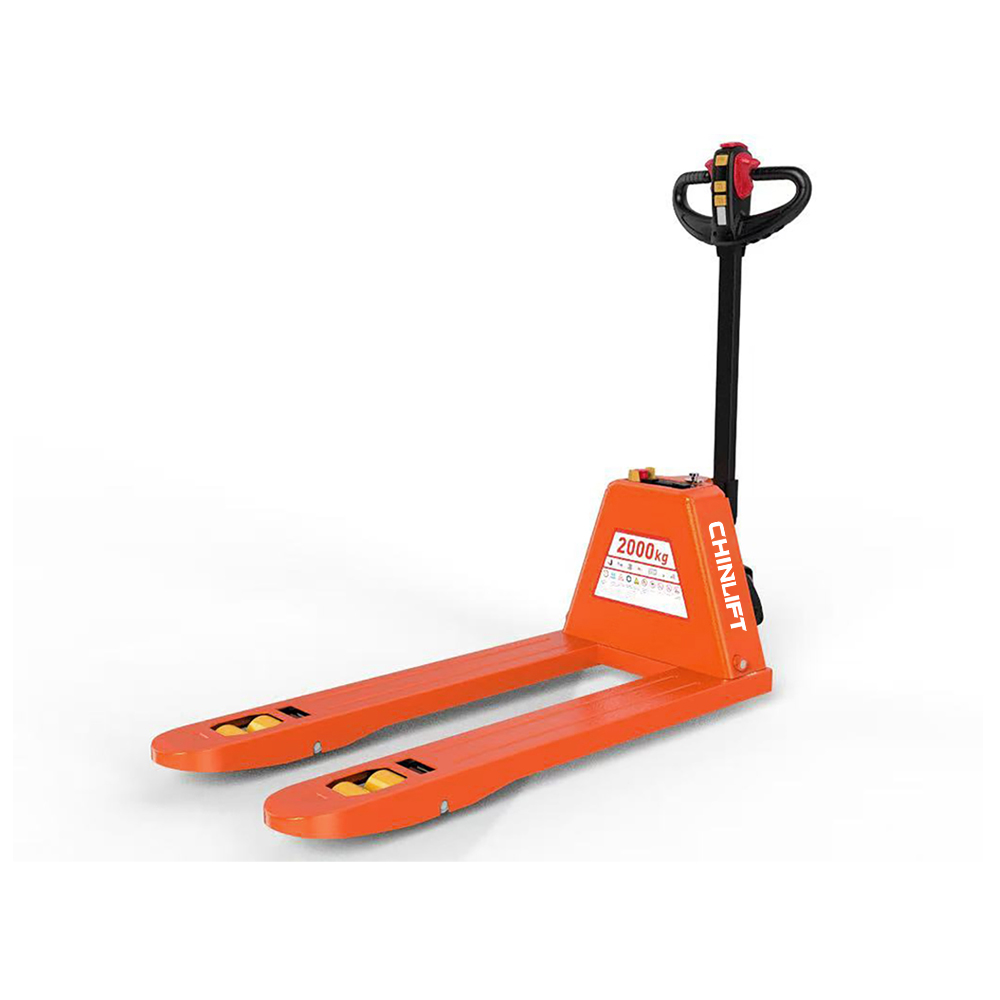

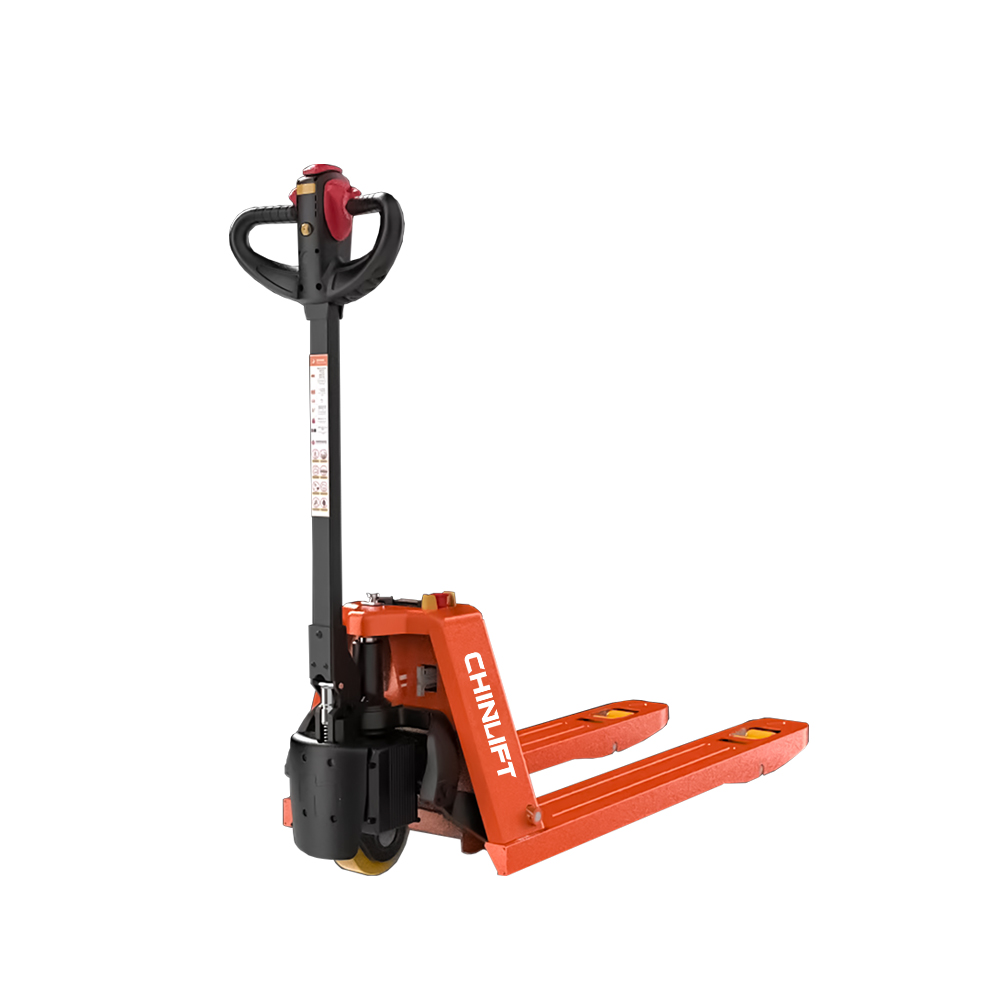

1.5-2T Electric Pallet Truck EPT15/20

The Chinlift 1.5-2T EPT15/20 Electric Pallet Trucks are new choice between the hand pallet truck and the classic electric pallet truck. The EPT15 and EPT20 electric pallet jack are  with compacted chassis, which improved based on hand pallet truck but install with a removable battery and durable driving motor, the truck can be operated with both electric and manual which make it more flexible and useful in the logistic.

  • Model :

    EPT15-20
  • Power Type :

    Electric
  • Load Capacity :

    1500-2000kg
  • Lifting Height :

    115mm
  • Description

1.5-2T Electric Pallet Truck EPT15/20



The Chinlift 1.5-2T electric pallet trucks  are new choice between the hand pallet truck and the classic electric pallet truck. The EPT15 and EPT20 electric pallet jack are  with compacted chassis, which improved based on hand pallet truck but install with a removable battery and durable driving motor, the truck can be operated with both electric and manual which make it more flexible and useful in the logistic.

  • 3 Ton Diesel Counterbalance Forklift



Features:

  • The eletric pallet truck is using 48V power system and maintenance free brushless motors.

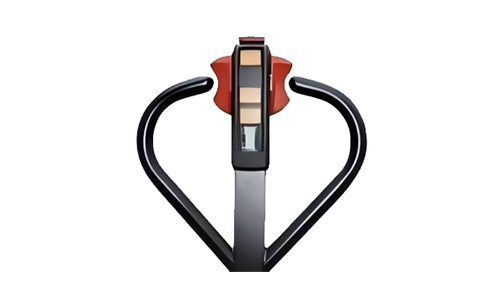

  • The multi-functional smart control handle include accelerator, reversing safety button, lowering release lever and power indicator, it is also has the function of switching the mode to drive when the handle in a upright status.

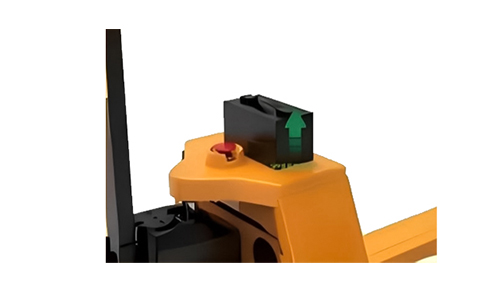

  • Portable Li-ion battery with full discharge capability and the ergonomic design, compacted size and light weight to make it takes only 20 seconds to replace battery.
  • The pallet truck with an integral design of key switch as well as the emergency power-off button which can protect the electrical system, save electric power and ensure the safety when not working.
  • Each pallet truck can equipped with a quick charging system which it takes only 2 hours for charging, it will highly increase the working efficiency for the warehouse with hard works and long working hours.

Technical Specifications (Product Information)



Model EPT15 EPT20
Power type Electric
Work type Walkie style
Rated capacity 1500kg 2000kg
Load center 600mm
Wheel base 1196
Wheel material PU
Numbers of wheel  1/4  1/4
Drive wheel size φ160*55mm
Load wheel size φ80*70mm
Lifting height 115mm
Fork height when lowering ≤83mm
Overall length 1575mm
Overal height 1280mm
Fork outside width 560mm 685mm
Turning radius 1380mm
Drive motor power 48V/0.8kW
Pump motor ppower 48V/0.5kW
System voltage 48V
Battery capacity 10Ah 15Ah
Self weight 110kg 120kg



Customizable Options

Controller

Chinese and Curtis

Li-ion battery

48V/10A and 15A

Balance wheels

Optional

Colors

Customized accepted
