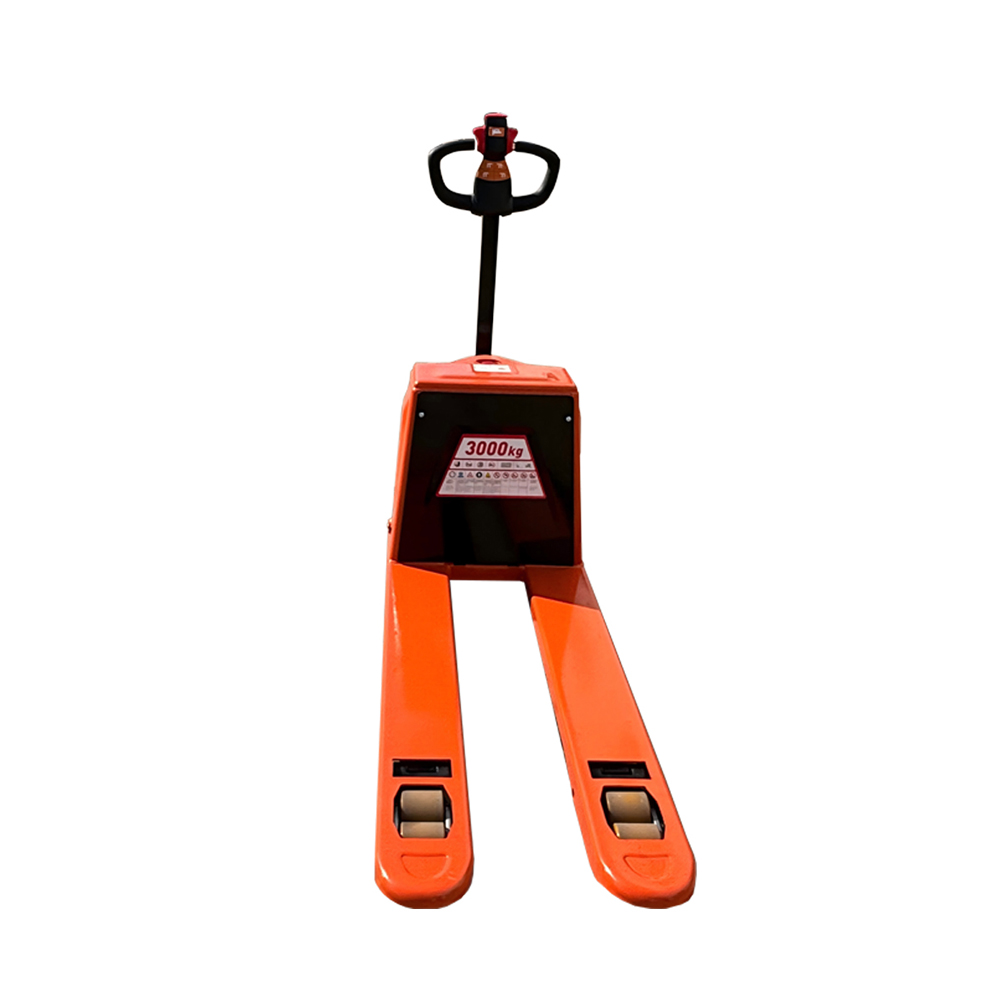

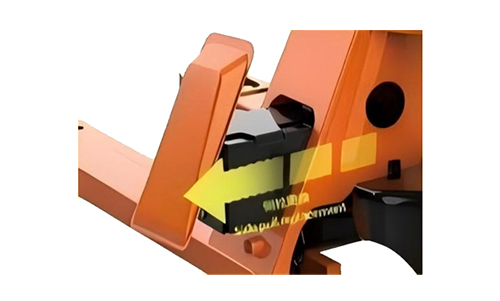

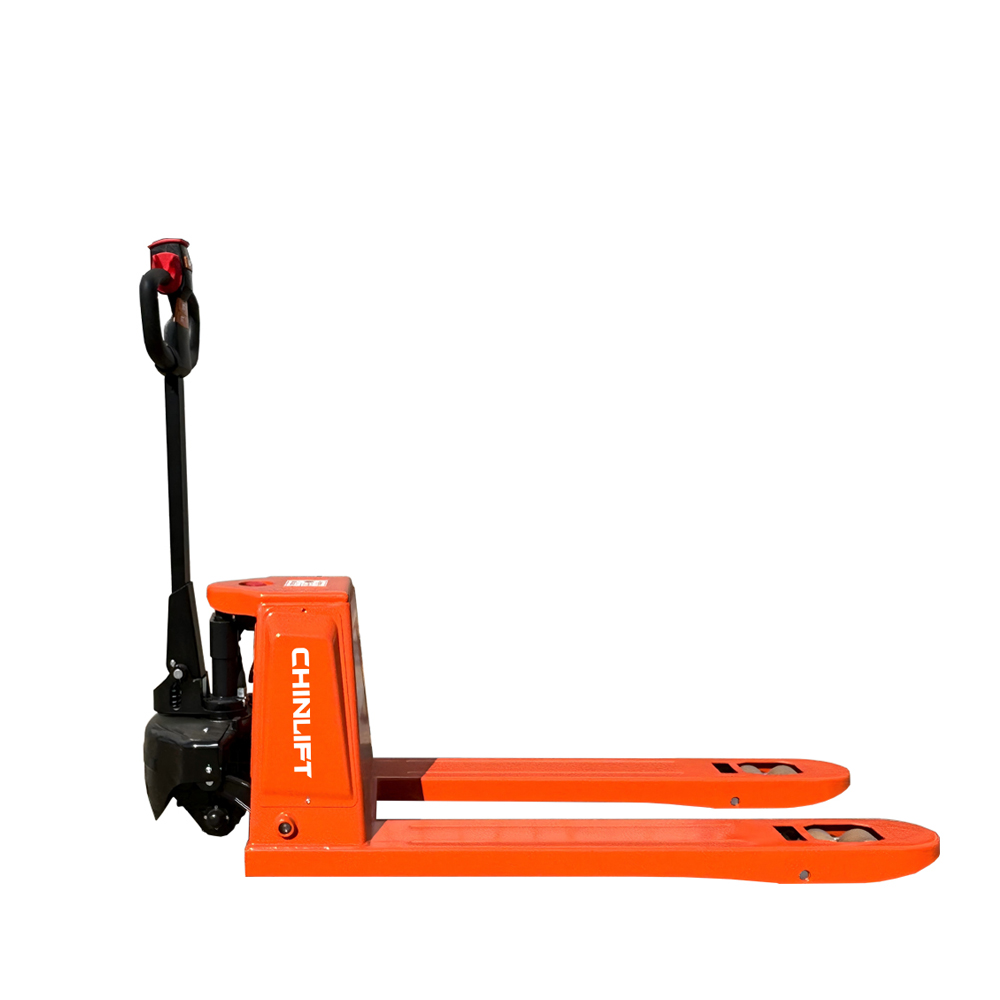

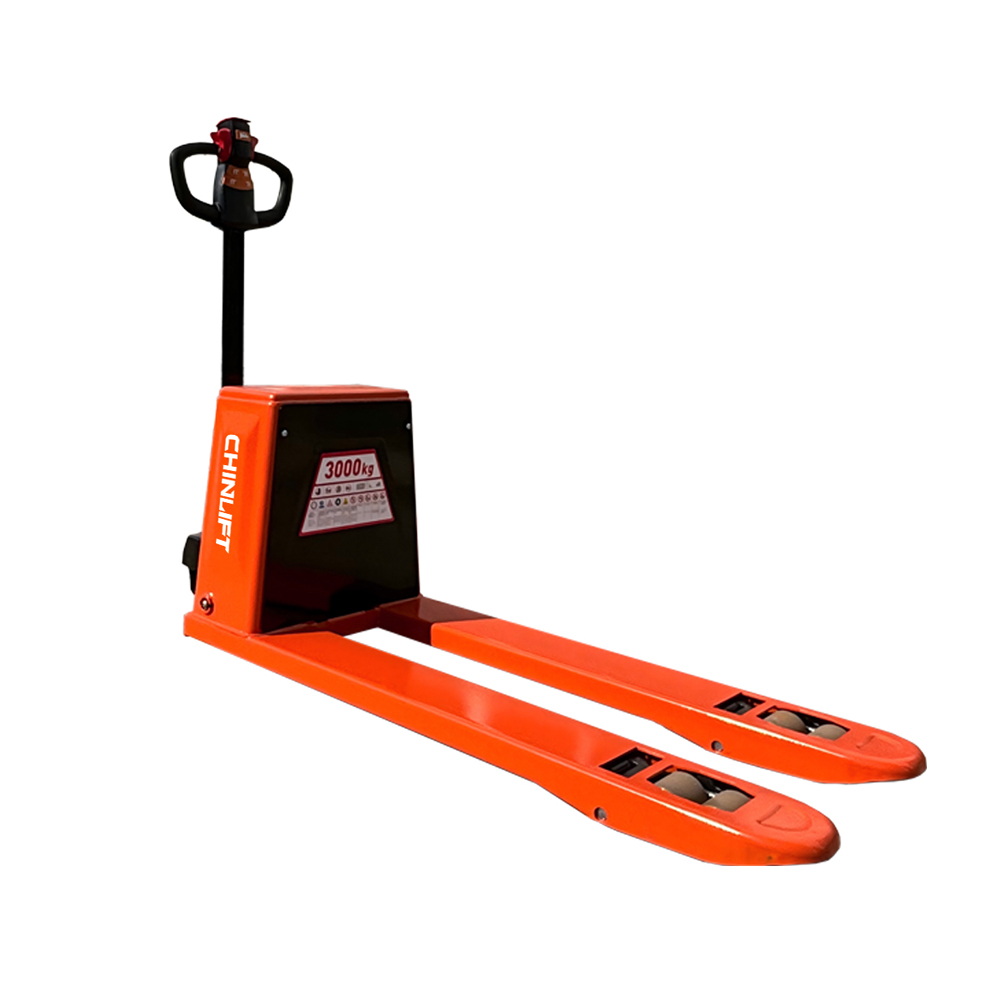

The Chinlift 2T electric pallet truck NPT20 is specially designed with traditional lead-acid battery and with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.
Model :
NPT20Power Type :
ElectricLoad Capacity :
2000kgLifting Height :
105mm2T Electric Pallet Truck NPT20
The Chinlift 2T electric pallet truck NPT20 is specially designed with traditional lead-acid battery and with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.
| Model | NPT20 | ||
| Power type | Electric | ||
| Work type | Walkie style | ||
| Rated capacity | 2000kg | ||
| Load center | 500mm | ||
| Wheel base | 1307 | ||
| Wheel material | PU | ||
| Numbers of wheel | 1/4 | ||
| Drive wheel size | φ160*55mm | ||
| Load wheel size | φ80*70mm | ||
| Lifting height | 105mm | ||
| Fork height when lowering | 80+/-2mm | ||
| Overall length | 1620mm | ||
| Overal height | 1280mm | ||
| Fork outside width | 560mm | 685mm | |
| Turning radius | 1480mm | 1480mm | |
| Drive motor power | DC 48V/1kW Brushless | ||
| Pump motor ppower | DC 48V/0.8kW | ||
| System voltage | 48V | ||
| Battery capacity | Standard lead-acid battery | 25Ah | |
| Optional lithium battery | 20Ah/30Ah | ||
| Self weight | 150kg | 155kg | |
Chinese and Curtis
48V/20/30Ah
Optional
Customized accepted
