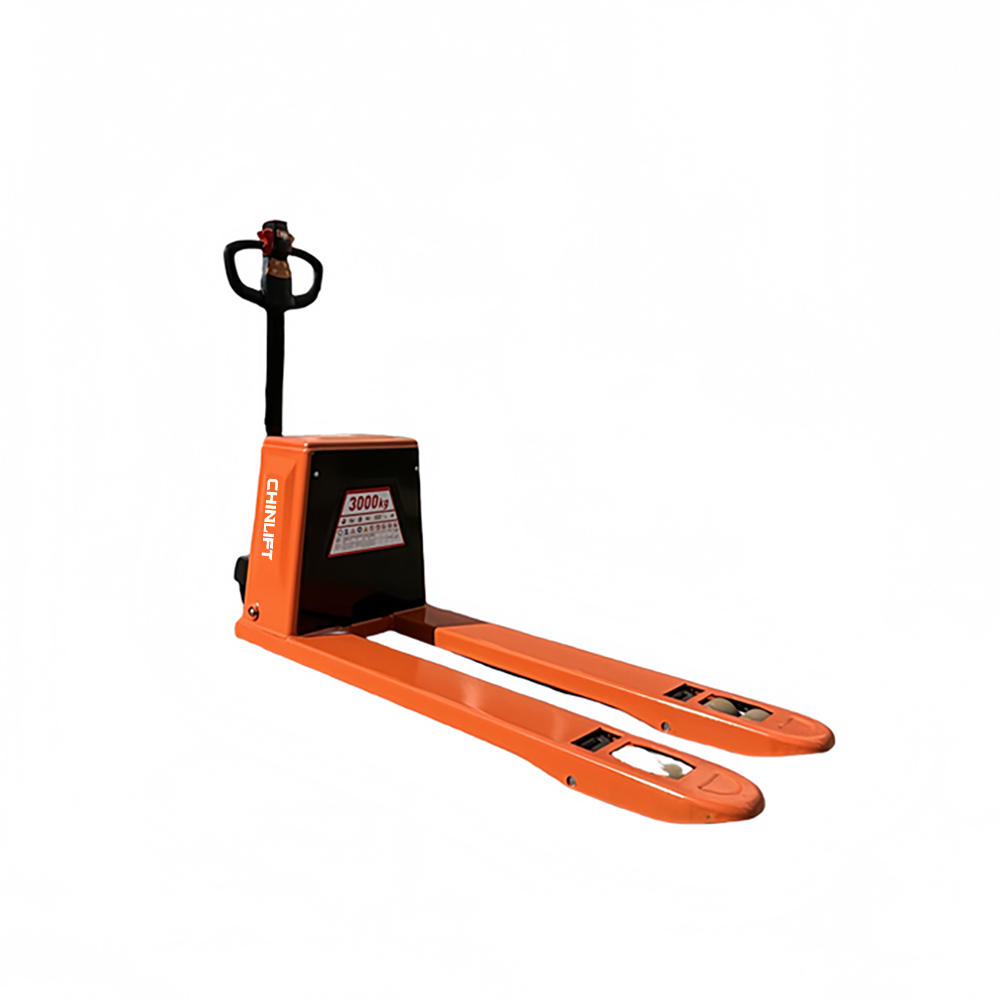

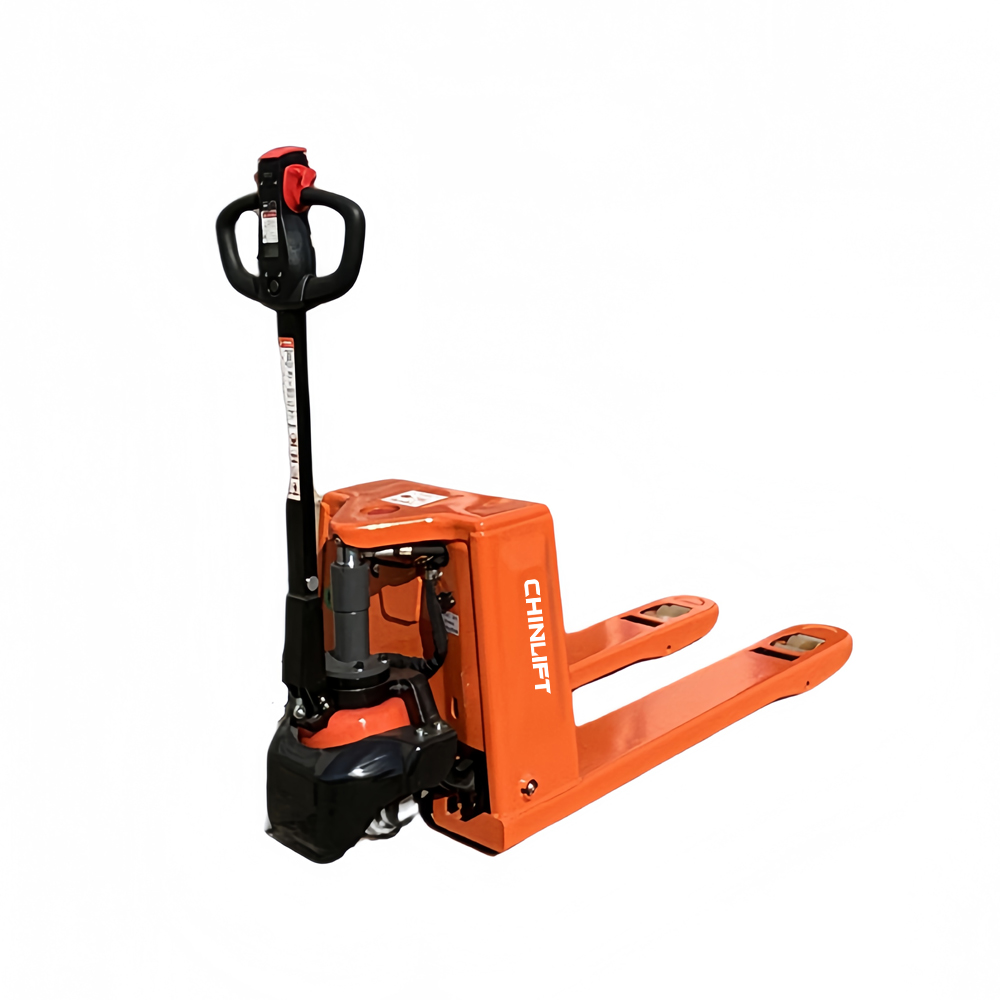

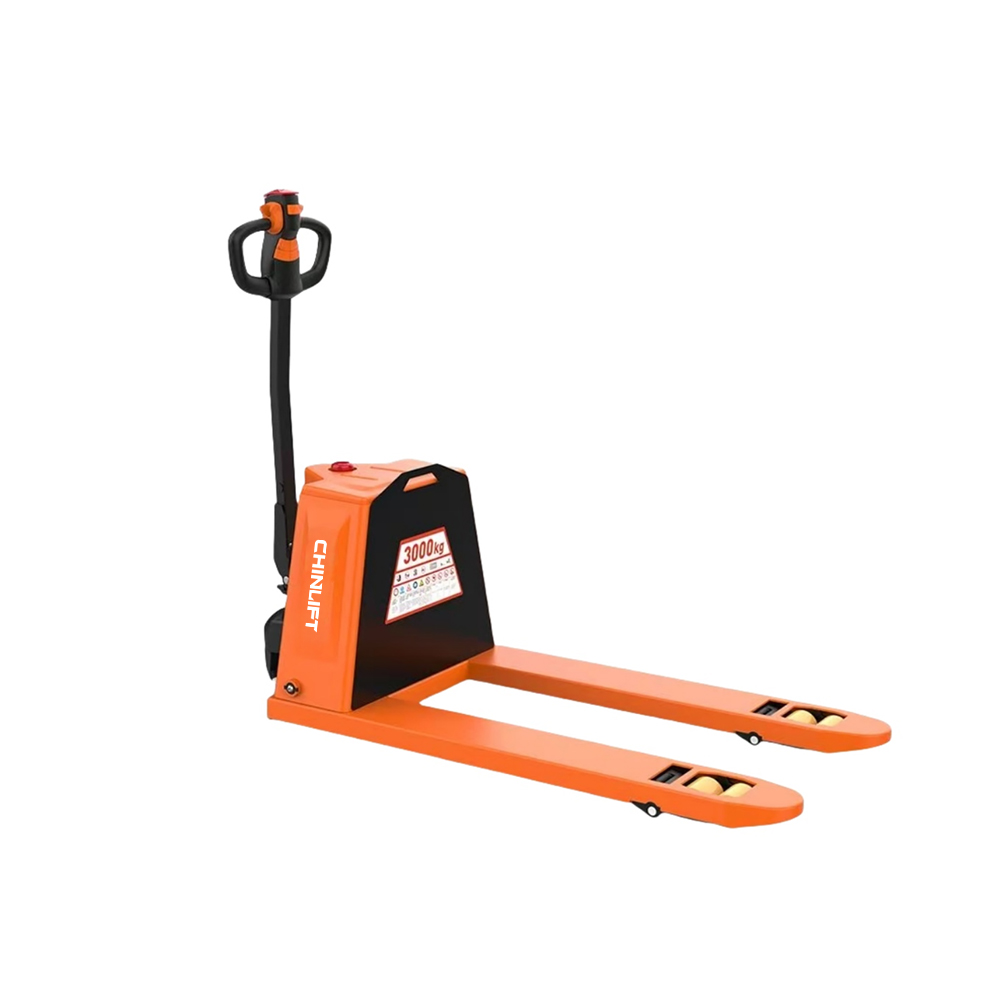

3T Electric Pallet Truck PT30

The Chinlift 3T electric pallet truck PT30 is specially designed with traditional lead-acid battery and  with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with  a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.

  • Model :

    PT30
  • Power Type :

    Electric
  • Load Capacity :

    3000kg
  • Lifting Height :

    105mm
  • Description

3T Electric Pallet Truck PT30



The Chinlift 3T electric pallet truck PT30 is specially designed with traditional lead-acid battery and  with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with  a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.

  • 3 Ton Diesel Counterbalance Forklift



Features:

  • The eletric pallet truck is using 48V power system and maintenance free brushless motors.
  • The pallet truck with light weight and compact size which create excellent maneuverability and pass ability, it can handle most of the applications.
  • Specially designed anti-vibration technology ensures the high working efficiency of the pallet trucks and extends maintenance free battery life.
  • Ergonomic designed tiller head helps increasing the working efficiency.
  • Handy emergency disconnected button and the durable driving unit ensure the safety under any special situation.
  • The structure design of NPT20 pallet truck is very easy for diagnosis and replace.

Technical Specifications (Product Information)

Model PT30
Power type Electric
Work type Walkie style
Rated capacity 3000kg
Load center 500mm
Wheel base 1357
Wheel material PU
Drive wheel size φ210*70mm
Load wheel size φ80*80mm
Lifting height 105mm
Fork height when lowering 80+/-2mm
Overall length 1700mm
Fork outside width 560mm 685mm
Turning radius 1508mm 1508mm
Drive motor power AC 48V/1.2kW
Pump motor ppower DC 48V/0.8kW
System voltage 48V
Battery capacity 标配铅酸电池Standard lead-acid battery 40Ah
Self weight 220kg 225kg

Customizable Options

Controller

Chinese and Curtis

Li-ion battery

48V/20/30Ah

Balance wheels

Optional

Colors

Customized accepted
