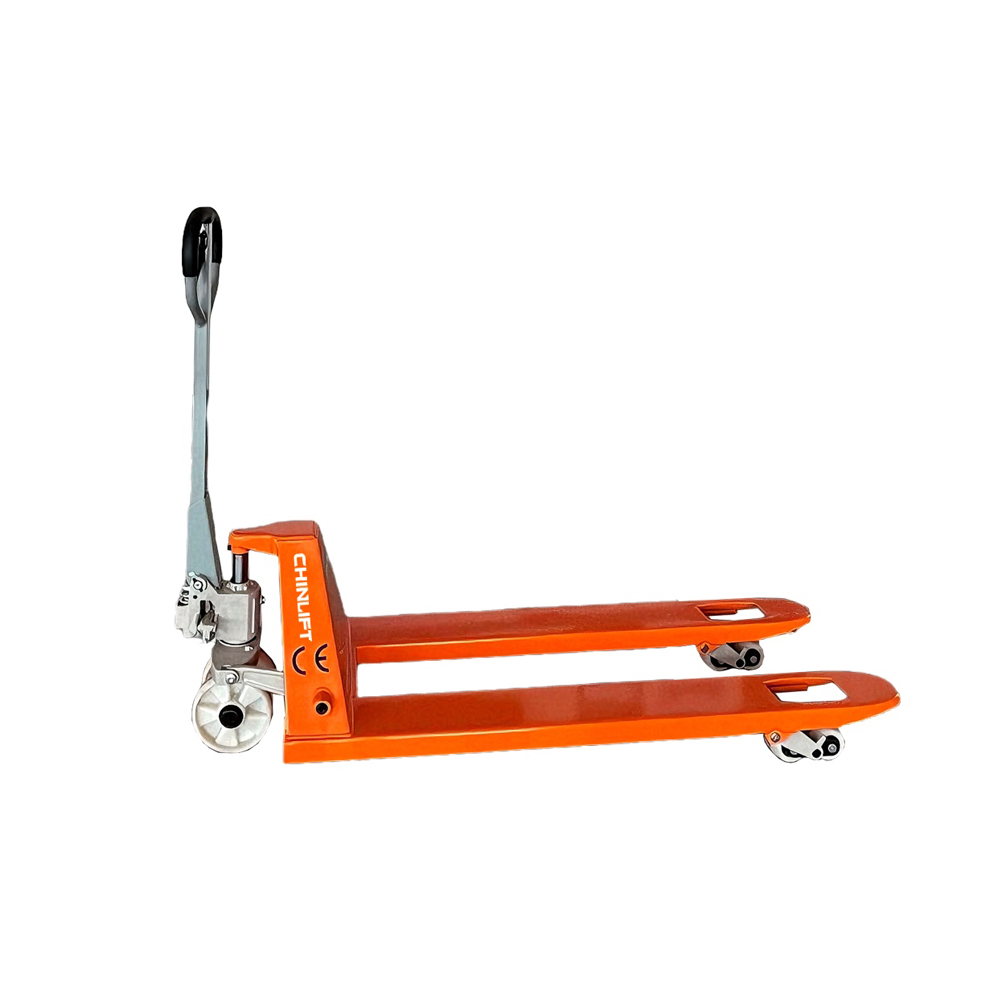

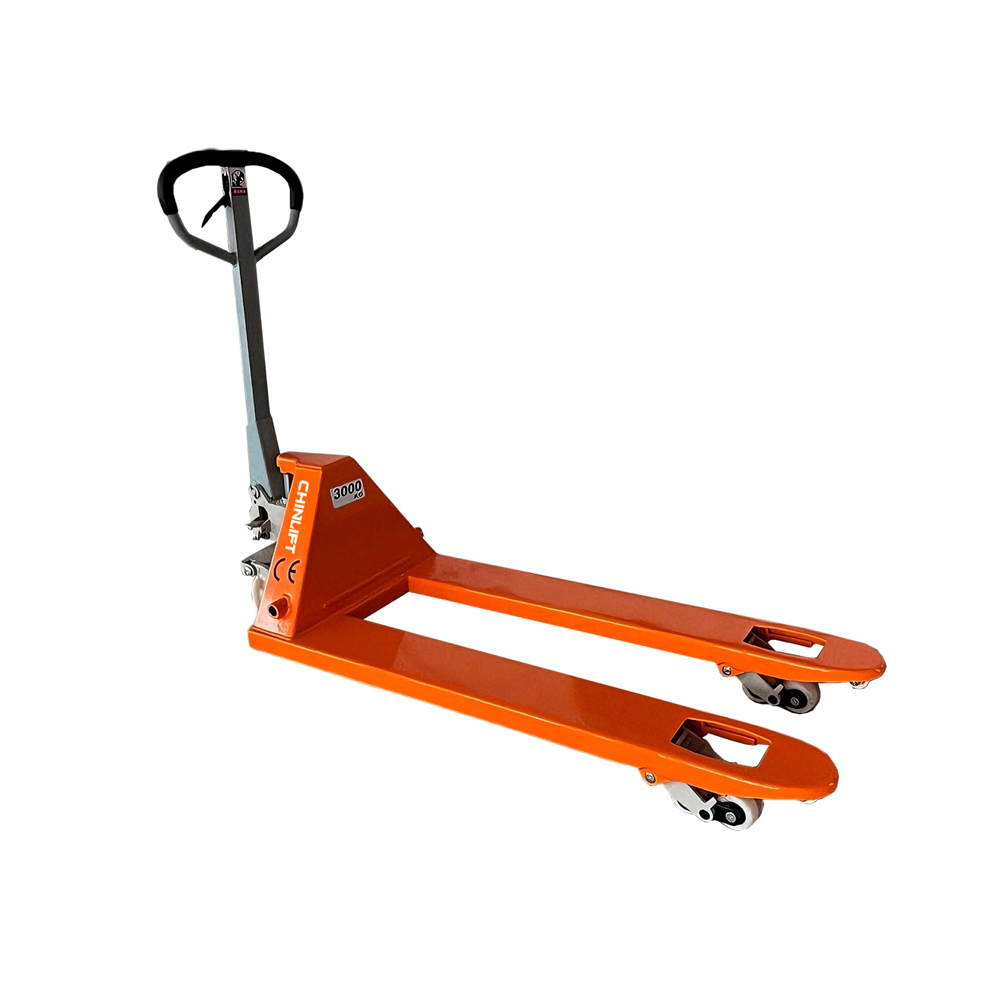

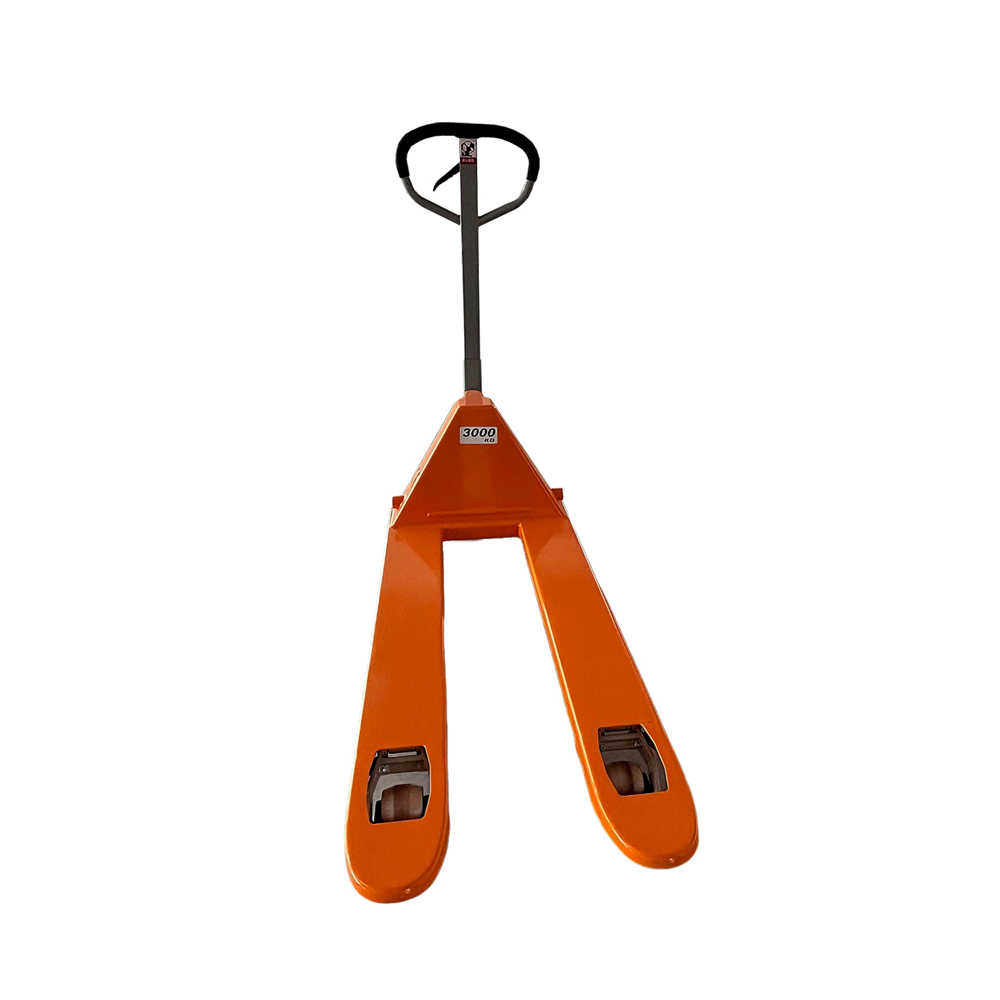

2-3T Hand Pallet Truck CBYC1/2

Chinlift 2-3T Hand Pallet Trucks CBYC1/2 are simple devices that make it possible to transport one or more pallets without the use of a forklift or other heavy equipment. The hand pallet truck is relatively small in design, and makes it possible to slide a set of blades into to the open area of a pallet, gently lift it, and transport the pallet to a different location.

  • Model :

    CBYC2/1
  • Power Type :

    Manual
  • Load Capacity :

    2000-3000kg
  • Lifting Height :

    195mm
  • Description

2-3T Hand Pallet Truck CBYC1/2



The Chinlift 2-3T hand pallet truck  is simple devices that make it possible to transport one or more pallets without the use of a forklift or other heavy equipment. The hand pallet truck is relatively small in design, and makes it possible to slide a set of blades into to the open area of a pallet, gently lift it, and transport the pallet to a different location.

  • 3 Ton Diesel Counterbalance Forklift



Features:

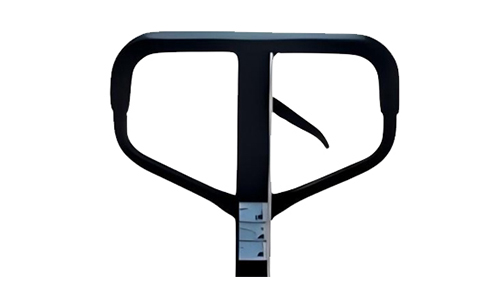

  • Comfortable rubber handle designed in accordance with ergonomics, ensure maximal safety and comfort
  • The forks adopts a processing technology of integral stamping, and the surface of the goods is electrostatically sprayed, which is resistant to damage and not east to decolor, the width and length are available for selection

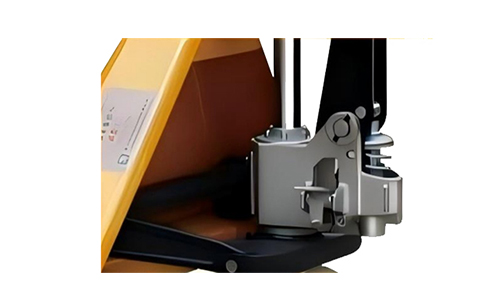

  • The oil pump is available in both integral sealed and welded types,with chrome plated piston rod of different sizes and a sturdy stucture.
  • The decent speed is controlled and the valve core is made of integral parts for easy maintenance.

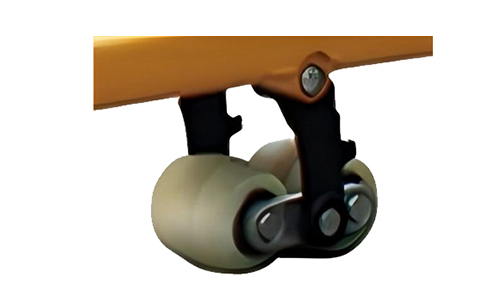

  • There are various types of wheels for options, including nylon and PU wheels.

Technical Specifications (Product Information)

Model CBYC2 CBYC2 CBYC1
Power type Manual
Rated capacity 2000kg 2500kg 3000kg
Min. fork height 83mm
Max. fork height 195mm
Steer wheel φ180*50 Nylon / Polyurethane mm
Load wheel φ78*70 Nylon / φ74*70 Polyurethane mm
Fork outside width 550/685mm
Fork length 1150/1220mm
Net weight 70-85kg

Customizable Options

Wheels

Nylon or PU wheels

Fork length

Customized accepted

Galvanized painting

Customzied accepted

Scales system

Customized accepted
