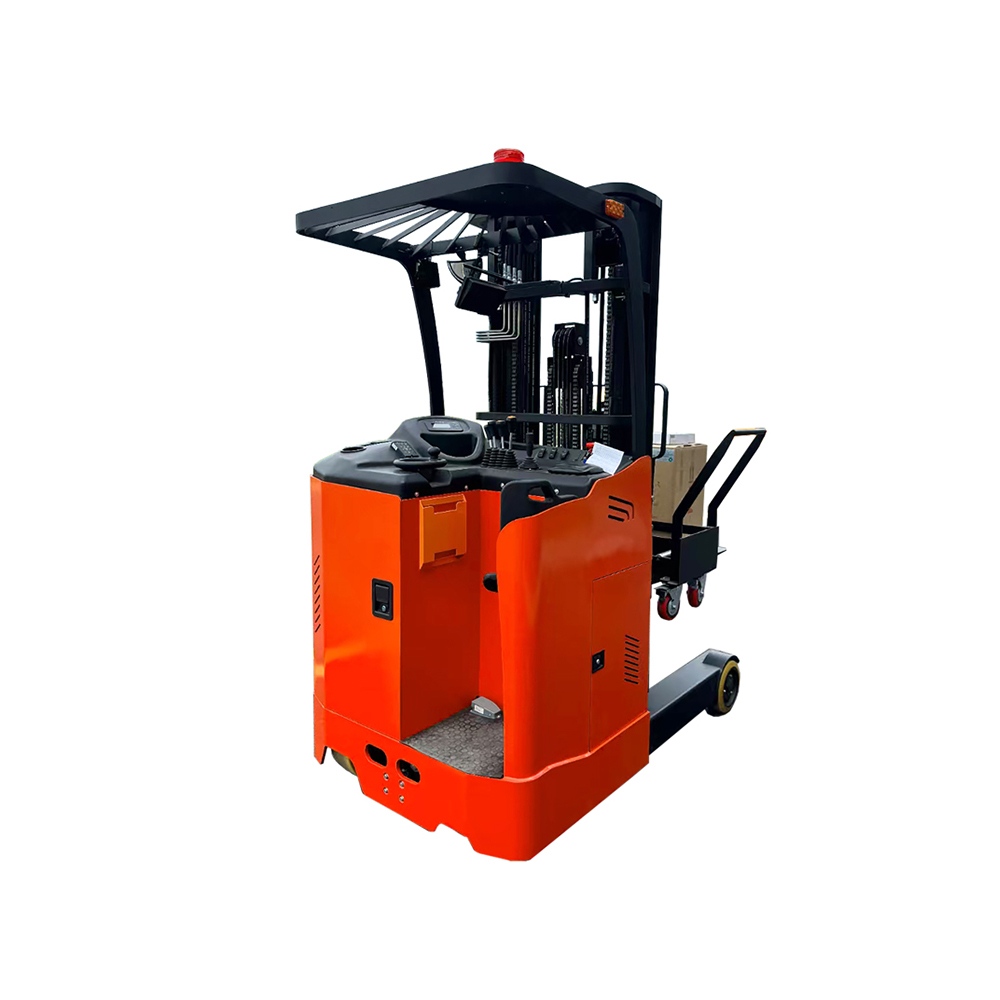

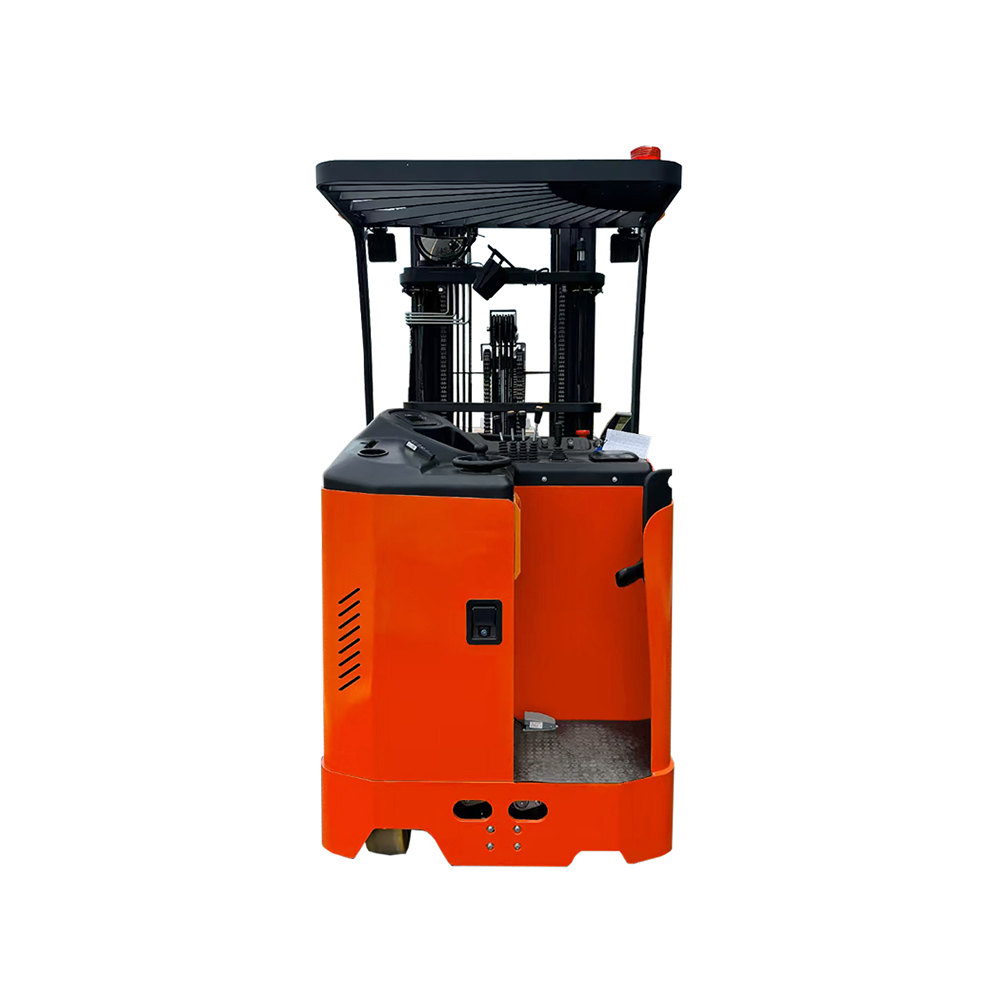

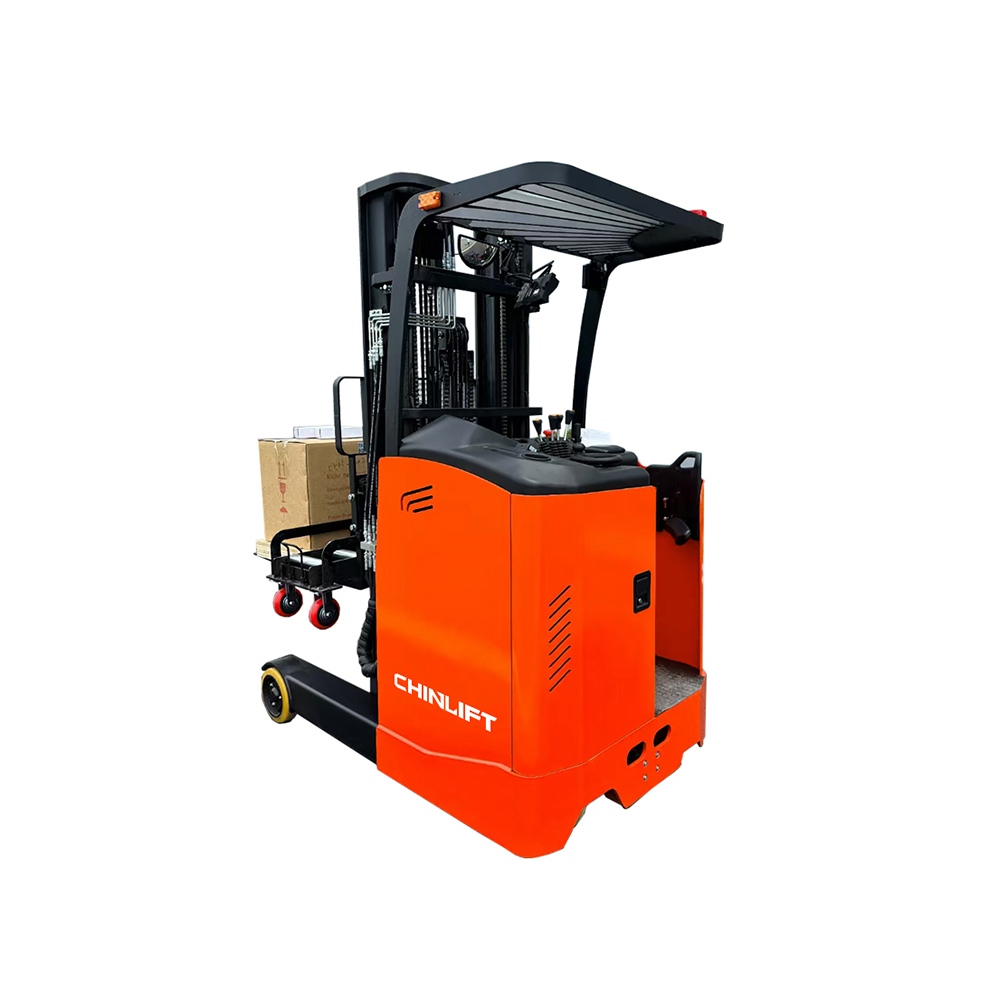

Electric stand on reach truck CQD15/20

The Chinlift has launched a new type of stand on reach truck -CQD15/20 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Model :

    CQD15/20
  • Power Type :

    Electric
  • Load Capacity :

    1500-2000kg
  • Lifting Height :

    3300-8000mm
  • Description

Electric Stand On Reach Truck CQD15/20



The Chinlift has launched a new type of stand on reach truck -CQD15/20 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • 3 Ton Diesel Counterbalance Forklift



Features:

  • Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios.
  • lt features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-Iimited scenarios, easy loading or unloading goods.
  • Equipped with fu II AC drive system, small volume, light weight,high efficiency, free-maintenance and carb on-bru sh replacement. No more maintenance and protection;
  • Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.
  • Side-pull battery suits multi-shifing occasions, with standard roller trolley for easy change;
  • 6.5m or above high-strength H type mast steel, not easy to deform, it's reliable and stable operation.

Technical Specifications (Product Information)

Model CQD15-45S CQD20-45S
Power type Electric
Work type Stand on style
Rated capacity 1500kg 2000kg
Load center 500mm
Wheel base 1383mm 1533mm
Mast lifting height 4500mm
Mast extended height 5480mm
Mast lowered height 2100mm
Free lift height 1500mm
Overhead guard height 2305/2260mm 2305/2260mm
Fork tilting angle Front/Rear 3/5°
Overall length (with fork) 2405mm
Overall width 1195mm
Fork size 35/100/1070mm 40/122/1070mm
Min. ground clearance 80mm 80mm
Aisle Width for Pallet 1000*1200 crossways 2730mm 2882mm
Min. turning radius 1680mm 1836mm
Max.gradeability ≤10%
Service brake Electromagnetic Electromagnetic
Battery capacity 48V300Ah 48V400Ah
Drive motor 4.5kW AC 6.5kW AC
Lifting motor 7.5kW AC 8.6kW AC
Self weight 2850kg 3025kg

Customizable Options

Camera

Optional

Li-ion battery

Optional

Side shift

Optional

Colors

Customized accepted
