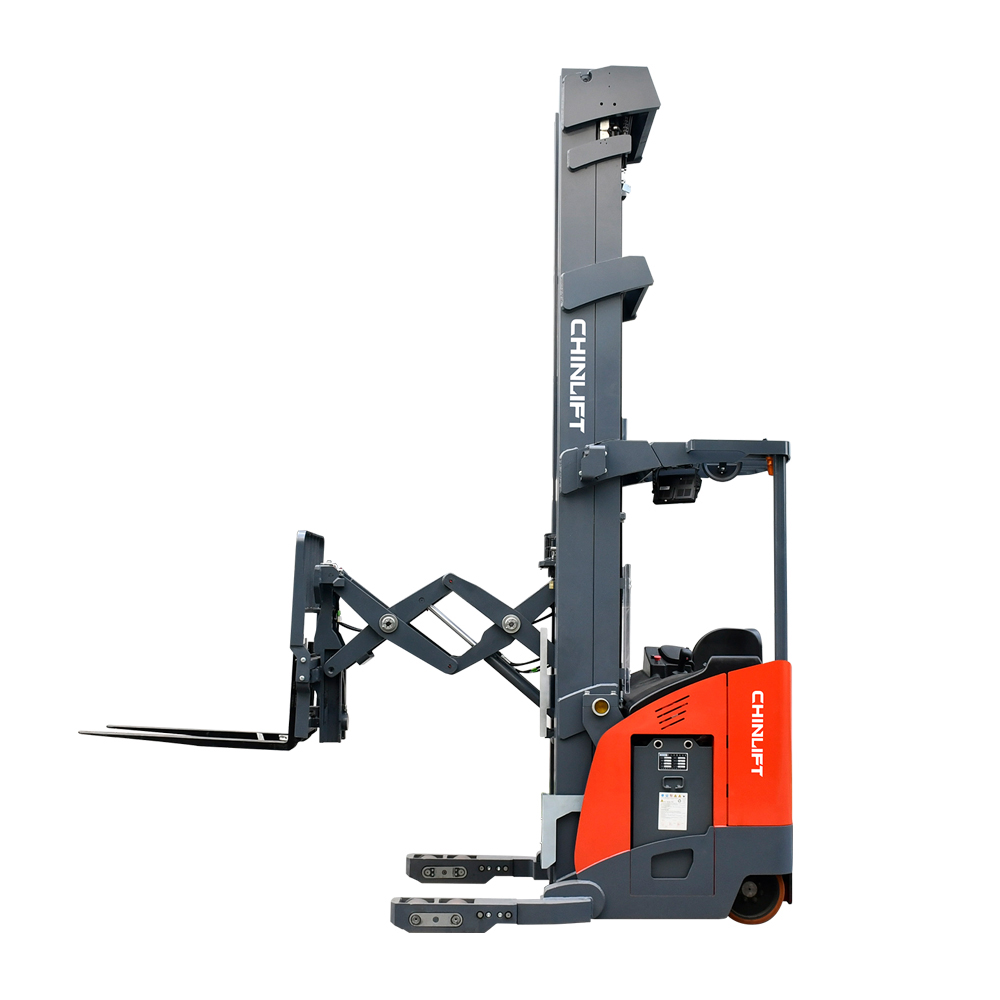

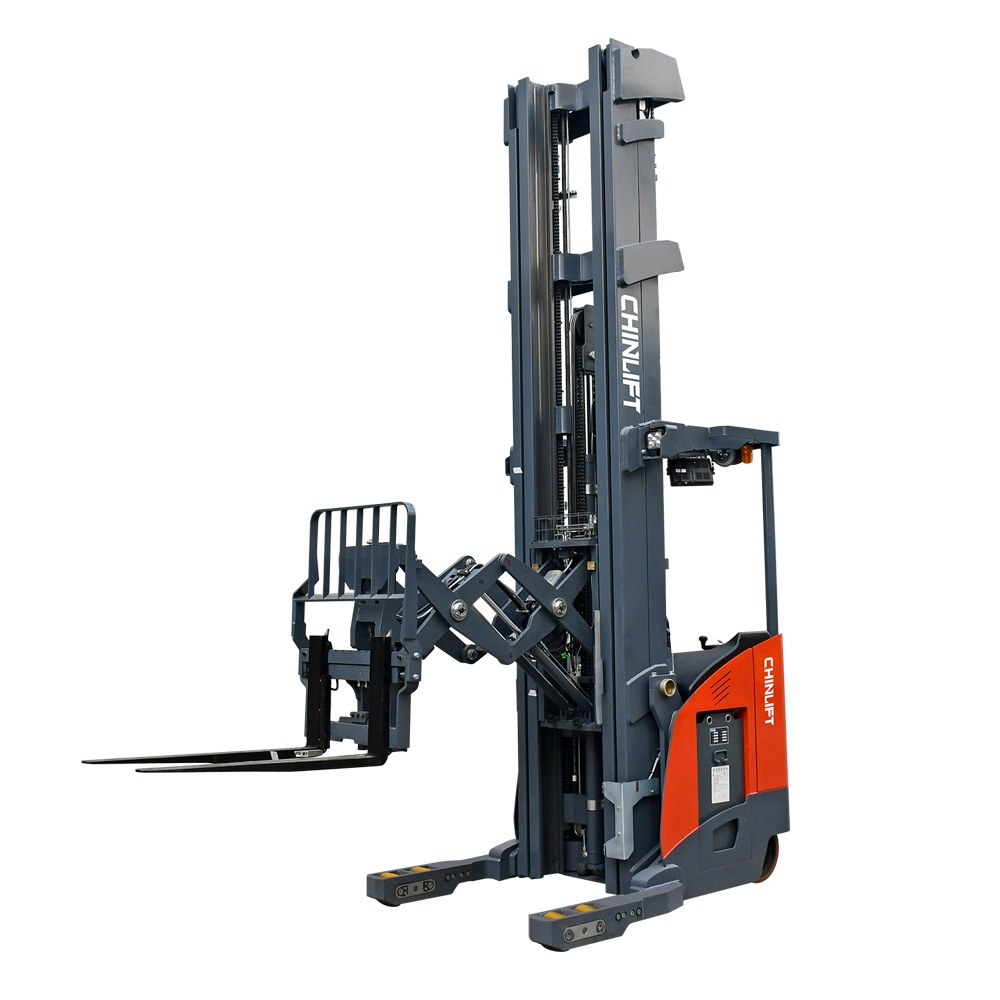

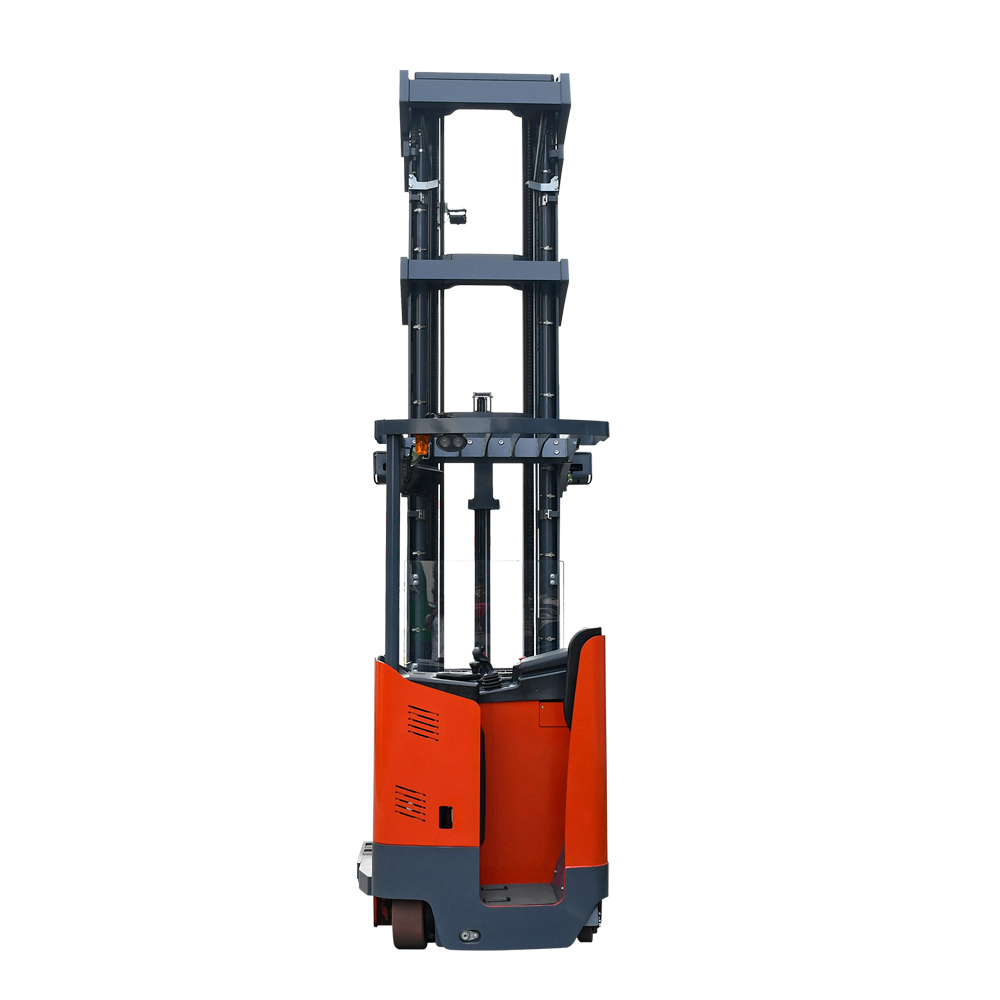

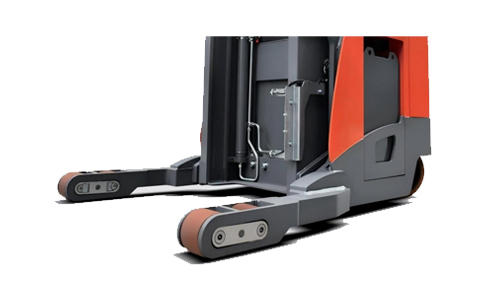

Scissor Reacd Truck MFE14/20

The Chinlift has launched a new type of scissor reacd truck-MFE14/20 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Model :

    MFE14/20
  • Power Type :

    Electric
  • Load Capacity :

    1400-2000kg
  • Lifting Height :

    5000-10000mm
  • Description

Scissor Reacd Truck MFE14/20



The Chinlift has launched a new type of scissor reacd truck-MFE14/20 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • 3 Ton Diesel Counterbalance Forklift



Features:

  • Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios.
  • lt features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-Iimited scenarios, easy loading or unloading goods.

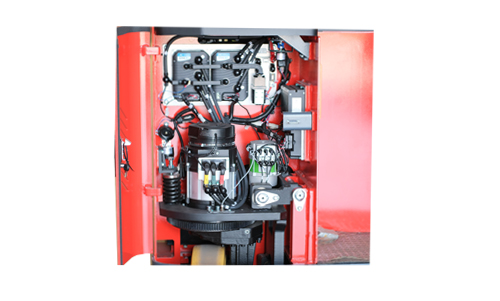

  • Equipped with fu II AC drive system, small volume, light weight,high efficiency, free-maintenance and carb on-bru sh replacement. No more maintenance and protection;
  • Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.

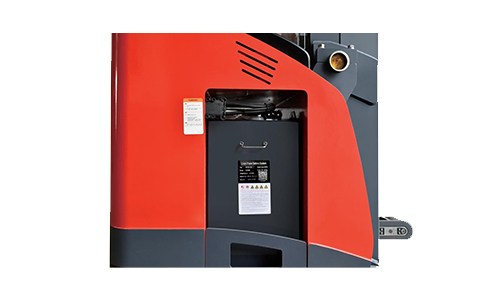

  • Side-pull battery suits multi-shifing occasions, with standard roller trolley for easy change;
  • 6.5m or above high-strength H type mast steel, not easy to deform, it's reliable and stable operation.

Technical Specifications (Product Information)



Model MFE14 MFE20
Power type Electric
Work type Stand-on style
Rated capacity 1400kg 2000kg
Load center 600mm
Overall length 2585mm 2515mm
Overall width 1080/1364mm 1080/1364mm
Reach distance 1080mm 600mm
Travel Speed,laden/unladen 10/10km/h
Lift Speed,laden/unladen 400/500 mm/s
Lowering Speed,laden/unladen 550/500 mm/s 500/480 mm/s
Fork Dimensions 1070/100/40mm
Spread Fork Outsize 342-702mm
Turning Radius 1815mm 1738mm
Aisle Width with Pallet 800*1200 3000mm 2932mm
Aisle Width with Pallet 1000*1200 3045mm 2976mm
Battery capacity 48V550Ah
Drive motor 5.8kW AC
Lifting motor 14kW AC
Battery weight 820kg

Customizable Options

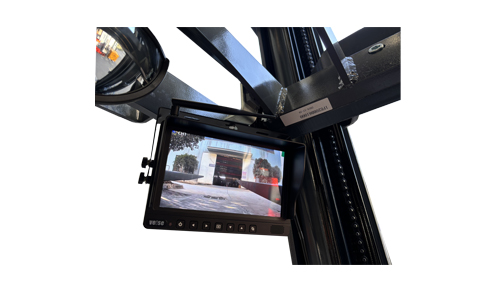

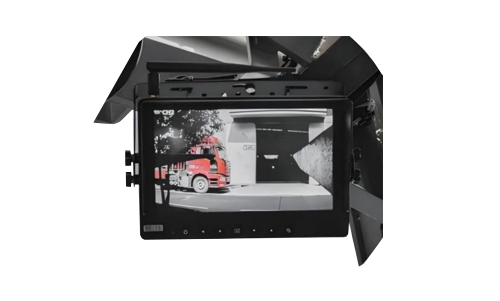

Camera

Optional

Li-ion battery

Optional

Side shift

Optional

Colors

Customized accepted
