Articulated Forklift NA15-30

The Chinlift has launched a new type of Articulated Forklift NA15-30 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Model :

    NA15-30
  • Power Type :

    Electric
  • Load Capacity :

    1500/2000/2500/3000kg
  • Lifting Height :

    4300-15000mm
  • Description

Articulated Forklift NA15-30



The Chinlift has launched a new type of Articulated Forklift NA15-30 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Articulated Forklift NA15-30
  • Articulated Forklift NA15-30
  • Articulated Forklift NA15-30



Features:

  • Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios.
  • lt features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-Iimited scenarios, easy loading or unloading goods.

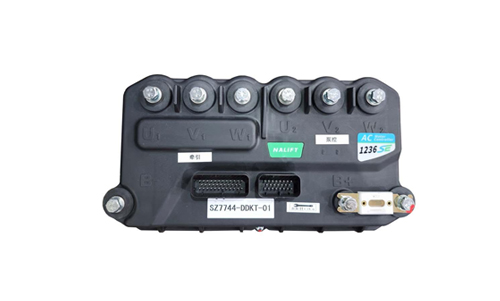

  • Equipped with fu II AC drive system, small volume, light weight,high efficiency, free-maintenance and carb on-bru sh replacement. No more maintenance and protection;
  • Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.
  • Side-pull battery suits multi-shifing occasions, with standard roller trolley for easy change;
  • 6.5m or above high-strength H type mast steel, not easy to deform, it's reliable and stable operation.

Technical Specifications (Product Information)

Model NA15 NA20 NA25 NA30
Power type Electric
Rated capacity 1500kg 2000kg 2500kg 3000kg
Load center 600mm
Overall length 2780mm
Wheel base 1735mm
Free lift 1365-2835mm 1365-3635mm 1365-5986mm
Overhead guard height 2270mm
Fork size 413*178mm
Rear size 457*178mm 457*229mm
Ground clearance 50mm
Min. turning radius 2035mm
Gradeability,laden/unladen 18/20%
Lead-acid capacity 80V400Ah 80V500Ah
Traction motor 19.5kW AC
Lifting motor 15kW AC

Customizable Options

Camera

Optional

Li-ion battery

Optional

Side shift

Optional

Colors

Customized accepted
