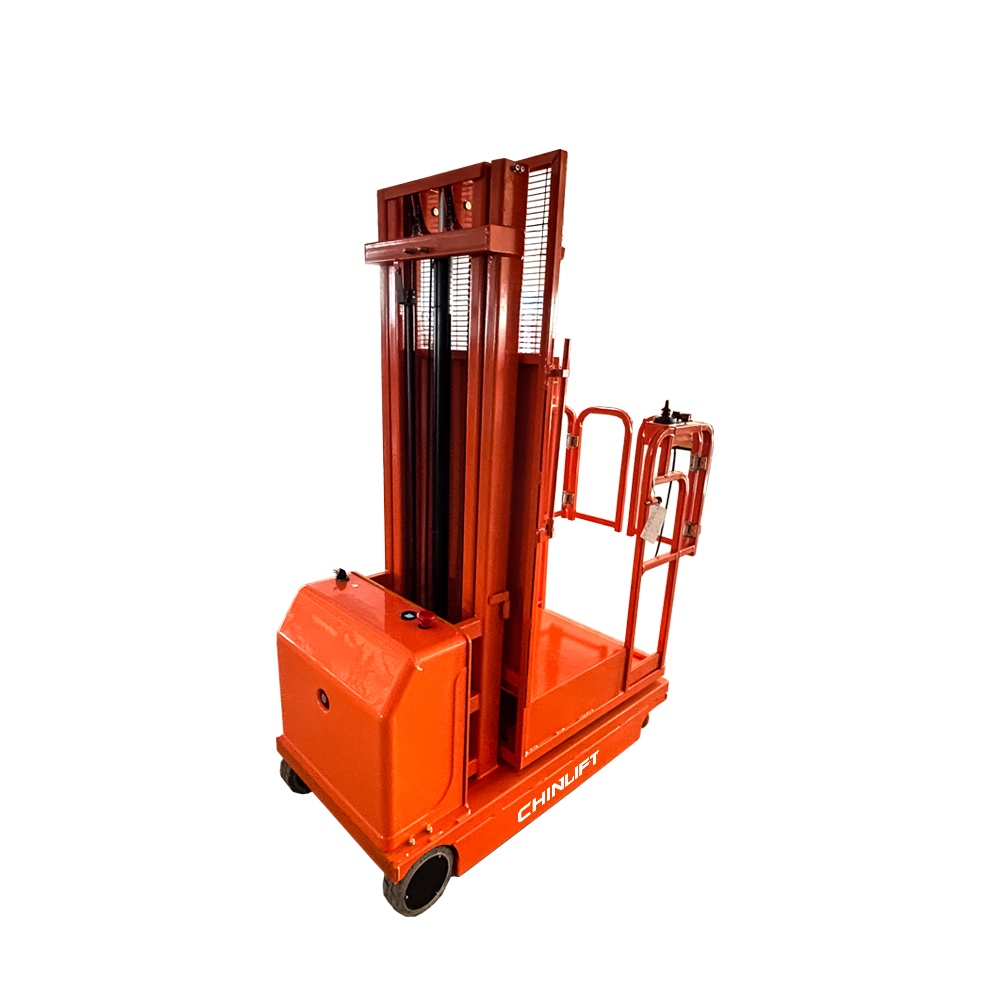

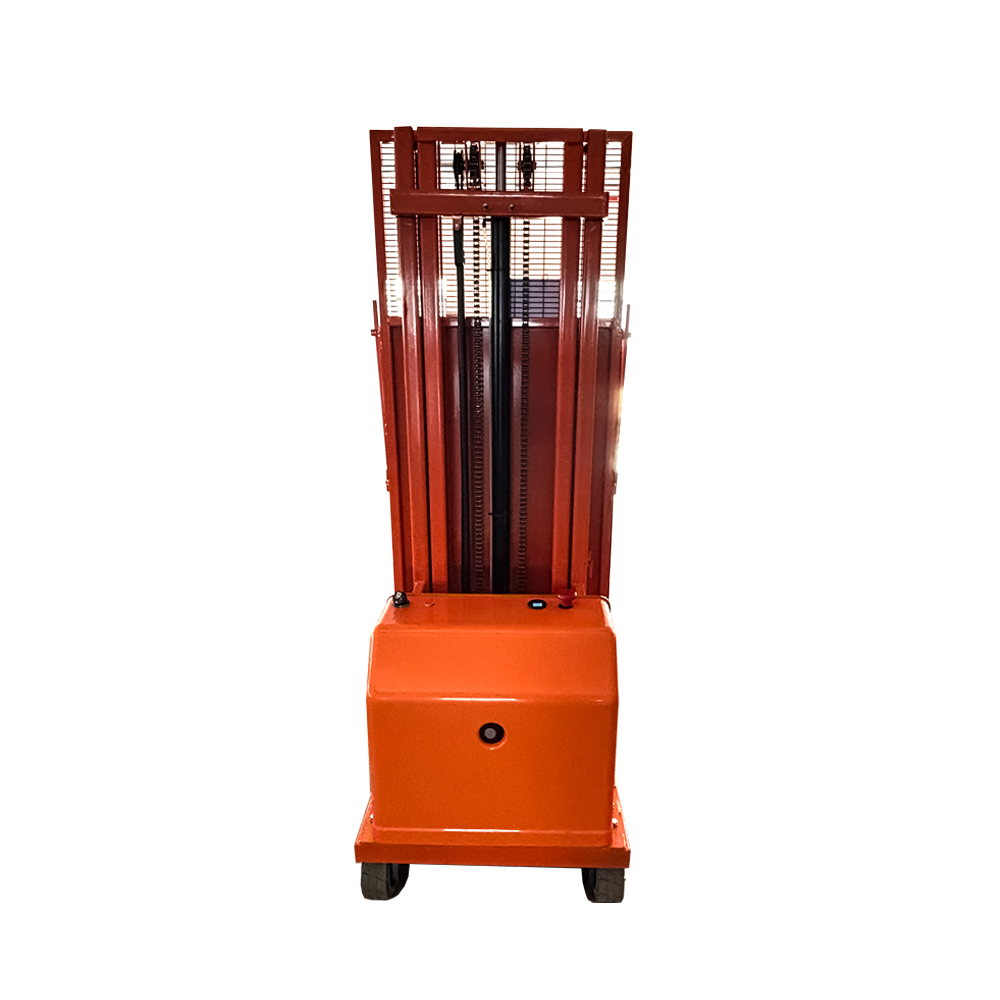

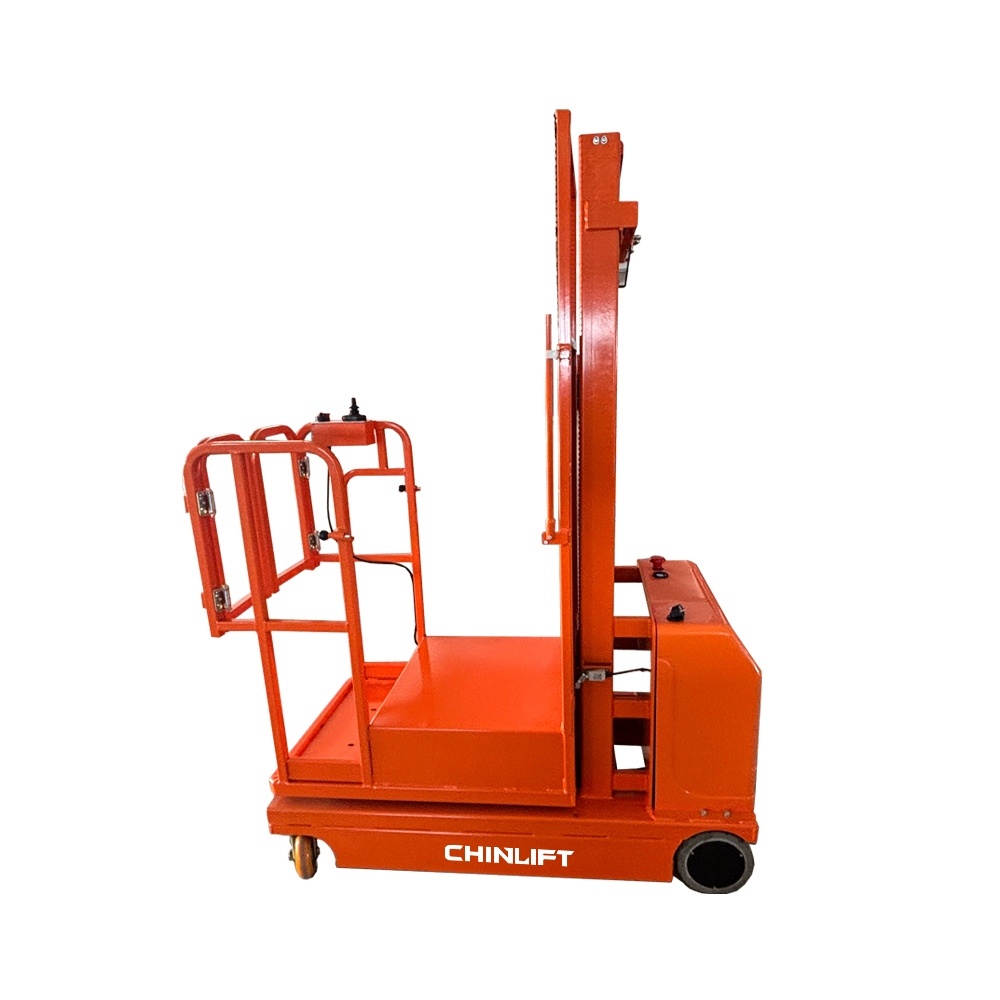

The Chinlift electric order picker is a type of double mast self-propelled aerial work platform that can improve your working efficiency and enhance productivity in the workplace. The compact structure and small size of this vertical mast lift make it easy to set up and pass through narrow aisles and doorways, offering a great convenience to your outdoor or indoor applications such as warehousing, inventory management, transporting, stock-picking etc.
Model :
FESP3Power Type :
ElectricLoad Capacity :
300kgLifting Height :
2700/3300/4000/4500mmElectric Order Picker FESP3
The Chinlift electric order picker is a type of double mast self-propelled aerial work platform that can improve your working efficiency and enhance productivity in the workplace. The compact structure and small size of this vertical mast lift make it easy to set up and pass through narrow aisles and doorways, offering a great convenience to your outdoor or indoor applications such as warehousing, inventory management, transporting, stock-picking etc.
| Model | FSE3-2.7 | FSE3-3.3 | FSE3-4.0 | FSE3-4.5 | |
| Power type | Electric | ||||
| Work type | Stand-on style | ||||
| Rated capacity | 300kg | 300kg | 300kg | 300kg | |
| Max. platform height | 2700mm | 3300mm | 4000mm | 4500mm | |
| Max. working height | 4020mm | 4900mm | 5310mm | 6000mm | |
| Ground clearance | 40mm | ||||
| Work platform size | 600×700mm | ||||
| Min. turning radius | 1600mm | ||||
| Max. climing capacity | 15-20% | ||||
| Drive motor | 2×24V/0.4kW | ||||
| Lifting motor | 2×12V/1.6kW | ||||
| Battery capacity | 2×12V/100Ah | ||||
| Overall length | 1620mm | ||||
| Overall width | 760mm | ||||
| Overal height | 1830mm | 2130mm | 1840mm | 2000mm | |
| Self weight | 430kg | 450kg | 660kg | 680kg | |
Optional
Optional
Optional
Customized accepted
