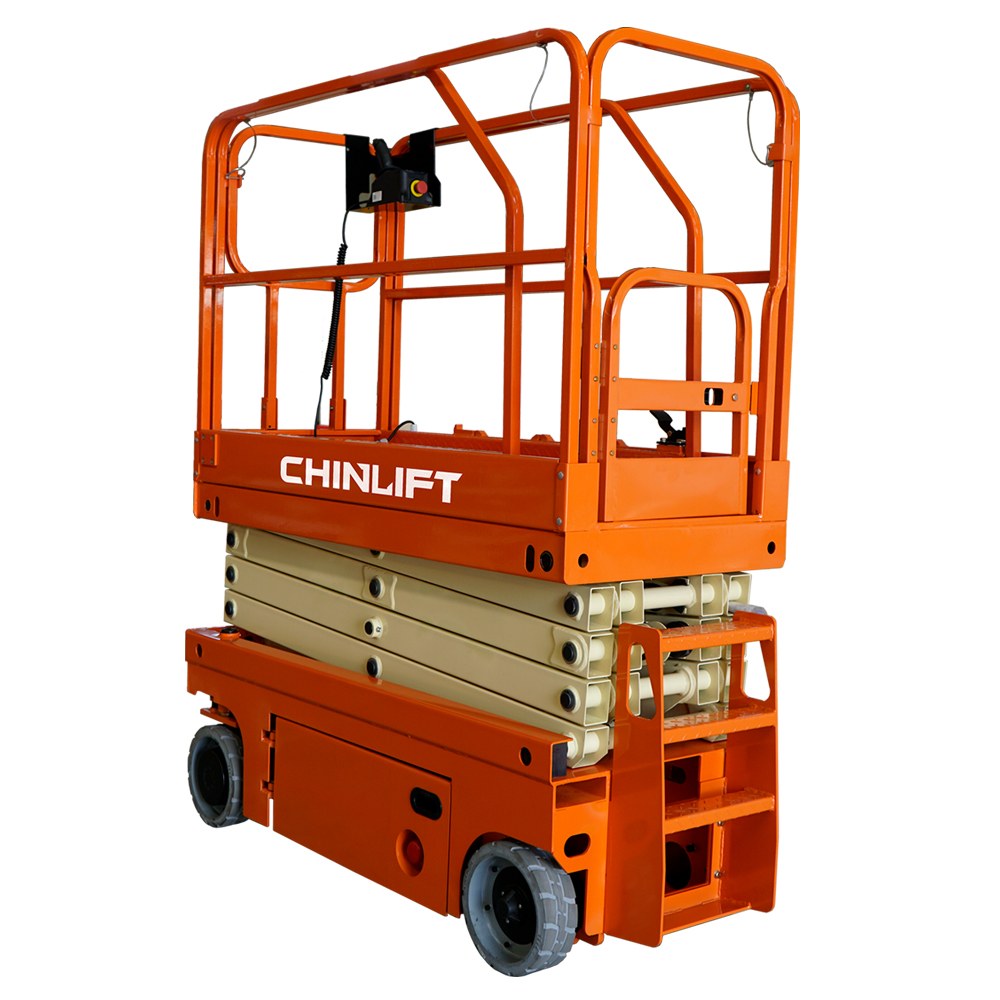

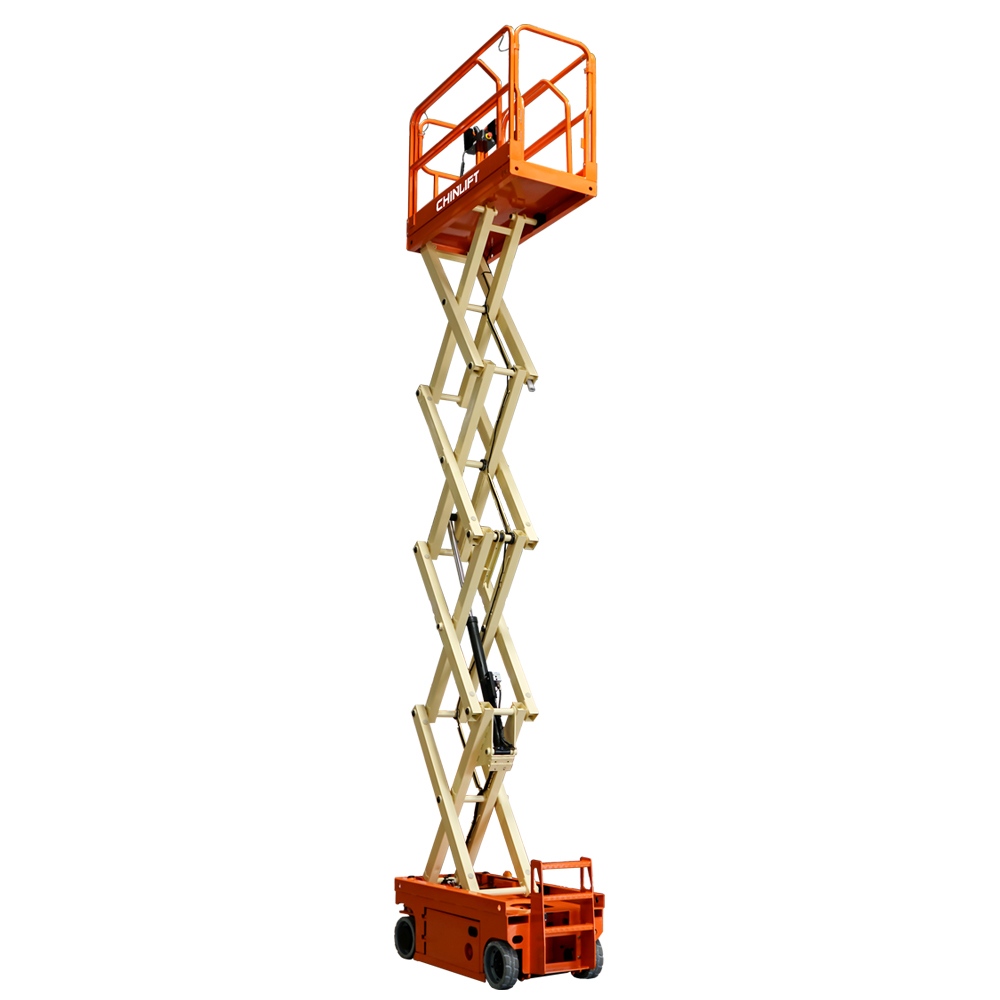

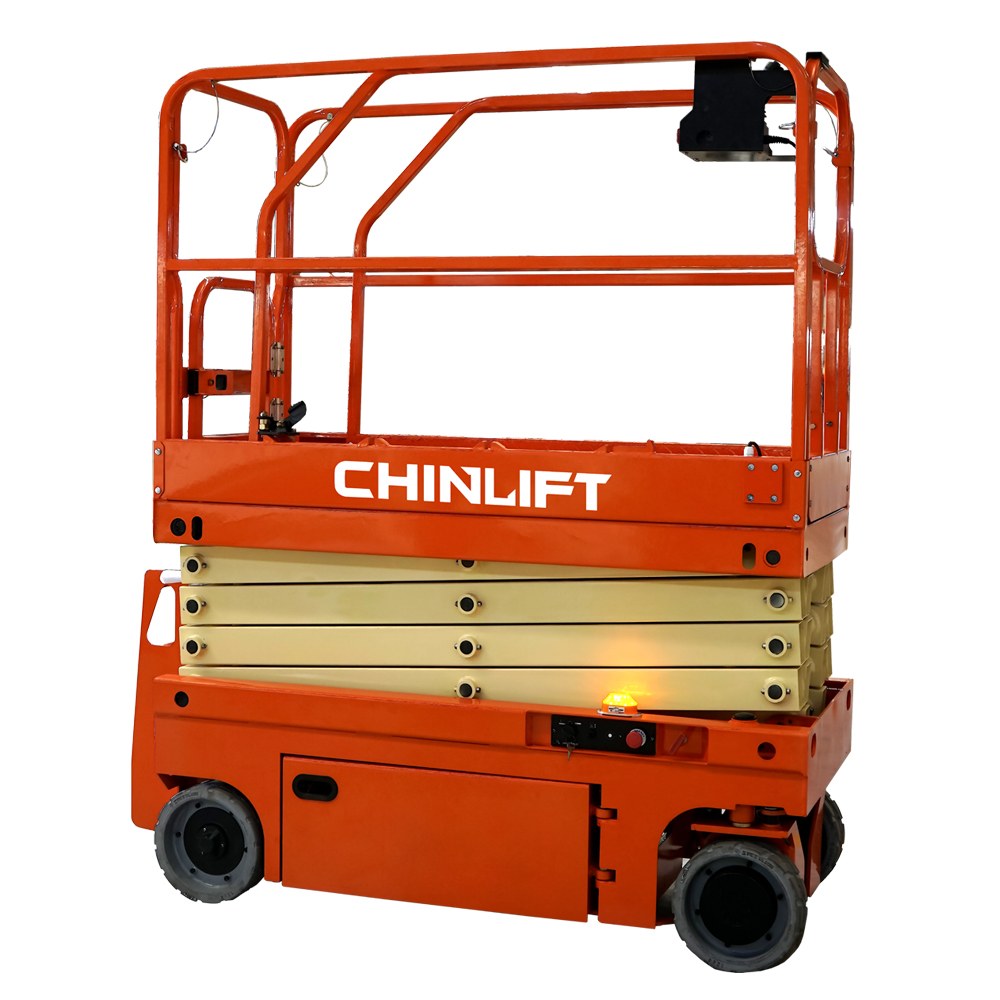

Mini Self-Propelled Platform SJC0805/0806

The Chinlift Mini Self-Propelled Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.

  • Model :

    SJC
  • Power Type :

    Electric
  • Load Capacity :

    320/230kg
  • Lifting Height :

    4500/5800mm
  • Description

Mini Self-Propelled Platform SJC0805/0806



The Chinlift Mini Self-Propelled Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.

  • 3 Ton Diesel Counterbalance Forklift



Features:

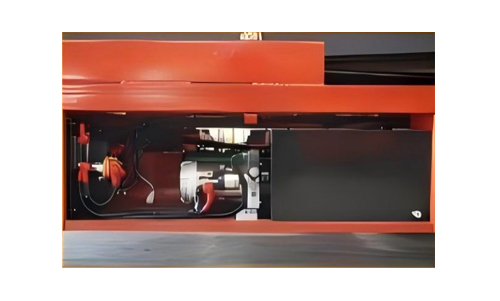

  • Optional manual oil pump can be used even without power supply.
  • The electric lifting switch can be optionally equipped with a remote control switch, which can be operated by both ground personnel and platform lifting personnel.
  • The lifting oil cylinder is equipped with a unloading and flow limiting valve, which can smoothly descend even in the event of oil leakage during the highest lifting state.

Technical Specifications (Product Information)



Model SJC0805 SJC0806
Power type Electric
Work type Walkie style
Rated capacity 320kg 230kg
Max. platform height 4500mm 5800mm
Max. working height 6500mm 7800mm
Work platform size 1670*740mm
turning radius 1640mm
Tyre size(drive wheel) φ305*100m
Battery capacity 48V/70Ah
Lifting motor 48V/1.5kW
Overall length 1860mm
Overall width 760mm
Overal height 2025mm 2150mm
Self weight 1300kg 1340kg

Customizable Options

Remote control

Optional

Li-ion battery

Optional

Lifting height

Optional

Colors

Customized accepted
