The Chinlift Electrical Articulating Boom Lift V09/11 are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
Model :
V09/11Power Type :
ElectricLoad Capacity :
200kgLifting Height :

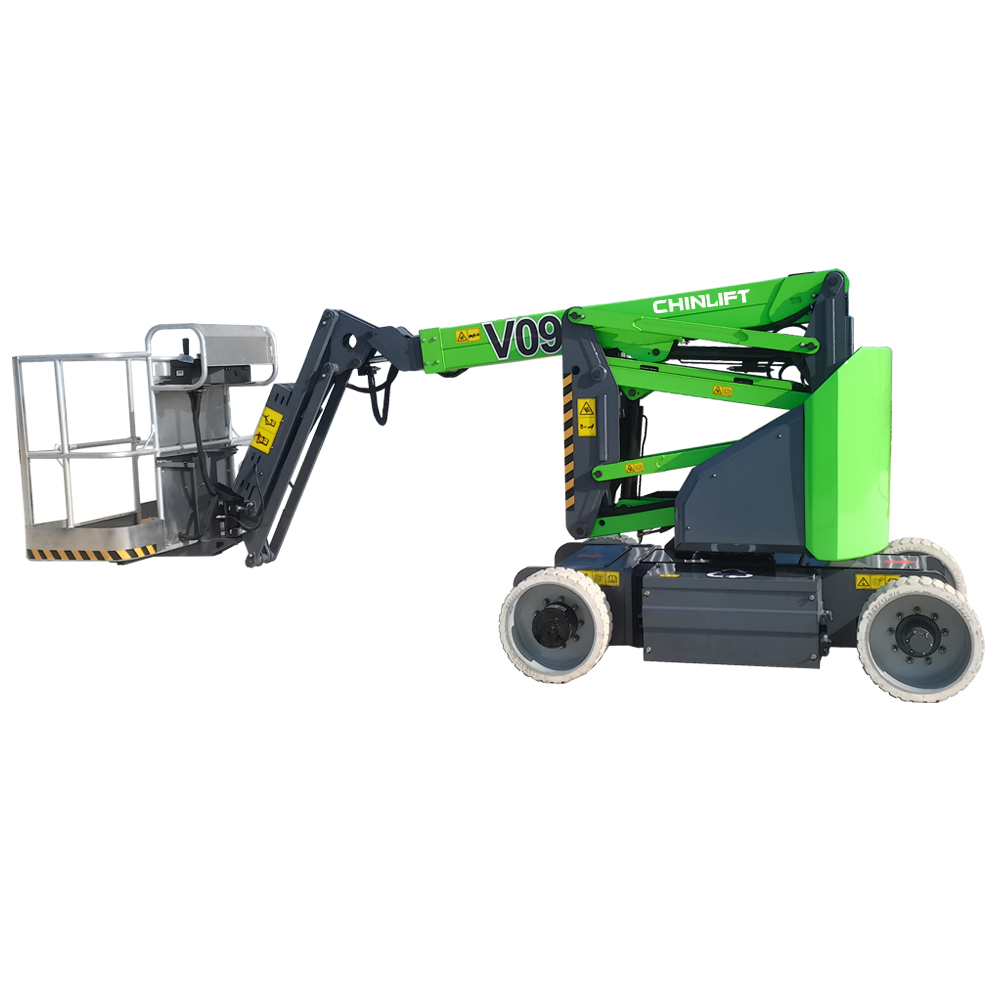

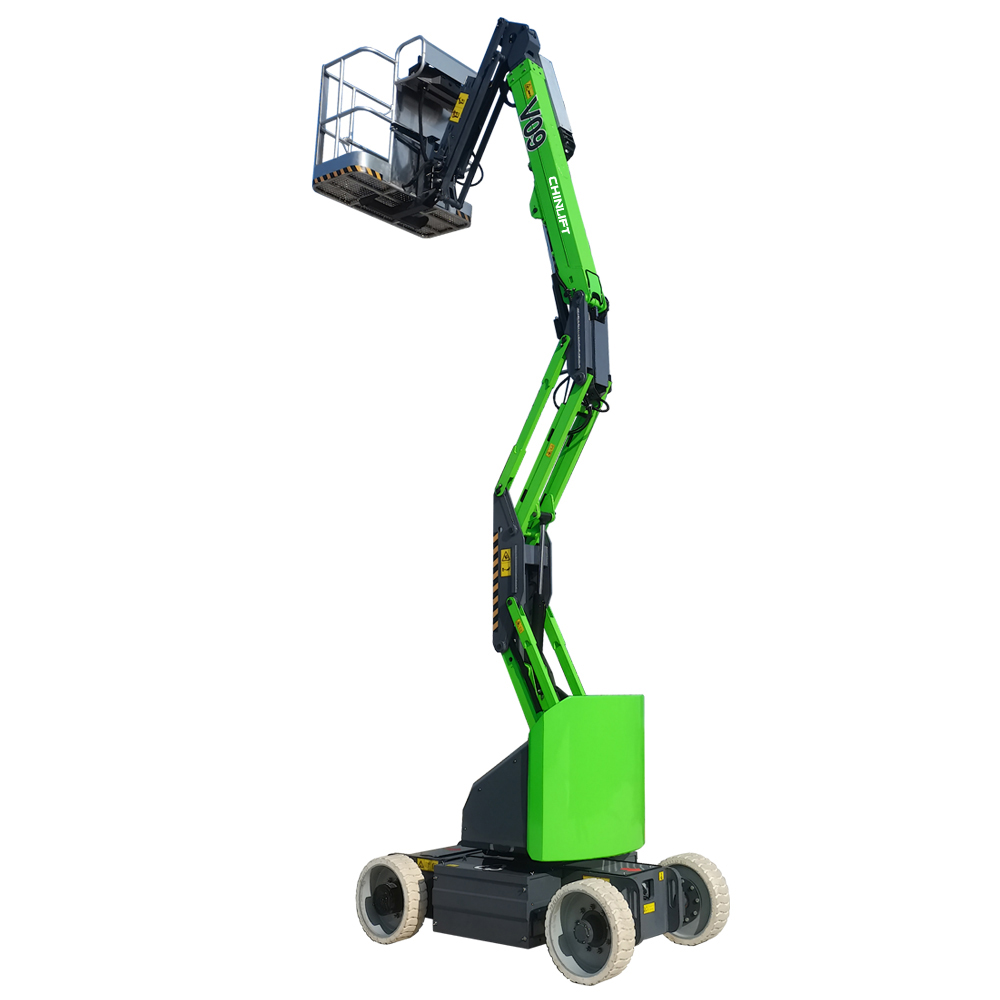

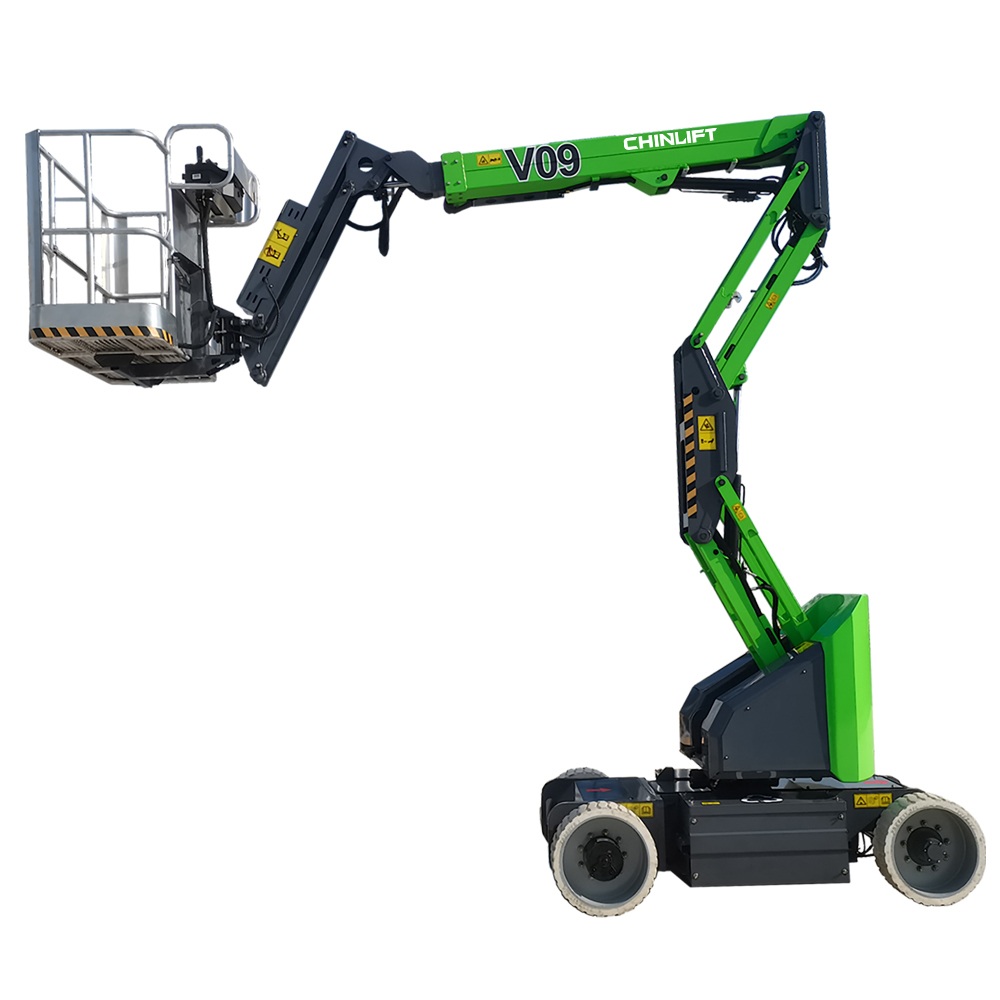

9300/10500mmElectrical Articulating Boom Lift V09/11
Electrical Articulating Boom Lift V09/11 are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
| Model | V09 | V11 | |
| Power type | Electric | ||
| Work type | Walkie style | ||
| Max. Lift capacity | 200kg | 200kg | |
| Max. platform height | 9.3m | 10.5m | |
| Max. working height | 11.3m | 12.5m | |
| Work platform size | 1.2*0.7m | ||
| Wheelbase | 1.75m | 1.95m | |
| Turning radius | 2.82m | 3.23m | |
| Max. working radius | 6.25m | 7.15m | |
| Tyre size | 22×7×17 | 27×7×17 | |
| Battery capacity | 48V/300Ah | ||
| Control Voltage | 24V | ||
| Length-Stowed | 5.2m | 5.6m | |
| Width | 1.27m | 1.50m | |
| Height-Stowed | 2.0m | 2.0m | |
| Self weight | 4800kg | 5000kg | |
Optional
Optional
Optional
Customized accepted
