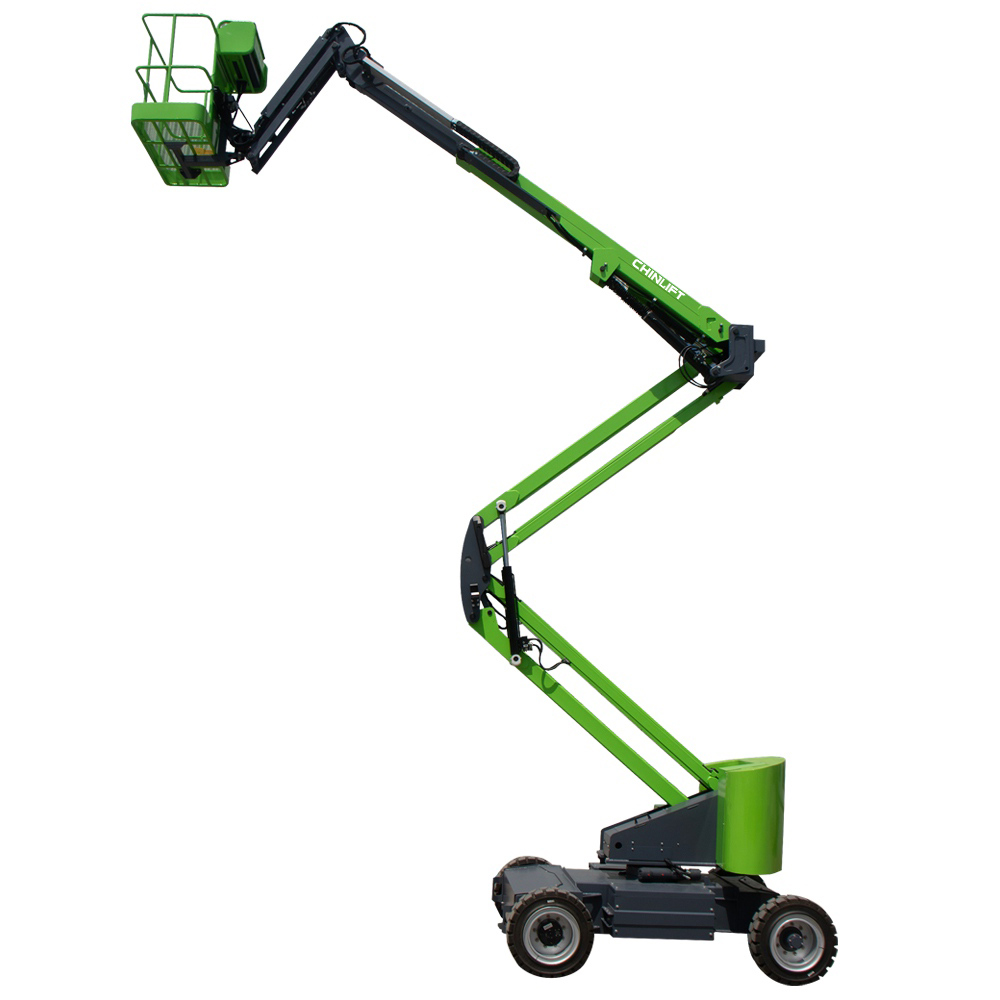

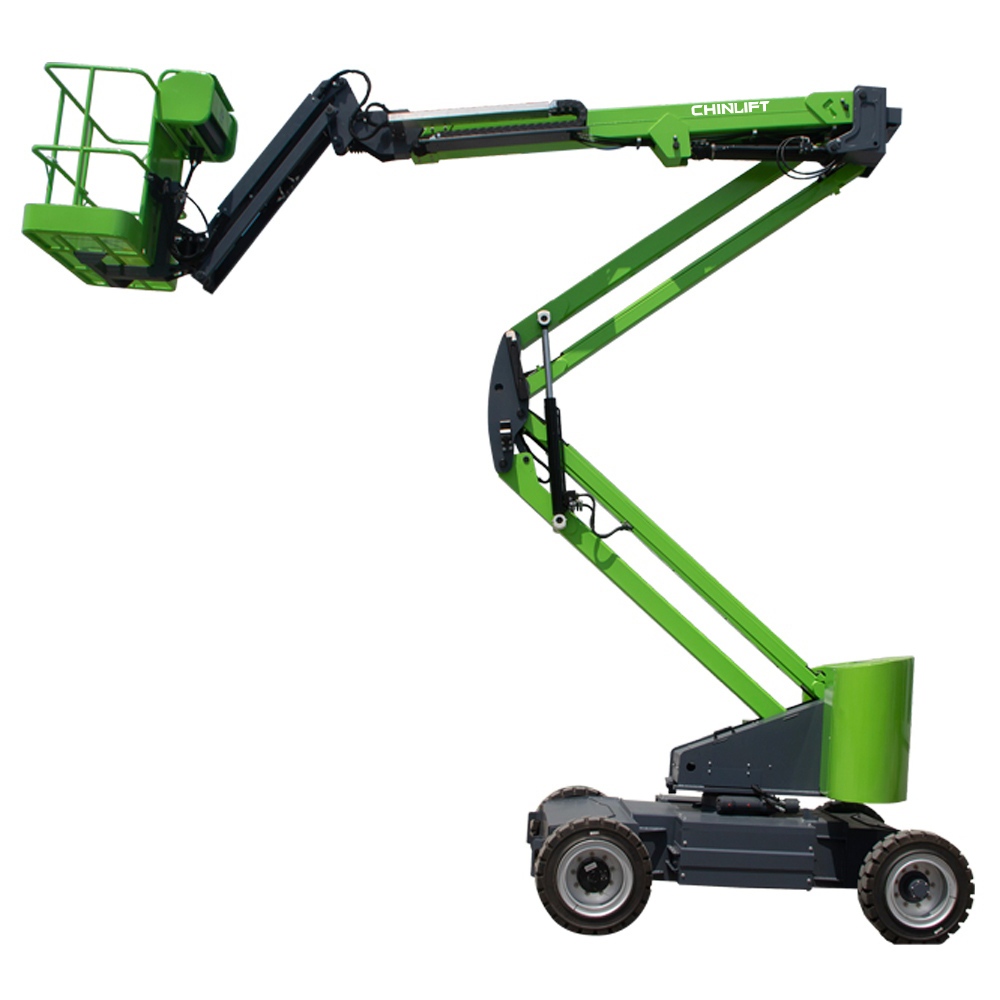

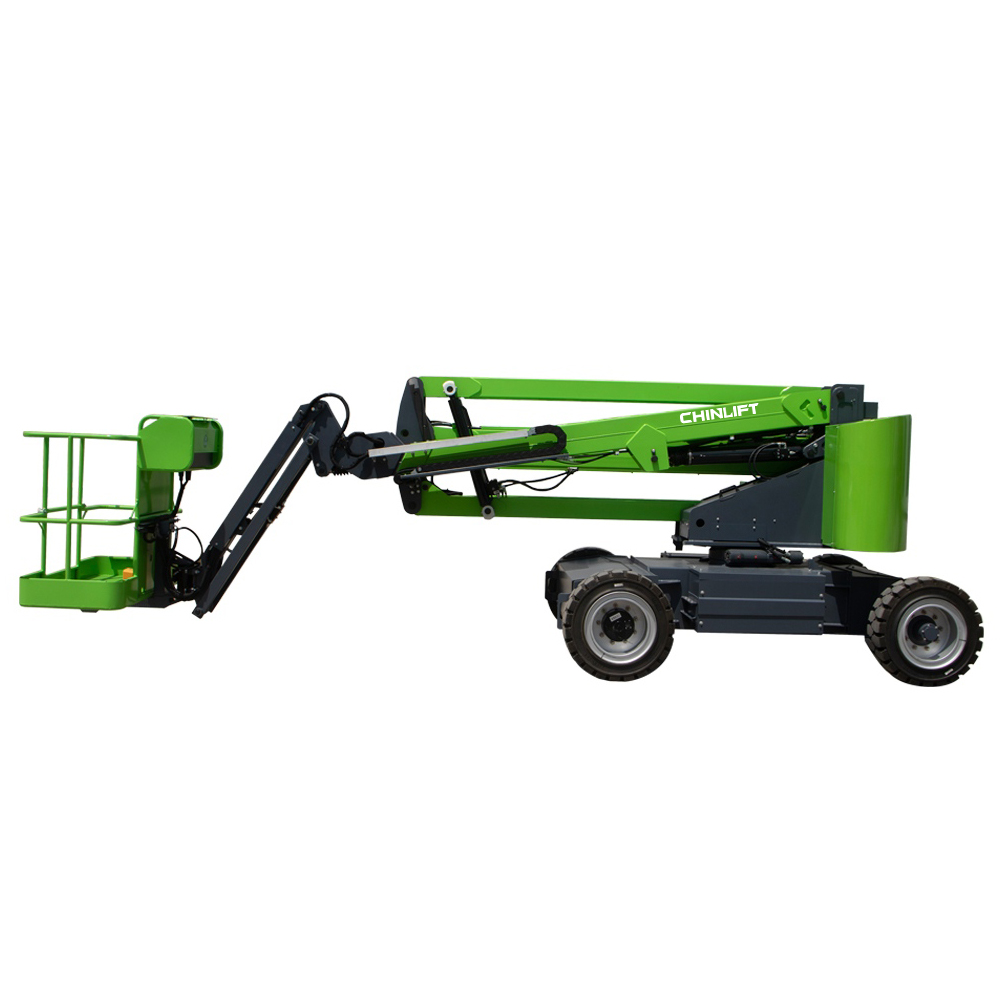

The Chinlift Electrical Articulating Boom Lift V12/14/16 are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
Model :
V12/14/16Power Type :
ElectricLoad Capacity :
230kgLifting Height :
11500/13800/15800mmElectrical Articulating Boom Lift V12/14/16
Electrical Articulating Boom Lift V12/14/16 are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
| Model | V12 | V14 | V16 | |
| Power type | Electric | |||
| Work type | Walkie style | |||
| Max. Lift capacity | 230kg | |||
| Max. platform height | 12.2m | 13.8m | 15.7m | |
| Max. working height | 14.2m | 15.8m | 17.7m | |
| Work platform size | 1.2*0.7m | 1.4*0.7m | ||
| Wheelbase | 2.0m | |||
| Turning radius | 2.8m | 2.83m | 2.97m | |
| Max. working radius | 6.5m | 7.5m | 8.9m | |
| Tyre size | 28*9-15 | 250-15 | ||
| Battery capacity | 48V/220Ah | 48V/300Ah | ||
| Control Voltage | 12V/24V | 24V | ||
| Length-Stowed | 5.6m | 6.5m | 7.2m | |
| Width | 1.68m | 1.76m | 1.90m | |
| Height-Stowed | 1.98m | 2.0m | ||
| Self weight | 4320kg | 5960kg | 6630kg | |
Optional
Optional
Optional
Customized accepted
The Chinlift aluminum single mast work platform is intended to lift work with necessay tools to working heights of up to 9 meters The unique design of lifting mast provides excellent stability and enables operations more safe and easier. The single mast aerial work platform is built to be as compact as possible, so that the operator can move in through standard doorways or very narrow passages, AC power and DC power are optional.
View More
The Chinlift aluminum double mast work platform is intended to lift worker with necessary tools to working heights of up to 12 meters.The unique design of lifting mast provides excellent stability, enabling operations more safe and easie. AC power and DC power are optional.
View More
The Chinlift Manual Walkie Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
The Chinlift electric walkie type platforms are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
The Chinlift Stand-on Driving Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
The Chinlift Mini Self-Propelled Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
