The Chinlift Electrical Articulating Boom Lift V18/20 are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
Model :
V18/20Power Type :
ElectricLoad Capacity :
230kgLifting Height :

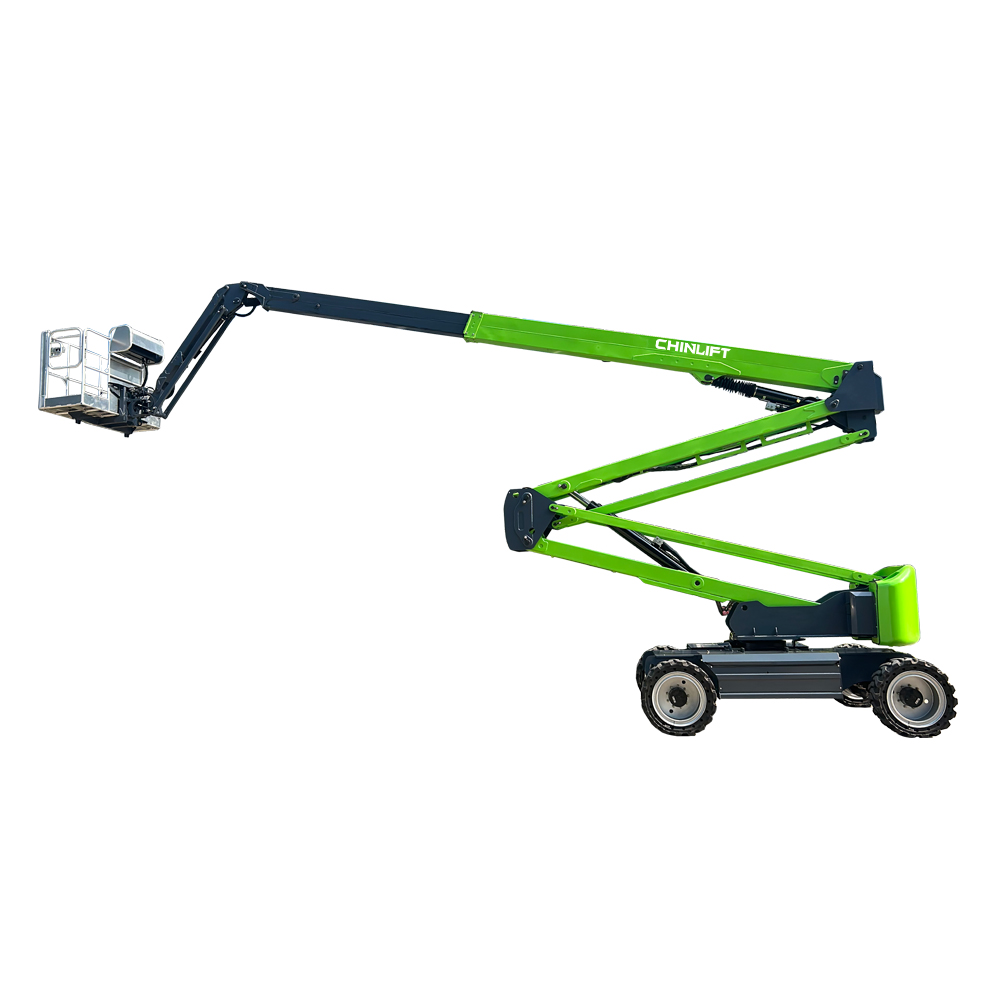

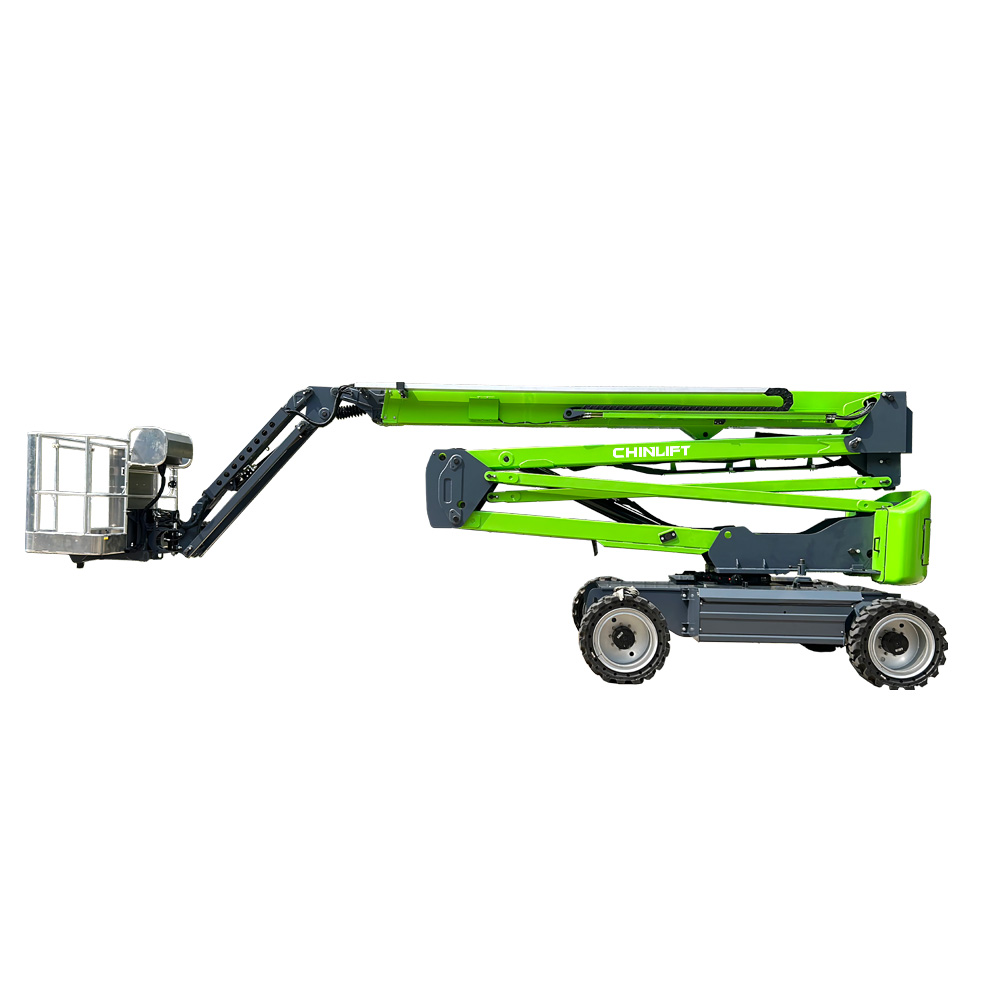

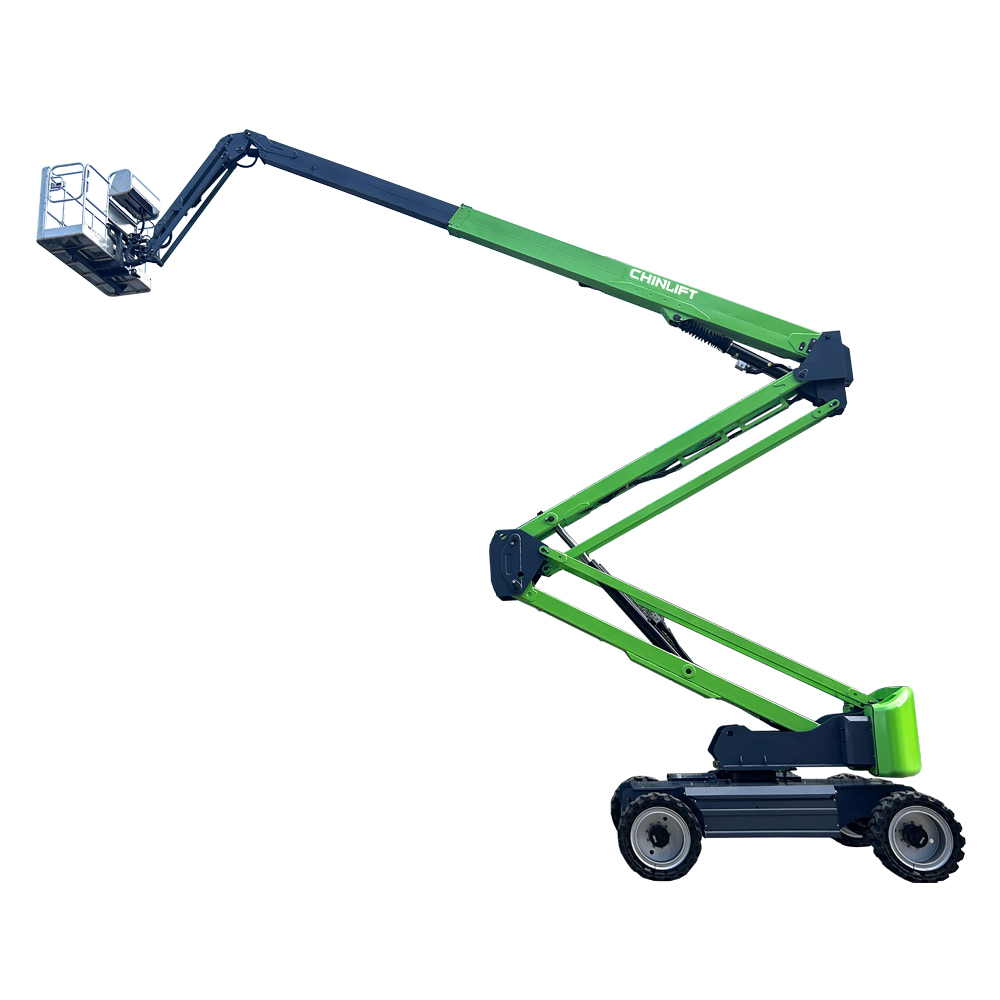

18200/20500mmElectrical Articulating Boom Lift V18/20
Electrical Articulating Boom Lift V18/20 are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
| Model | V18 | V20 | |
| Power type | Electric | ||
| Work type | Walkie style | ||
| Max. Lift capacity | 230kg | 230kg | |
| Max. platform height | 18.2m | 20.5m | |
| Max. working height | 20.2m | 22.5m | |
| Work platform size | 1.8*0.76m | ||
| Wheelbase | 2.5m | ||
| Turning radius | 4.18m | ||
| Max. working radius | 11.6m | 11.8m | |
| Tyre size | 33×12-20 | ||
| Battery capacity | 48V/400Ah | ||
| Control Voltage | 12V | ||
| Length-Stowed | 8.49m | ||
| Width | 2.49m | ||
| Height-Stowed | 2.38m | ||
| Self weight | 9100kg | 10000kg | |
Optional
Optional
Optional
Customized accepted
