The Chinlift Diesel Articulating Boom Lift V14/16D are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
Model :
V14/16DPower Type :
DieselLoad Capacity :
230kgLifting Height :

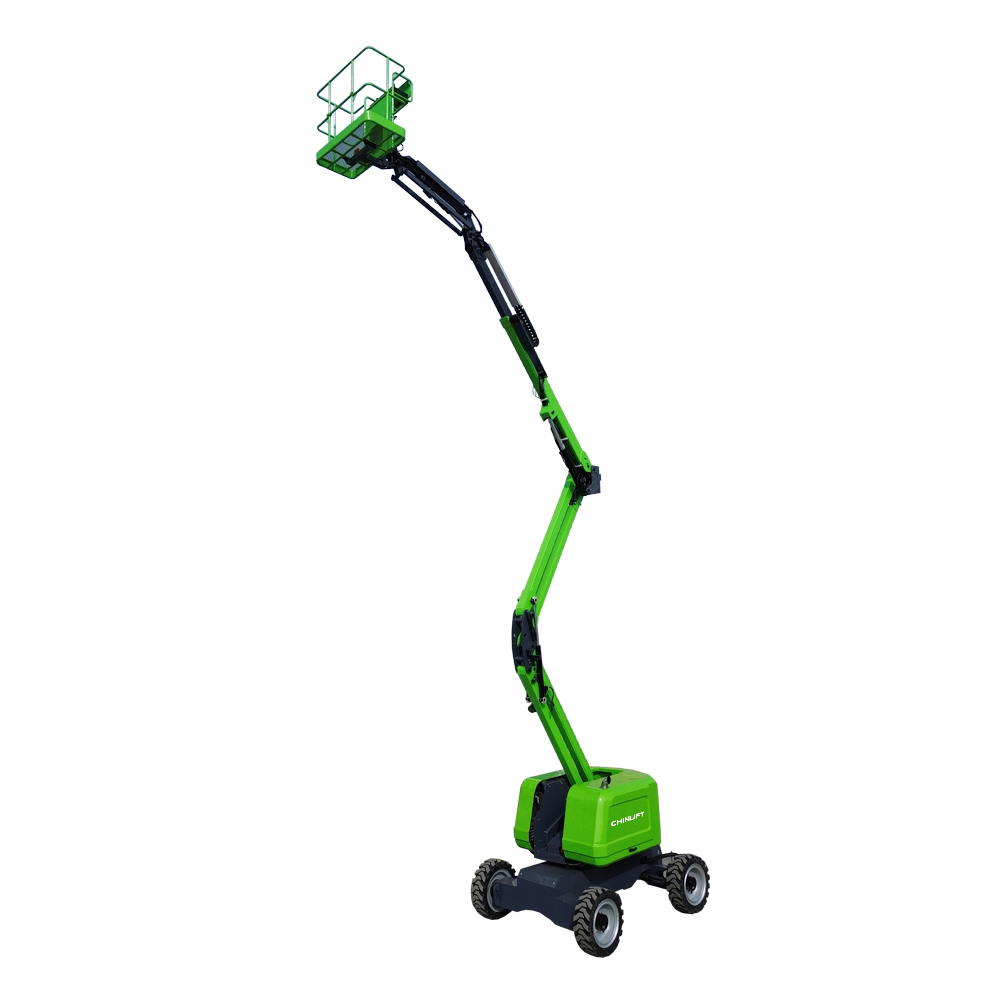

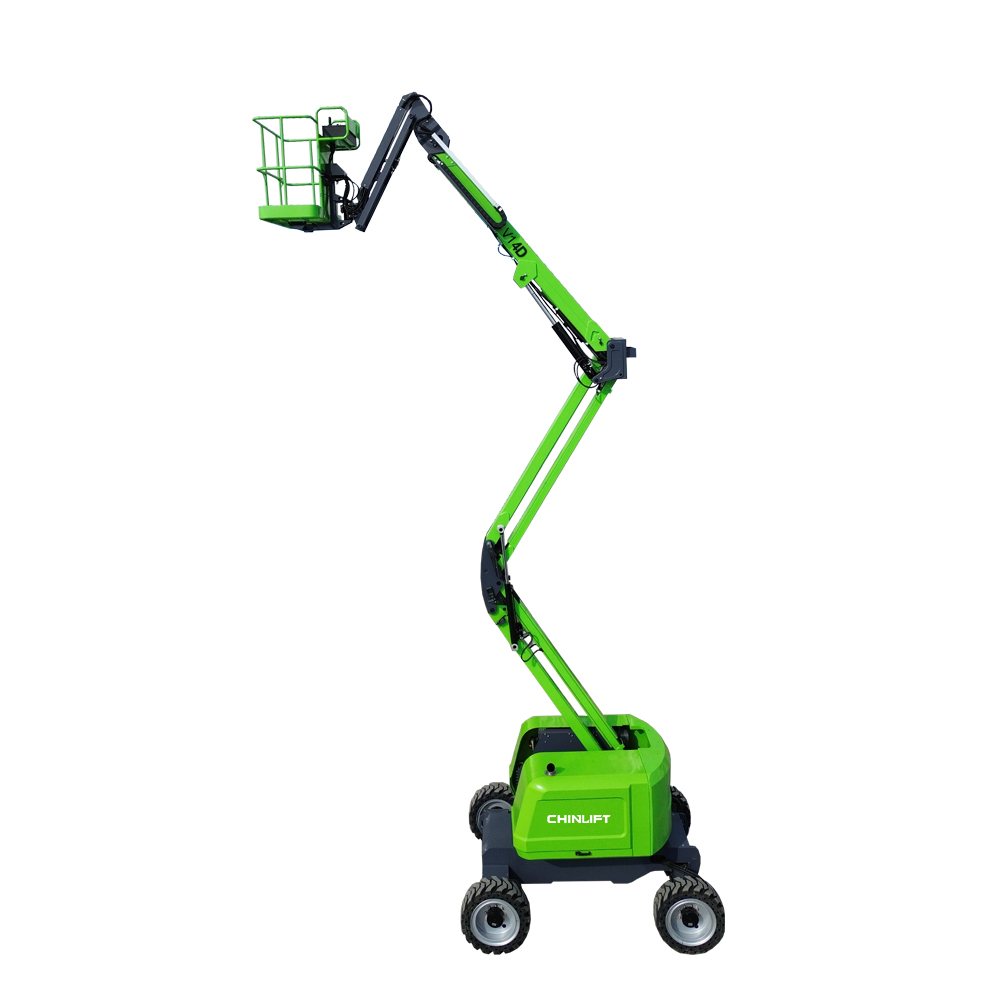

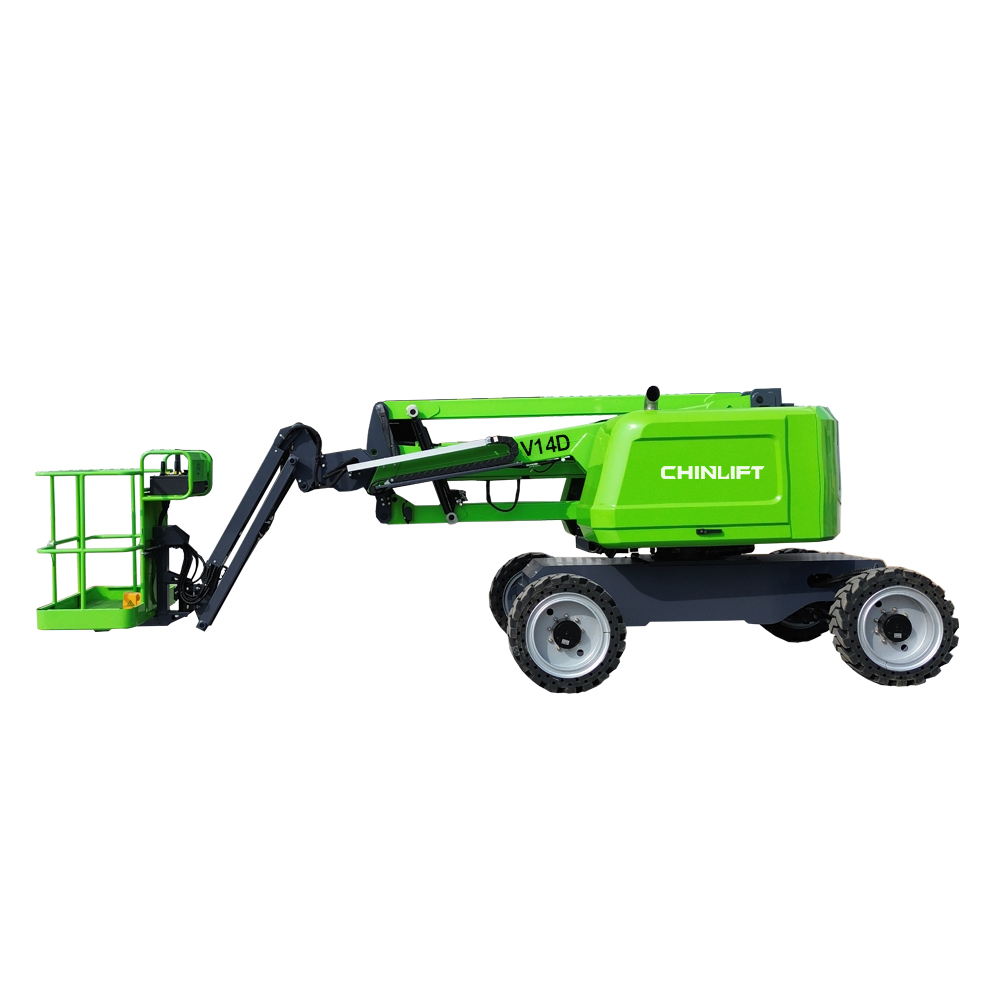

14000/15900mmDiesel Articulating Boom Lift V14/16D
Diesel Articulating Boom Lift V14/16D are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
| Model | V14D | V16D | |
| Power type | Electric | ||
| Work type | Inmotion | ||
| Max. Lift capacity | 230kg | ||
| Max. platform height | 14m | 15.9m | |
| Max. working height | 16m | 17.9m | |
| Work platform size | 1.4×0.7m | ||
| Wheelbase | 2.36m | ||
| Turning radius(outside) | 5.2m | ||
| Max. working radius | 7.5m | 8.9m | |
| Tyre size | 33×12-20 | ||
| Drive Gradeability | 45% | ||
| Drive Speed(stowed) | 5.5km/h | ||
| Drive Speed(extended) | 0.8km/h | ||
| Control Voltage | 12V DC | ||
| Length | 6.73m | 7.43m | |
| Width | 2.3m | ||
| Height | 2.2m | ||
| Weight | 6900kg | 7450kg | |
Optional
Optional
Optional
Customized accepted
The Chinlift aluminum single mast work platform is intended to lift work with necessay tools to working heights of up to 9 meters The unique design of lifting mast provides excellent stability and enables operations more safe and easier. The single mast aerial work platform is built to be as compact as possible, so that the operator can move in through standard doorways or very narrow passages, AC power and DC power are optional.
View More
The Chinlift aluminum double mast work platform is intended to lift worker with necessary tools to working heights of up to 12 meters.The unique design of lifting mast provides excellent stability, enabling operations more safe and easie. AC power and DC power are optional.
View More
The Chinlift Manual Walkie Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
The Chinlift electric walkie type platforms are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
The Chinlift Stand-on Driving Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
The Chinlift Mini Self-Propelled Platform are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
View More
