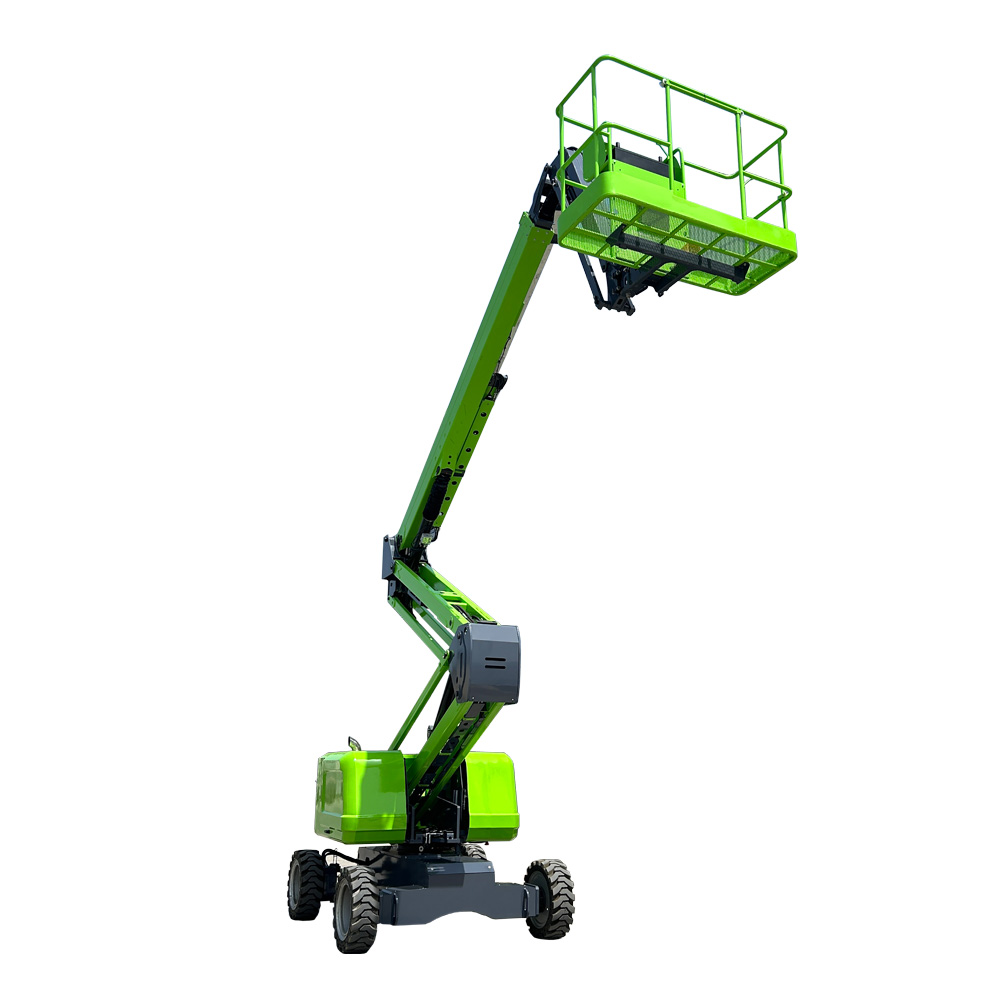

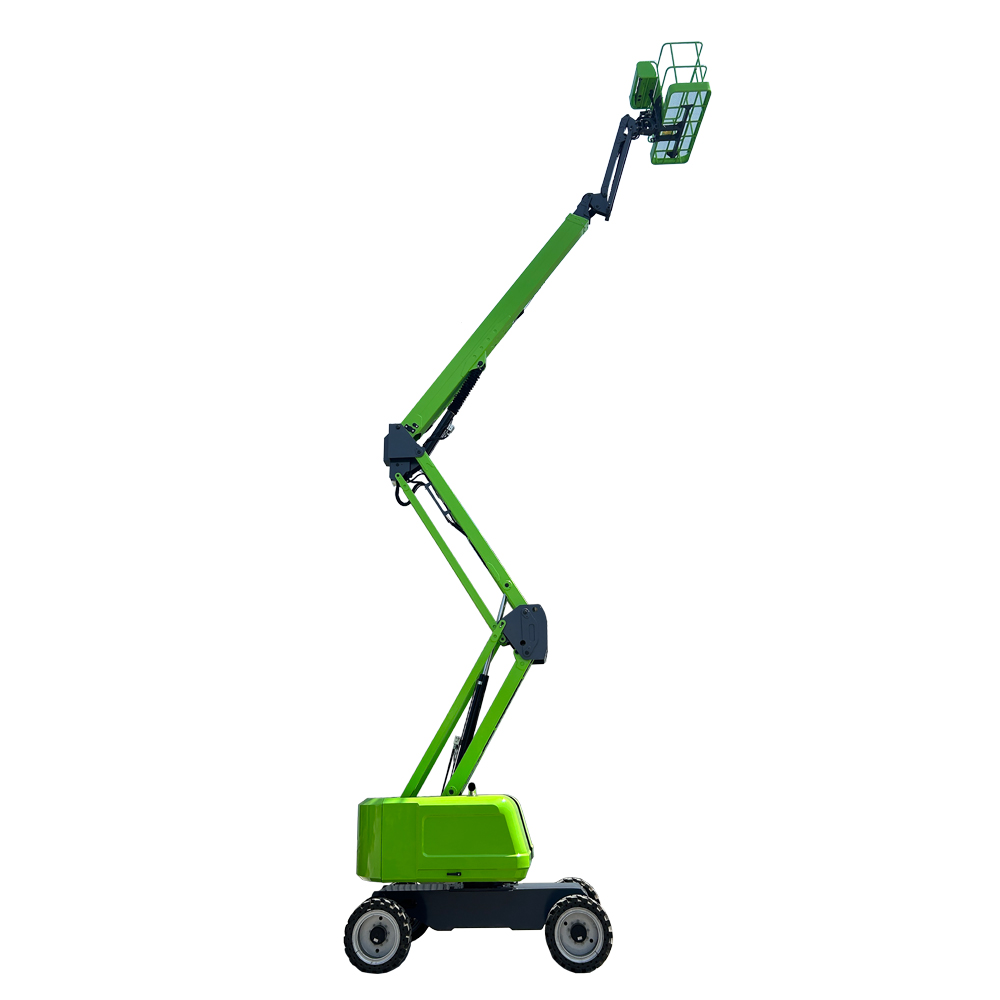

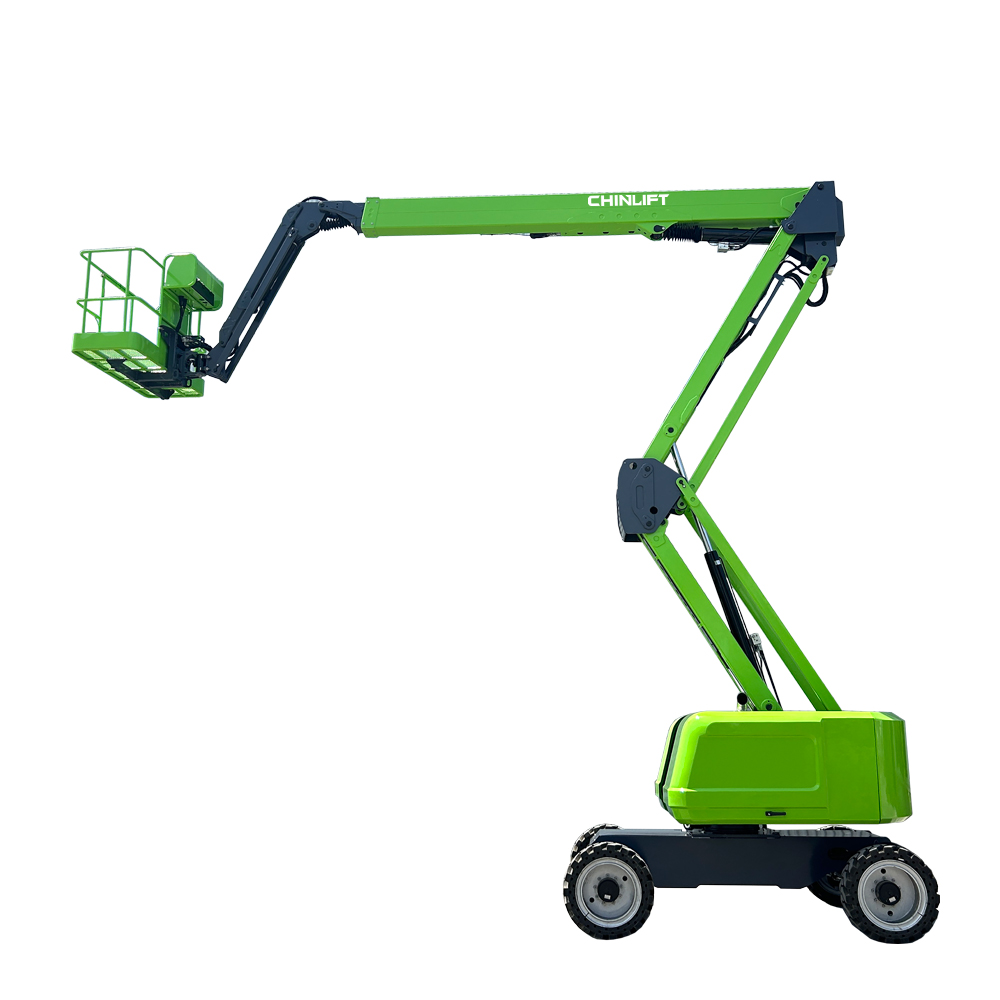

The Chinlift Diesel Articulating Boom Lift V18/20D are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
Model :
V18/20DPower Type :
DieselLoad Capacity :
230kgLifting Height :
18200/20500mmDiesel Articulating Boom Lift V18/20D
Diesel Articulating Boom Lift V18/20D are an eco-friendly way to elevate workers and heavy loads to workking heights of up to 14 meters. It has a electric driving handle, which makes the movement more easy and convenient. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
| Model | V18D | V20D | |
| Power type | Electric | ||
| Work type | Inmotion | ||
| Max. Lift capacity | 230kg | ||
| Max. platform height | 18.2m | 20.5m | |
| Max. working height | 20.2m | 22.5m | |
| Work platform size | 1.8×0.76m | ||
| Wheelbase | 2.5m | ||
| Turning radius(outside) | 5.35m | ||
| Max. working radius | 11.6m | 11.8m | |
| Tyre size | 33×12-20 | ||
| Drive Gradeability | 45% | ||
| Drive Speed(stowed) | 5.2km/h | 5.0km/h | |
| Drive Speed(extended) | 0.8km/h | ||
| Control Voltage | 12V DC | ||
| Length | 8.50m | ||
| Width | 2.44m | ||
| Height | 2.40m | ||
| Weight | 9600kg | 10100kg | |
Optional
Optional
Optional
Customized accepted
