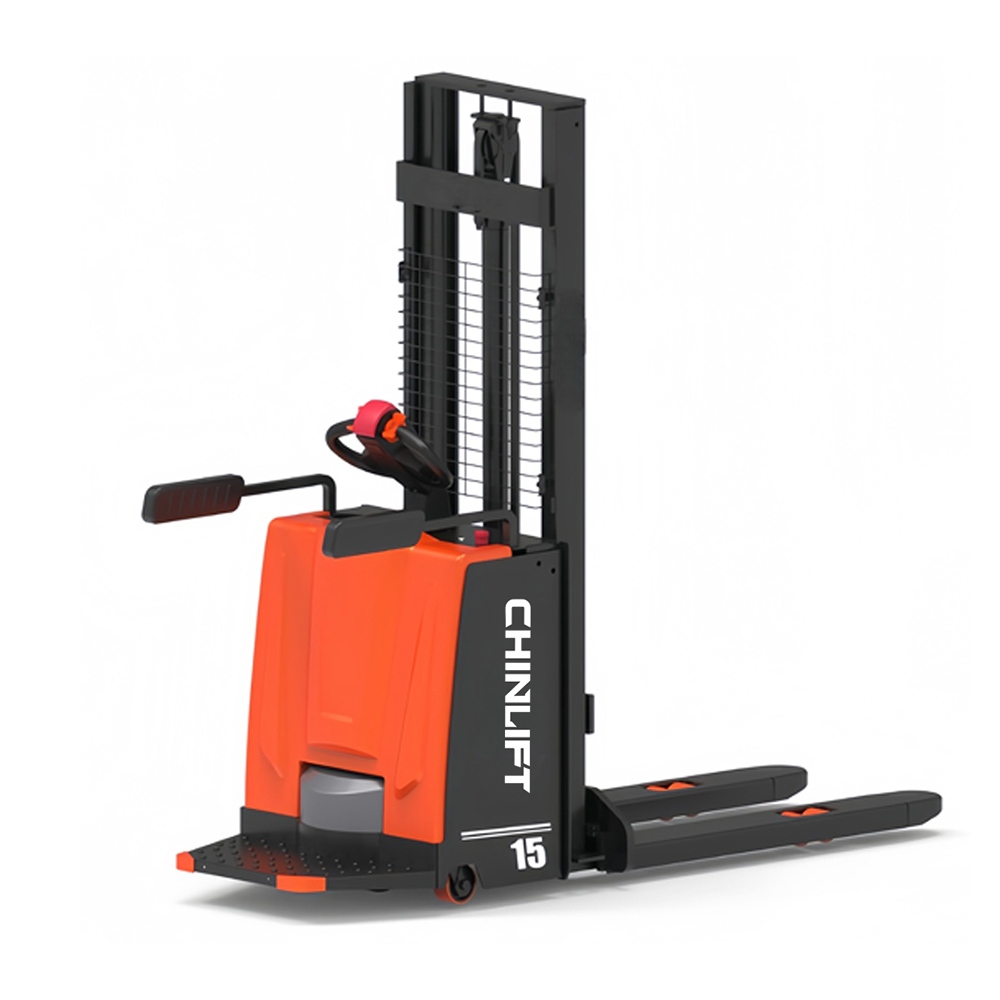

Electric Stacker TANK15

The Chinlift Electric Stacker TANK15 is specially designed with traditional lead-acid battery and  with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with  a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.

  • Model :

    TANK15
  • Power Type :

    Electric
  • Load Capacity :

    1500kg
  • Lifting Height :

    1600-3500mm
  • Description

Electric Stacker TANK15



The Chinlift Electric Stacker TANK15 is specially designed with traditional lead-acid battery and  with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with  a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.

  • 3 Ton Diesel Counterbalance Forklift



Features:

  • The eletric pallet truck is using 48V power system and maintenance free brushless motors.
  • The pallet truck with light weight and compact size which create excellent maneuverability and pass ability, it can handle most of the applications.
  • Specially designed anti-vibration technology ensures the high working efficiency of the pallet trucks and extends maintenance free battery life.

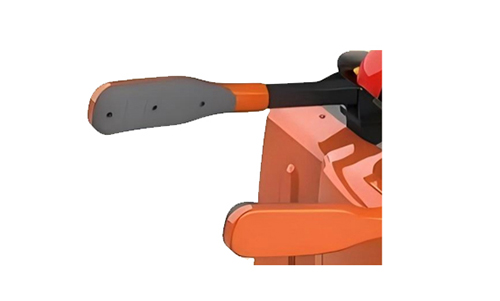

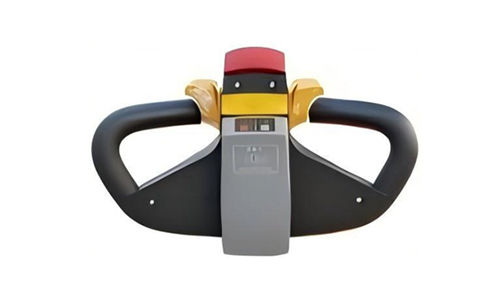

  • Ergonomic designed tiller head helps increasing the working efficiency.

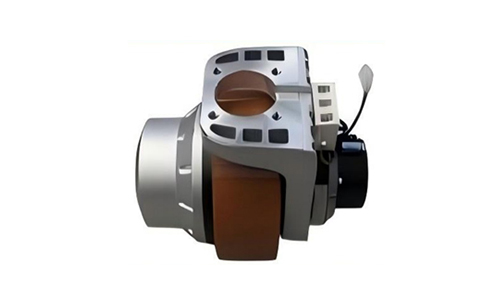

  • Handy emergency disconnected button and the durable driving unit ensure the safety under any special situation.
  • The structure design of NPT20 pallet truck is very easy for diagnosis and replace.

Technical Specifications (Product Information)



Model TANK15-16 TANK15-20 TANK15-25 TANK15-30 TANK15-35
Power type Electric
Work type Stand-on
Rated capacity 1500kg
Load center 500mm
Wheel base 1210mm
Wheel material PU
Drive wheel size φ110*70*1mm
Load wheel size φ80*70*4mm
Lifting height 1600mm 2000mm 2500mm 3000mm 3500mm
Lowered mast height 2070mm 1560mm 1810mm 2060mm 2310mm
Overall length 1850mm
Fork outside width 685mm
Turning radius 1773mm
Drive motor power AC 48V/1.2kW
Pump motor ppower DC 48V/2.2kW
MAX.gradeability(laden/unladen) 6/12%
Battery capacity Standard Lead-acid 48/70 V/Ah
Self weight 588kg 608kg 638kg 658kg 678kg



Customizable Options

Controller

Chinese and Curtis

Li-ion battery

48V/20/30Ah

Balance wheels

Optional

Colors

Customized accepted
