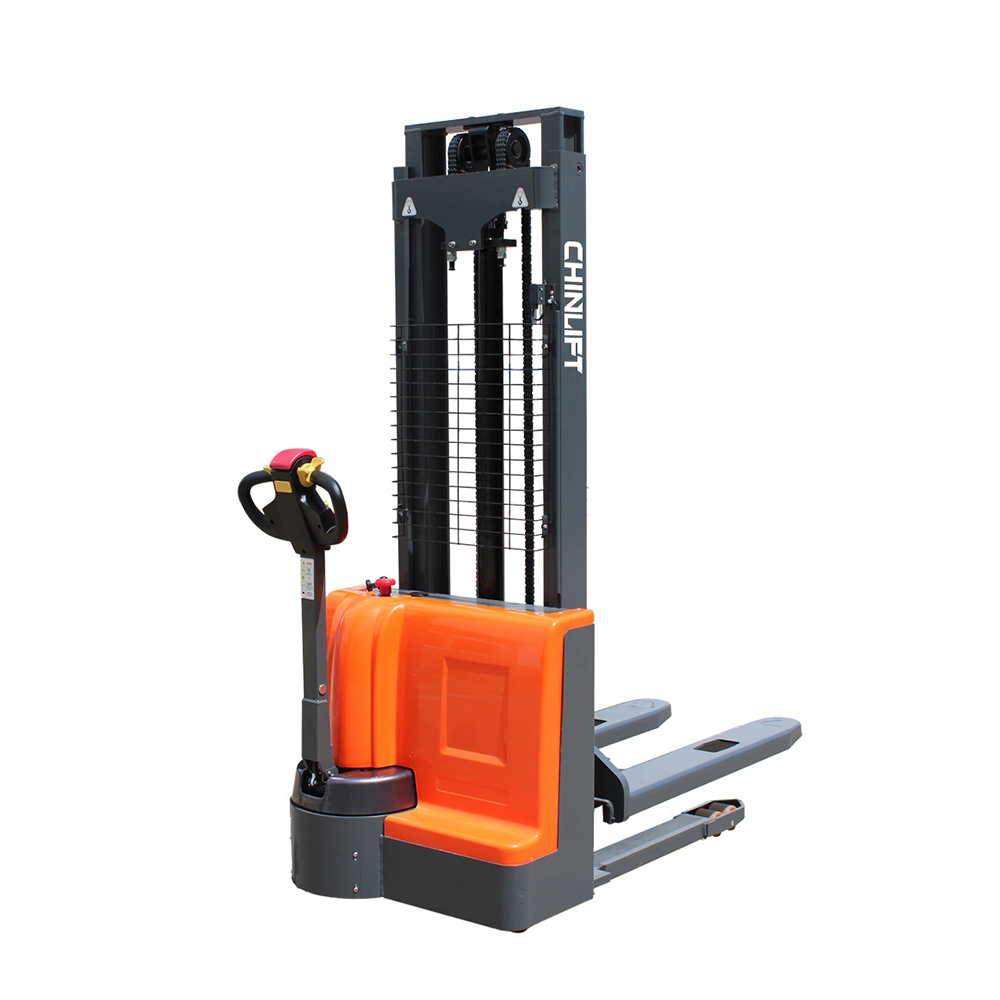

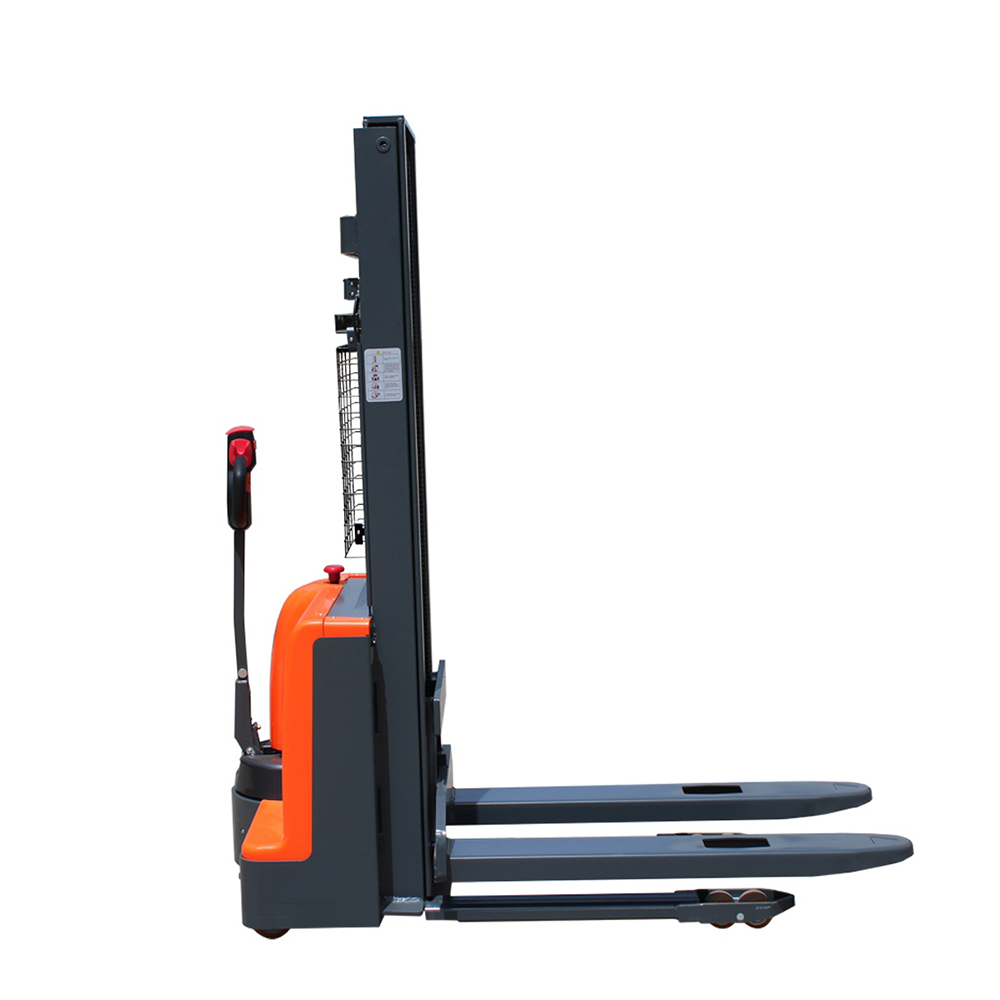

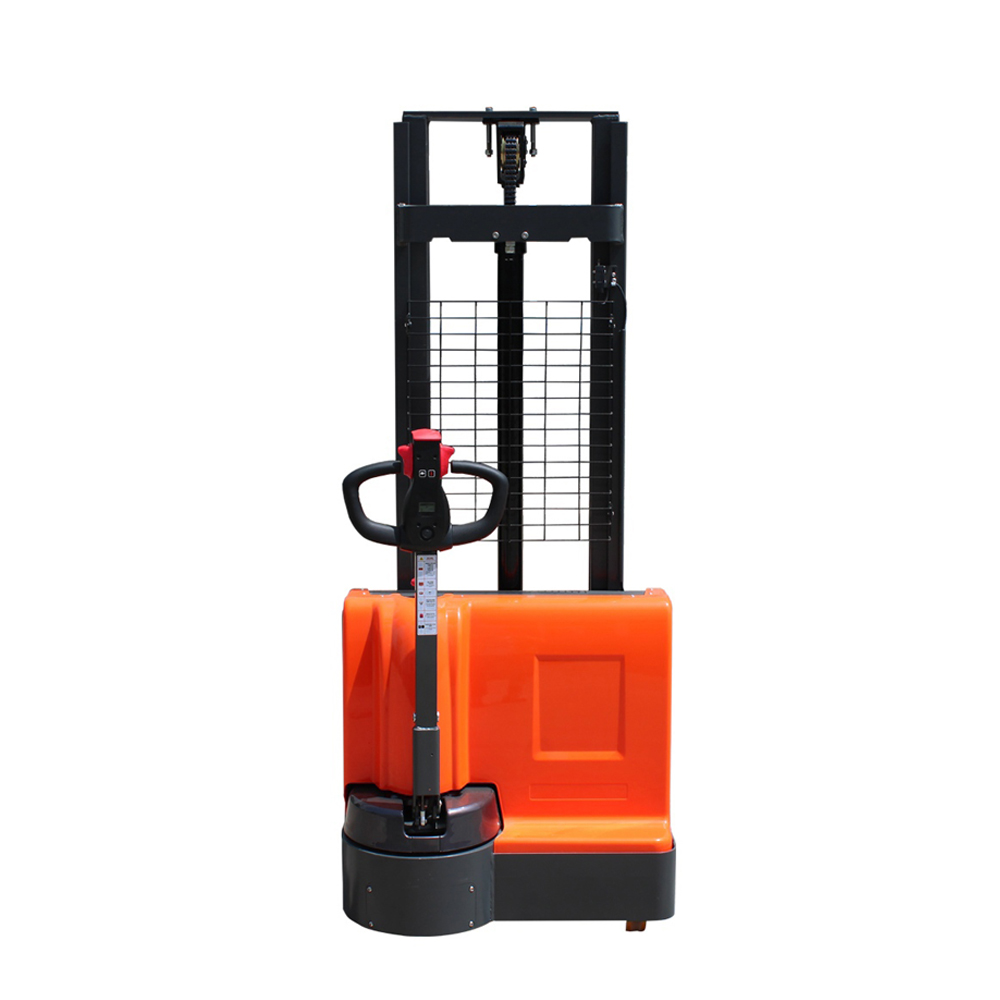

The Chinlift Electric Stacker PSL15/20 is specially designed with traditional lead-acid battery and with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.
Model :
PSL15/20Power Type :
ElectricLoad Capacity :
1500/2000kgLifting Height :
1600-3500mmElectric Stacker PSL15/20
The Chinlift Electric Stacker PSL15/20 is specially designed with traditional lead-acid battery and with compacted chassis, which improved reliablity and working efficiency, the lead-acid battery is introducing side pull designs,which has obtained National Design Patent with a removable battery and durable driving motor, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.
| Model | PSL15 | PSL20 | |||||
| Power type | Electric | ||||||
| Work type | Walkie style | ||||||
| Rated capacity | 1500kg | 2000kg | |||||
| Load center | 500mm | ||||||
| Wheel base | 1125mm | ||||||
| Wheel material | PU | ||||||
| Balance wheel size | φ110*50*1mm | ||||||
| Load wheel size | φ80*70*4mm | ||||||
| Lifting height | 1600kg | 2500kg | 3000kg | 1600kg | 2500kg | 3000kg | |
| Lowered mast height | 2070mm | 1800mm | 2050mm | 2070mm | 1800mm | 2050mm | |
| Overall length | 1788mm | ||||||
| Fork outside width | 560mm | 685mm | |||||
| Turning radius | 1520mm | ||||||

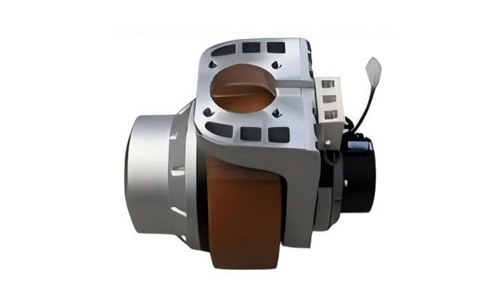

| Drive motor power | AC 48V/1.0kW | AC 48V/1.2kW | |||||

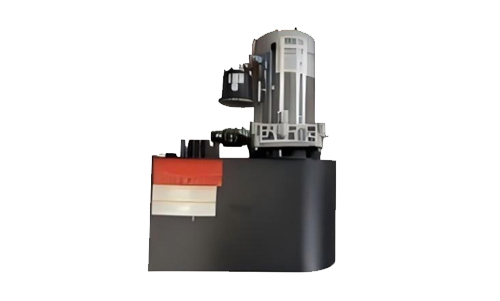

| Pump motor ppower | DC 48V/1.6kW | DC 48V/2.2kW | |||||
| MAX.gradeability(laden/unladen) | 6/15% | ||||||
| Battery capacity | 48/40 V/Ah | ||||||
| Self weight | 420kg | 470kg | 490kg | 520kg | 610kg | 640kg | |
Chinese and Curtis
48V/20/30Ah
Optional
Customized accepted
