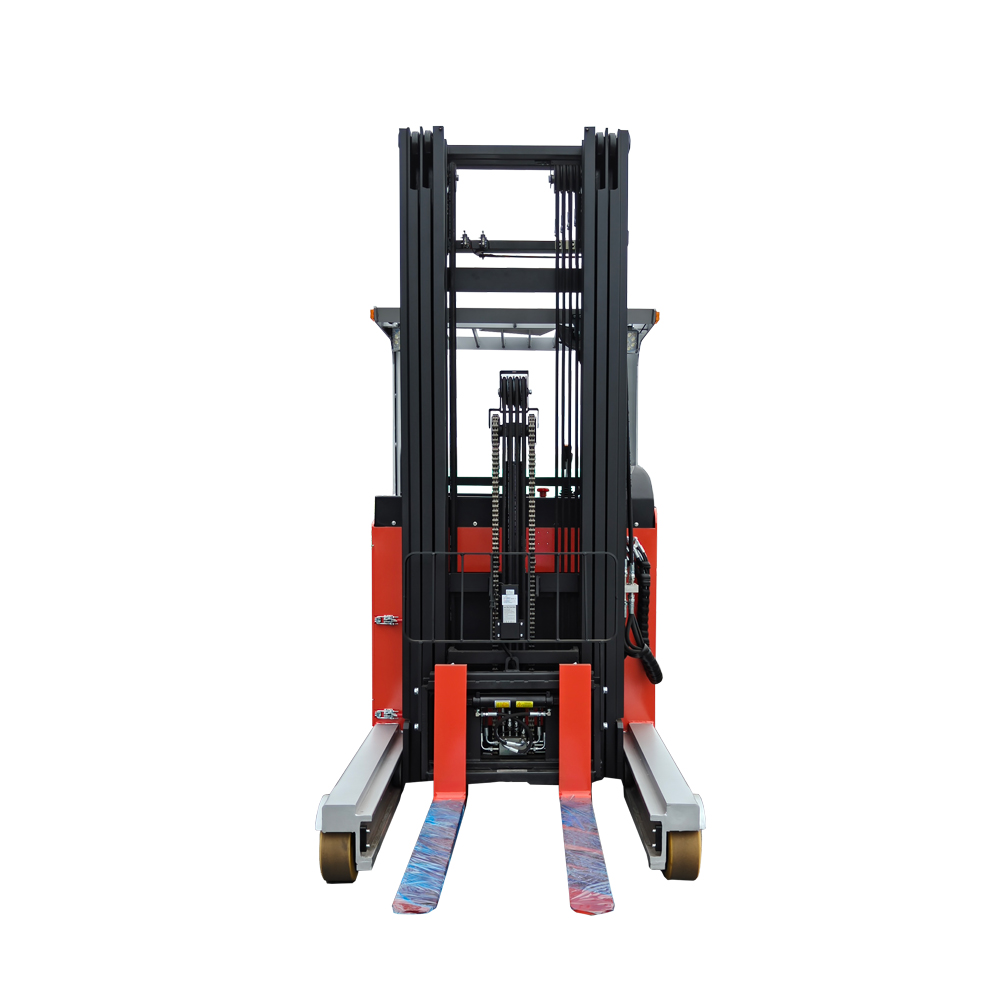

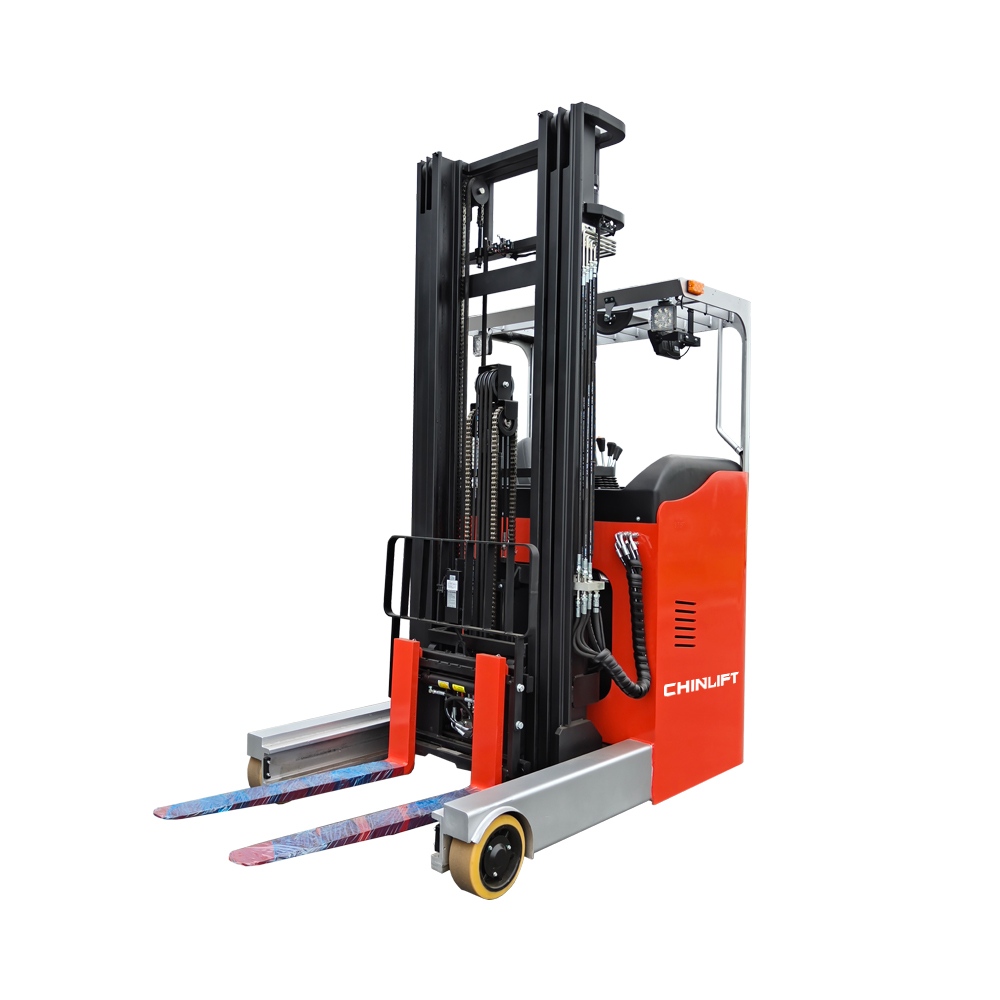

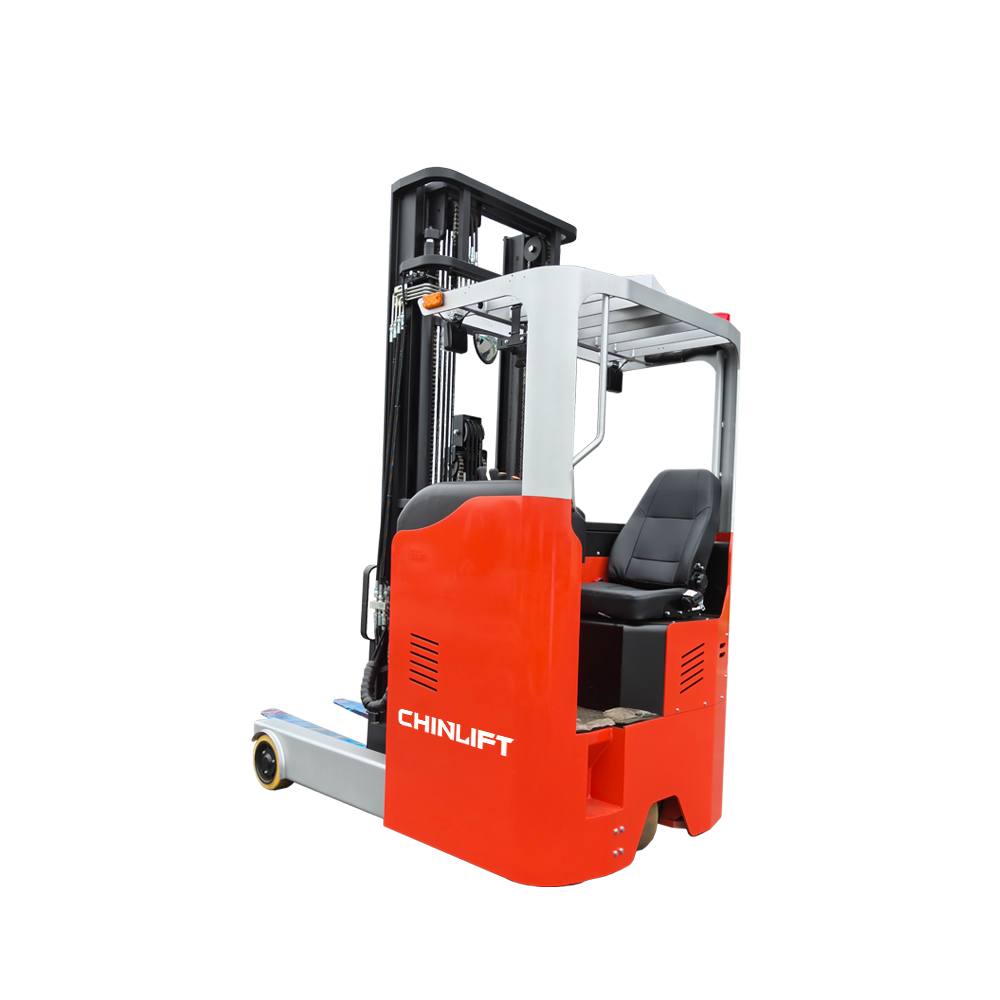

Electric seated reach truck CQDE15/20/25/30

The Chinlift has launched a new type of seated reach truck -CQDE15/20/25/30 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Model :

    CQDE15/20/25/30
  • Power Type :

    Electric
  • Load Capacity :

    1500-3000kg
  • Lifting Height :

    3300-8000mm
  • Description

Electric seated reach truck CQDE15/20/25/30



The Chinlift has launched a new type of seated reach truck -CQDE15/20/25/30, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Electric seated reach truck CQDE15/20/25/30
  • Electric seated reach truck CQDE15/20/25/30
  • Electric seated reach truck CQDE15/20/25/30



Features:

  • Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios.
  • lt features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-Iimited scenarios, easy loading or unloading goods.
  • Equipped with fu II AC drive system, small volume, light weight,high efficiency, free-maintenance and carb on-bru sh replacement. No more maintenance and protection;
  • Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.
  • Side-pull battery suits multi-shifing occasions, with standard roller trolley for easy change;
  • 6.5m or above high-strength H type mast steel, not easy to deform, it's reliable and stable operation.

Technical Specifications (Product Information)

Model CQDE15-45S CQDE20-45S CQDE25-80S CQDE30-45S
Power type Electric
Work type Seated Type
Rated capacity 1500kg 2000kg 2500kg 3000kg
Load center 500mm
Wheel base 1470mm 1620mm 1620mm 1650mm
Mast lifting height 4500mm 4500mm 8000mm 4500mm
Mast extended height 5465mm 5465mm 8965mm 5515mm
Mast lowered height 2105mm 2105mm 3550mm 2485mm
Free lift height 1140mm 1140mm 2660mm 1500mm
Overhead guard height 2180mm 2180mm 2180mm 2180mm
Fork tilting angle Front/Rear 3/5°
Overall length (with fork) 2477mm 2477mm 2477mm 2565mm
Overall width 1270mm 1270mm 1270mm 1270/1460mm
Fork size 35/100/1070mm 40/122/1070mm 45/125/1070mm 45/125/1070mm
Min. ground clearance 70mm 70mm 70mm 70mm
Aisle Width for Pallet 1000*1200 crossways 2964mm 3007mm 3007mm 3110mm
Min. turning radius 1800mm 1900mm 1900mm 1922mm
Max.gradeability ≤10%
Service brake Electromagnetic Electromagnetic Electromagnetic Electromagnetic
Battery capacity 48V300Ah 48V400Ah 48V400Ah 48V400Ah
Drive motor 6.5kW AC 6.5kW AC 8kW AC 8kW AC
Lifting motor 7.5kW AC 12kW AC 15kW AC 15kW AC
Self weight 3100kg 3200kg 3900kg 4300kg

Customizable Options

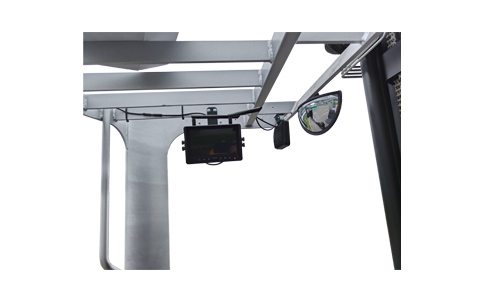

Camera

Optional

Li-ion battery

Optional

Side shift

Optional

Colors

Customized accepted
