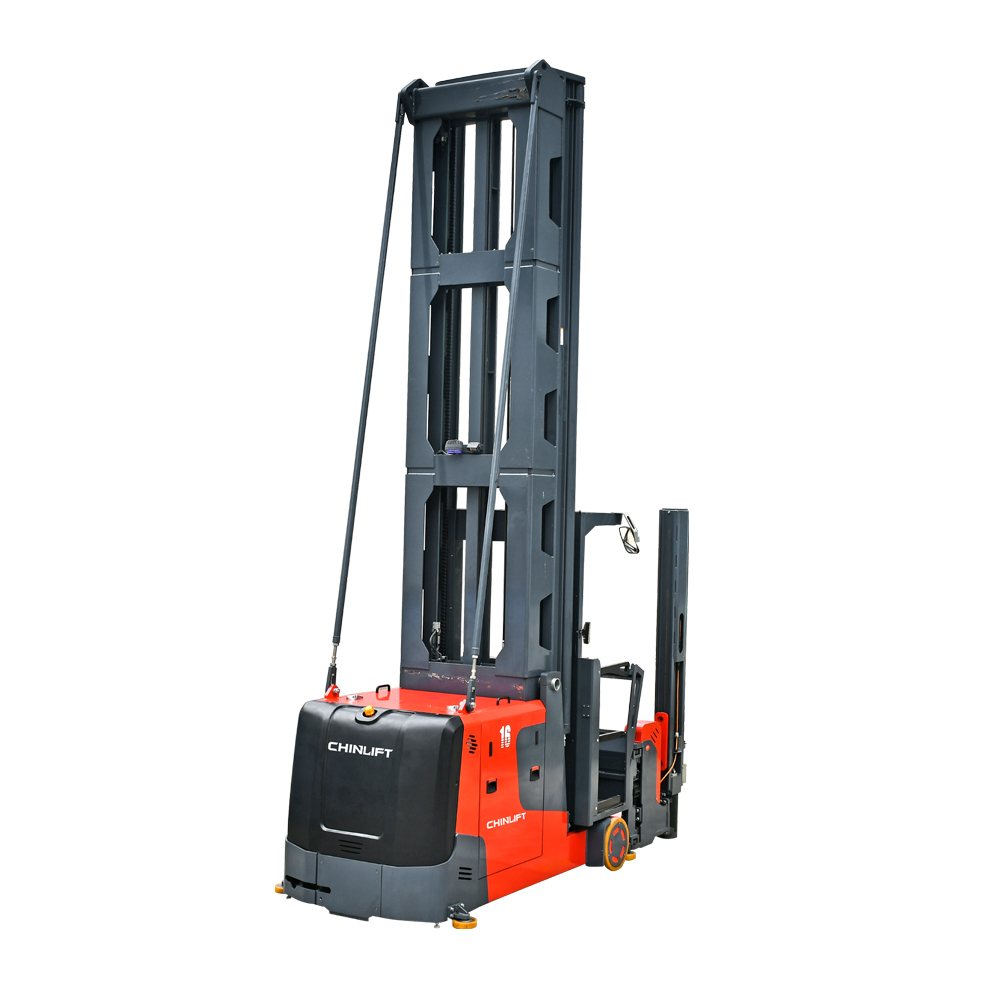

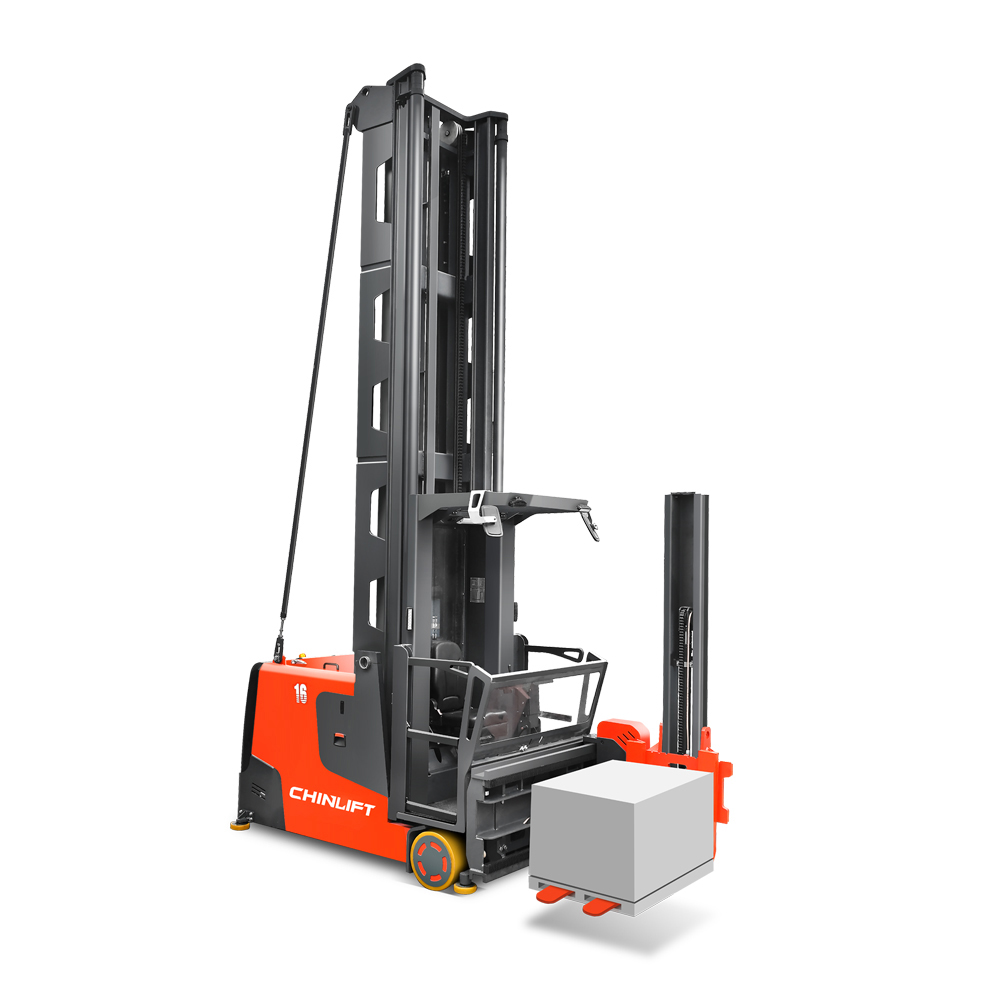

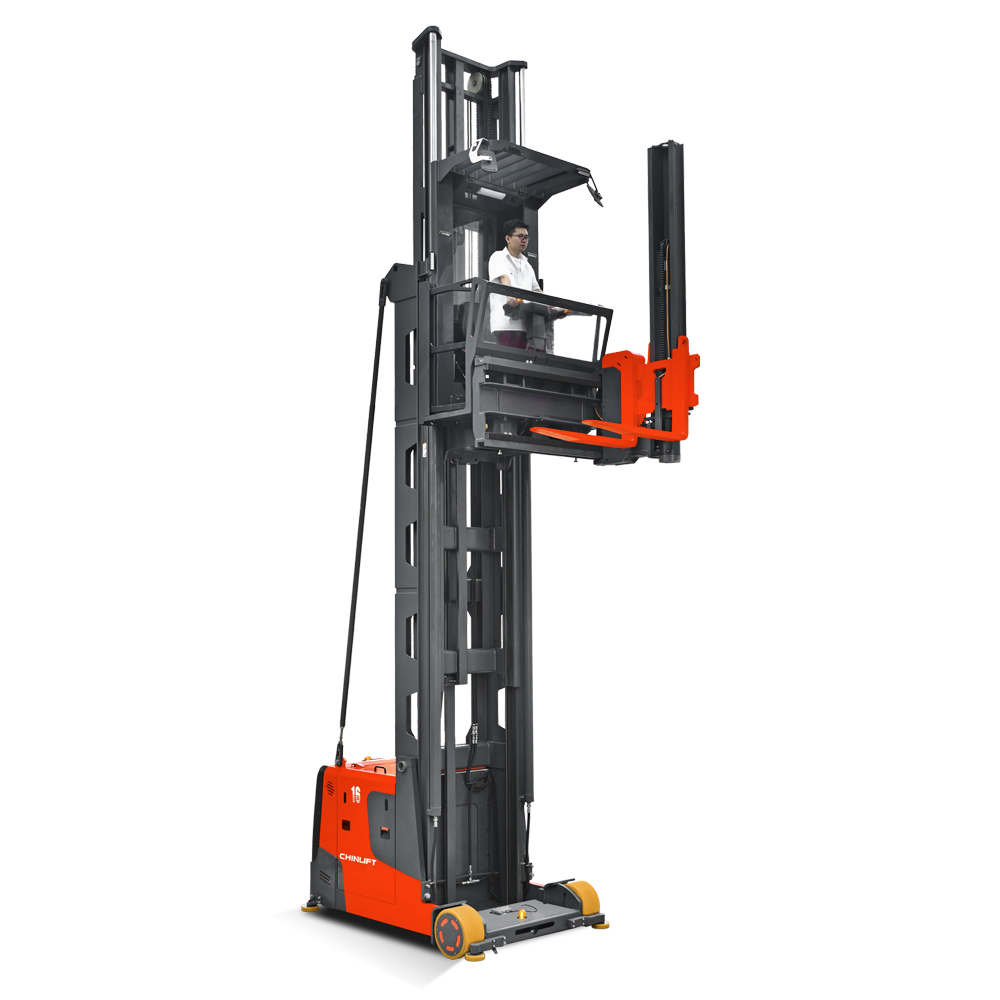

Man-up 3-way Stacker MCC16

The Chinlift has launched a new type of Man-up 3-way Stacker MCC16 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Model :

    MCC16
  • Power Type :

    Electric
  • Load Capacity :

    1600kg
  • Lifting Height :

    4500-9500mm
  • Description

Man-up 3-way Stacker MCC16



The Chinlift has launched a new type of Man-up 3-way Stacker MCC16 models, after careful design and improvement. This model has the traditional advan­tages of a reach truck such as high load, high lifting, and narrow aisle, and has made great improvements in efficiency and vision. Compared with the existing models on the market, it has achieved obvious advan­tages, especially driving speed, lifting speed, lowering speed and mast stability. Using this model can improve the efficiency and utilization of your ware­house.

  • Articulated Forklift NA15-30
  • Articulated Forklift NA15-30
  • Articulated Forklift NA15-30



Features:

  • Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios.
  • lt features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-Iimited scenarios, easy loading or unloading goods.
  • Equipped with fu II AC drive system, small volume, light weight,high efficiency, free-maintenance and carb on-bru sh replacement. No more maintenance and protection;
  • Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.
  • Side-pull battery suits multi-shifing occasions, with standard roller trolley for easy change;
  • 6.5m or above high-strength H type mast steel, not easy to deform, it's reliable and stable operation.

Technical Specifications (Product Information)

Model MCC16
Power type Battery
Driving type Stand/seat(man-up)
Rated capacity 1600kg
Load center 600mm
Wheel base 1950mm
Lift height 4500mm
Mast extended height 7130mm
Mast closed height 3665mm
Overhead guard height 2590mm
Fork outside width 260-725mm
Overall length (fork90°) 3690mm
Overall width 1244/1502mm
Fork size 1200/125/50mm
Min. ground clearance 80mm
Aisle Width for Pallet 1200*1200 1650mm
Min. turning radius 2235mm
Maximum climbing ability, load/unloaded 1%
Lead-acid capacity 80V560Ah
Drive motor 8kW AC
Lifting motor 21kW AC
Self weight 7720kg

Customizable Options

Camera

Optional

Li-ion battery

Optional

Side shift

Optional

Colors

Customized accepted
