Chinlift N Series electric forklift appearance is designed by professional industrial design methods, Artistic and Strengthful. The forklift with low cost of ownership, superior visibility, unmatched technique, safety and ergonomics designing for operator. It can be widely used in warehouse, factory, port and construction plant, etc.
Model :
LG15/18BPower Type :
ElectricLoad Capacity :
1500/1800kgLifting Height :

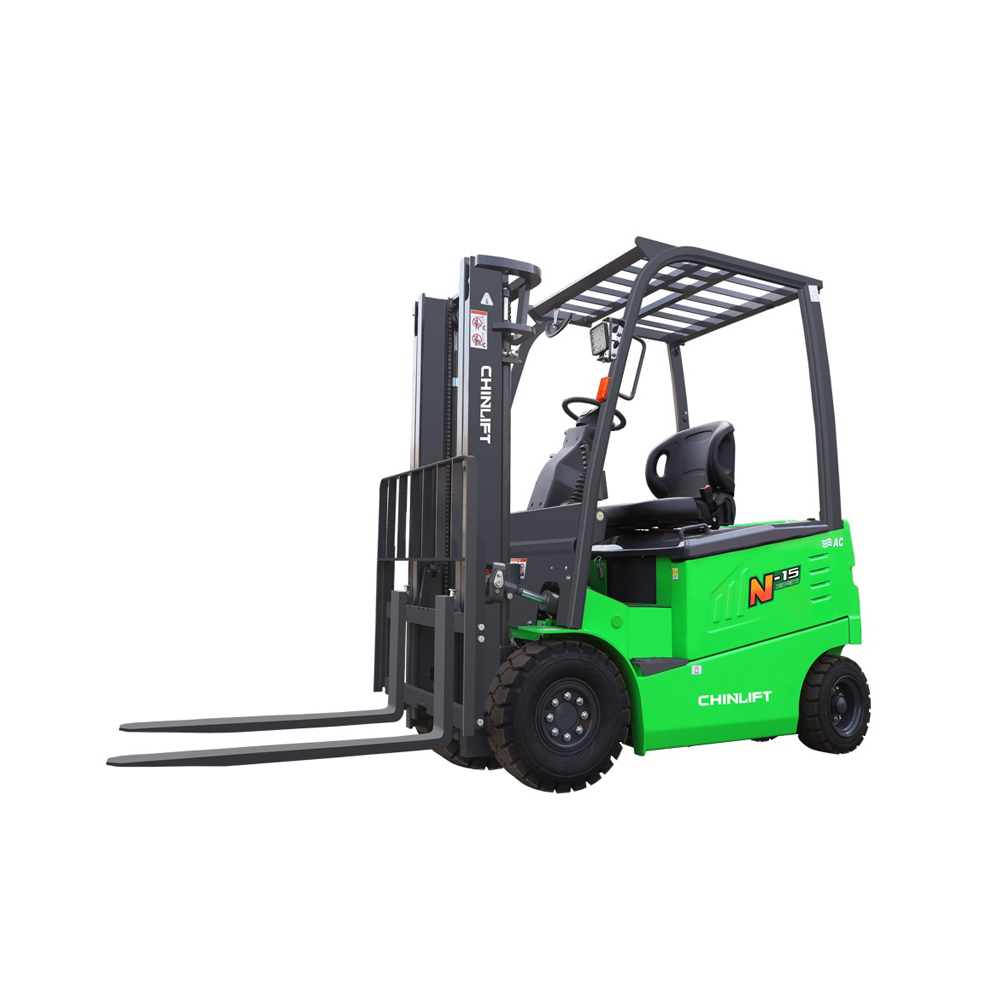

3000-6000mmN Series Electric Forklift LG15-18B
The N Series Electric Forklift LG15-18B is designed by professional industrial design methods, Artistic and Strengthful, The battery is sinking designed to ensure vehicle stability. Integral type axle & gear box and short front overhang improve vehicle longitudinal stability. Overhead rear axle improves vehicle lateral stability.Transmission system and electric motor professional matching designed. Battery life is prolonged by 30 minutes. Automatic turning slowdown function is optional. Equipped with LED light, energy and efficient.

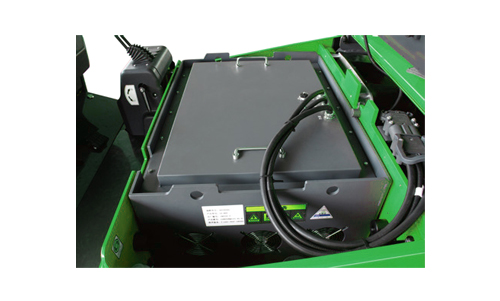

High Performance Controller & Li-ion battery
Equipped with premium imported controller Inmotion and also Chinese top class controller brand, to ensure maximum working efficiency and robust performance. Equipped with Eikto brand li-ion battery, withe various capacities to meet different customer's requirements.
Intelligent Control & Security
The waterproof LCD display tracks operation data in real-time. Paired with an advanced wiring harness and waterproof connectors, the system ensures ultimate circuit security, complemented by high-efficiency LED lighting.
Advanced Hydraulic System
Utilizing high-quality hydraulic components and a rational pipe distribution system to achieve precise oil pressure control, significantly enhancing lifting response and operational smoothness.
Enhanced Cooling Efficiency
A large-capacity radiator with optimized dissipation channels prevents overheating, ensuring the forklift maintains peak reliability during continuous, heavy-duty multi-shift operations.
Wide-View Safety Mast
Built with high-strength channel steel, our wide-view mast design maximizes the operator's visibility, making material handling safer, faster, and more efficient.
| Model | LG15BVI | LG18BVI | |
| Power type | Electrical(AC) | ||
| Controller | Inmotion | ||
| Rated capacity | 1500kg | 1800kg | |
| Load centre | 500mm | ||
| Min. turning radius | 1815mm | 1850mm | |
| Max.Gradeability(laden) | 20% | ||
| Lift height | 3000mm | 3000mm | |
| Length(with fork) | 3015mm | 3075mm | |
| Fork size | 920x100x35mm | ||
| Overall width | 1086mm | ||
| Height to safeguard | 2140mm | ||
| Travel motor rating | 8.2kW | ||
| Lift motor rating | 10.6kW | ||
| Travel speed with/without load | 14/15km/h | ||
| Lifting speed with/without load | 350/500mm/sec | ||
| Battery capacity | 80/205V/Ah | ||
| Tyre size, front | 6.0-9-10PR | ||
| Tyre size, rear | 16×6-8-10PR | ||
| Self weight | 2680kg | 2910kg | |
2-stage/3-stage full free mast (up to 6000mm).
Pneumatic tires (standard) or Solid tires (optional).
Side shifter, fork positioner, paper roll clamps, and bale clamps.
Semi-closed or fully enclosed cabin with heater/AC.
