Chinlift N Series electric forklift adopts the newest technologies and ergonomic concepts in designing and manufacturing. The forklift with low cost of ownership, superior visibility, unmatched technique, safety and ergonomics designing for operator. It can be widely used in warehouse, factory, port and construction plant, etc.
Model :
LG20/25BPower Type :
ElectricLoad Capacity :
2000/2500kgLifting Height :

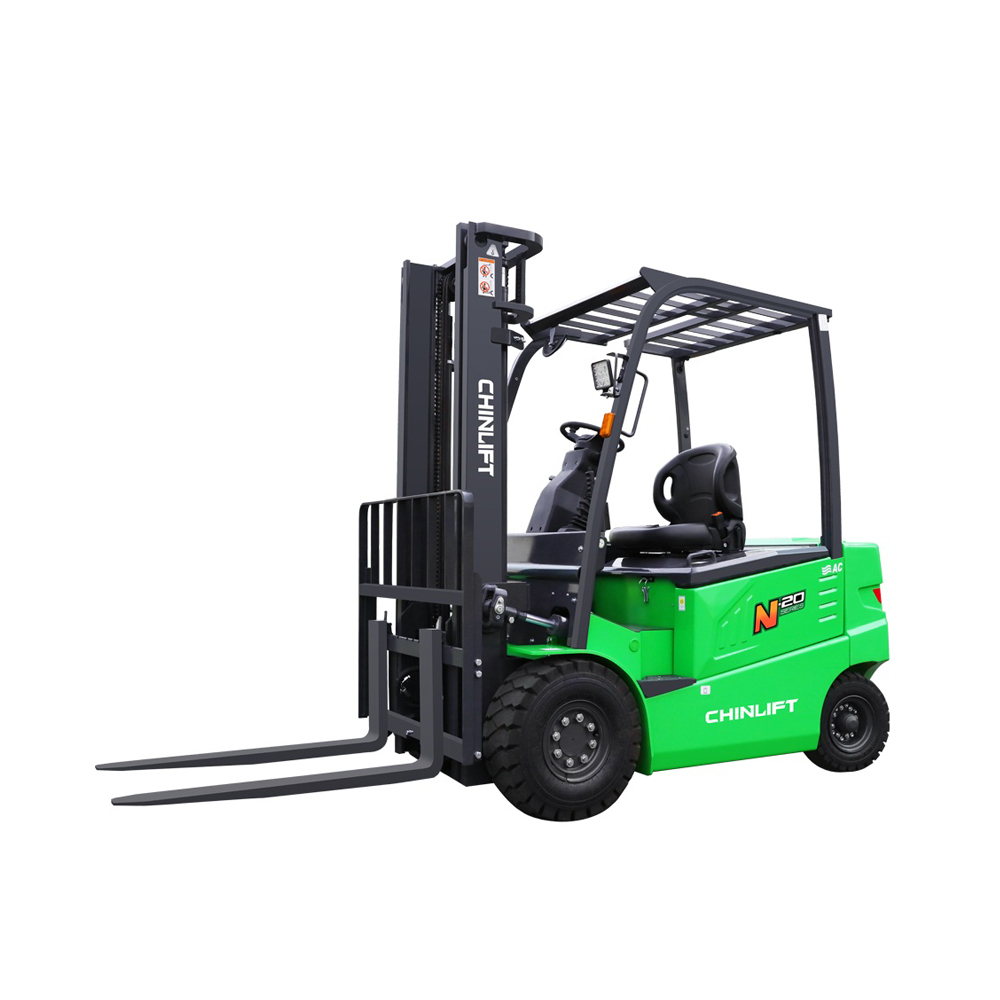

3000-6000mmN Series Lithium LG20-25B
The N Series Lithium LG20-25B was built based on T series IC chassis, which has the features of diesel forklift trucks like reliable, durable and cost-effetive, meanwhile, it also has the electric forklift features like 0 emission, low noise and low using costs.
The imported Inmotion and Chinese controller with microprocessor control system of the motor speed and temperature feedback signal ,regenerative braking and CANBAUA universal interface to ensure the accurate control of driving and lifting system. The regenerative braking can capture and reserve energy while braking.

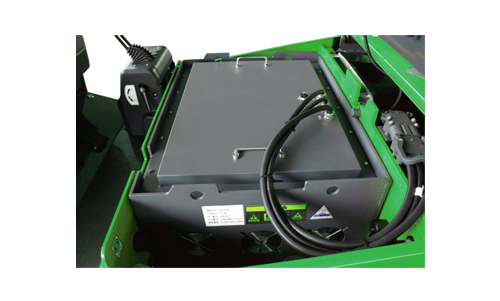

High Performance Controller & Li-ion battery
Equipped with premium imported controller Inmotion and also Chinese top class controller brand Haitian, to ensure maximum working efficiency and robust performance. Equipped with Eikto brand li-ion battery, withe various capacities to meet different customer's requirements.
Intelligent Control & Security
The waterproof LCD display tracks operation data in real-time. Paired with an advanced wiring harness and waterproof connectors, the system ensures ultimate circuit security, complemented by high-efficiency LED lighting.
Advanced Hydraulic System
Utilizing high-quality hydraulic components and a rational pipe distribution system to achieve precise oil pressure control, significantly enhancing lifting response and operational smoothness.
Enhanced Cooling Efficiency
A large-capacity radiator with optimized dissipation channels prevents overheating, ensuring the forklift maintains peak reliability during continuous, heavy-duty multi-shift operations.
Wide-View Safety Mast
Built with high-strength channel steel, our wide-view mast design maximizes the operator's visibility, making material handling safer, faster, and more efficient.
| Model | LG20BVI | LG25BVI | |
| Power type | Electrical(AC) | ||
| Controller | Inmotion | ||
| Rated capacity | 2000kg | 2500kg | |
| Load centre | 500mm | ||
| Min. turning radius | 2035mm | 2090mm | |
| Max.Gradeability(laden) | 20% | ||
| Lift height | 3000mm | 3000mm | |
| Length(with fork) | 3399mm | 3444mm | |
| Fork size | 1070x120x40mm | ||
| Overall width | 1185mm | ||
| Height to safeguard | 2148mm | ||
| Travel motor rating | 11.5kW | ||
| Lift motor rating | 15kW | ||
| Travel speed with/without load | 14/15km/h | ||
| Lifting speed with/without load | 300/430mm/sec | 430/300mm/sec | |
| Battery capacity | 80/205V/Ah | ||
| Tyre size, front | 23×9-10-16PR | ||
| Tyre size, rear | 18×7-8-14PR | ||
| Self weight | 3230kg | 3520kg | |
2-stage/3-stage full free mast (up to 6000mm).
Pneumatic tires (standard) or Solid tires (optional).
Side shifter, fork positioner, paper roll clamps, and bale clamps.
Semi-closed or fully enclosed cabin with heater/AC.
