Two-Stage Mast vs. Three-Stage Mast: Comprehensive Comparison of Stability, Load-Bearing Capacity and Field of Vision

When choosing a forklift mast, it is a key balance between on-site operational requirements and mechanical performance. The level of the mast directly determines the overall stability, residual rated load and operating field of vision of the forklift, and is a core factor affecting the safety of on-site operations and the efficiency of material handling. For equipment like a 3 ton diesel forklift, this decision is particularly critical, as it directly impacts daily productivity in logistics and warehousing environments. Both mast types have their structural advantages and operational shortcomings. The selection cannot be based solely on the lifting height; it needs to be judged comprehensively considering the center of gravity characteristics, load attenuation and field of vision performance.

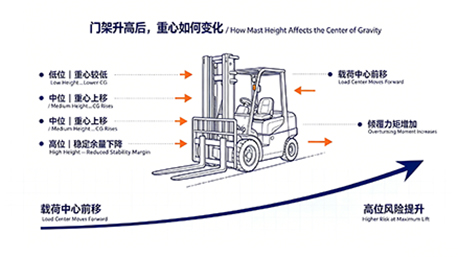

In terms of center of gravity and stability, the three-level mast has a more advantageous position in static conditions. Thanks to the multi-level telescopic structure, at the same lifting specification, the three-level mast has a lower closed height: for a standard 3-ton forklift, the closed height of the two-level mast is approximately 2.5 meters, while the three-level mast is only 2.03 meters. The lower closed height effectively reduces the static center of gravity of the entire vehicle, combined with a shorter cylinder stroke, the static load distribution is more reasonable, and the stability during low-speed positioning and static stacking is better. This design advantage is particularly valuable for a heavy duty diesel forklift that frequently operates on uneven yard surfaces, where enhanced baseline stability reduces tipping risks during idle periods. However, its advantage is limited to the retracted or low-lift state. When fully lifted to the extreme height, the multi-level structure extension will cause the center of gravity to quickly rise and shift forward, resulting in a significant decrease in stability margin and a significant increase in safety risks for high-position operations. Manufacturers like CHINLIFT Forklift have invested in advanced mast geometry to mitigate these effects, ensuring that even three-level configurations maintain predictable stability across varied operating conditions.

The difference in load attenuation performance is the core of the two. The rated load marked on the forklift is only suitable for standard low-lift conditions. For all mast types with higher lifting heights, the effective load margin is smaller. In the same-tonnage vehicle, the three-level mast has a more complex structure and a 100–300 kg higher self-weight than the two-level mast. During high-lift extension, the center of gravity shifts more significantly and the overturning moment is higher. Therefore, in high-altitude working conditions of 5 meters or above, the remaining safe load of the three-level mast is significantly weaker than the two-level mast with a simpler structure and lighter self-weight. For a 3 ton diesel forklift operating at maximum lift heights, this derating effect can reduce effective capacity by 15–20%, which must be carefully calculated in load management plans to ensure safe operations. This is also the core reason for prohibiting full-load operation at high positions.

In terms of field of vision, there are advantages and disadvantages for both. The traditional two-level mast has fewer components, simple piping and less obstruction, providing a clear operating field of vision and better observation during daily operations. The three-level mast has more dense crossbeams, guide rails and hydraulic piping, resulting in larger blind areas in traditional models. For operators handling a heavy duty diesel forklift in congested loading bays, clear visibility is paramount to avoiding collisions with personnel or racking systems. Currently, the mainstream forklifts are equipped with dual-side wide-view design, effectively optimizing the forward field of vision and significantly reducing the field of vision gap between the two.

The selection of working conditions can be precisely distinguished: for routine handling within 4 meters, emphasizing stability and low maintenance costs, the two-level mast is preferred. A 3 ton diesel forklift equipped with a two-level mast is often the most cost-effective solution for open-yard material handling tasks where overhead clearance is not a concern. For operations involving container entry and exit, box trucks or 2.1-meter low-height access spaces, or high-position three-dimensional warehouse stacking, the three-level mast should be chosen. For a heavy duty diesel forklift tasked with double-deck container stuffing or mezzanine rack retrieval, the three-level mast's low retracted height and extended reach are indispensable. Leading brands such as CHINLIFT Forklift offer purpose-built three-level mast options with reinforced channels and durable rollers to withstand the rigorous demands of heavy-duty, high-frequency operations.

Overall, the two-level mast is superior in stability, transparency and durability, while the three-level mast wins in low closed height and high lifting performance. Combining actual working conditions for scientific selection can balance the safety of forklift operations, operational efficiency and overall usage cost. Whether you choose a two-level or three-level solution, consulting with experts like CHINLIFT Forklift ensures that your equipment specifications align precisely with your application requirements, delivering maximum return on investment over the machine's lifecycle.
