Chinlift LG Series forklift adopts dual fuels system for both gasoline and LPG fuels, with low cost of ownership, superior visibility, unmatched technique, safety and ergonomics designing for operator. It can be widely used in warehouse, factory, port and construction plant, etc.
Model :
LG160DTPower Type :
DieselLoad Capacity :
16000kgLifting Height :

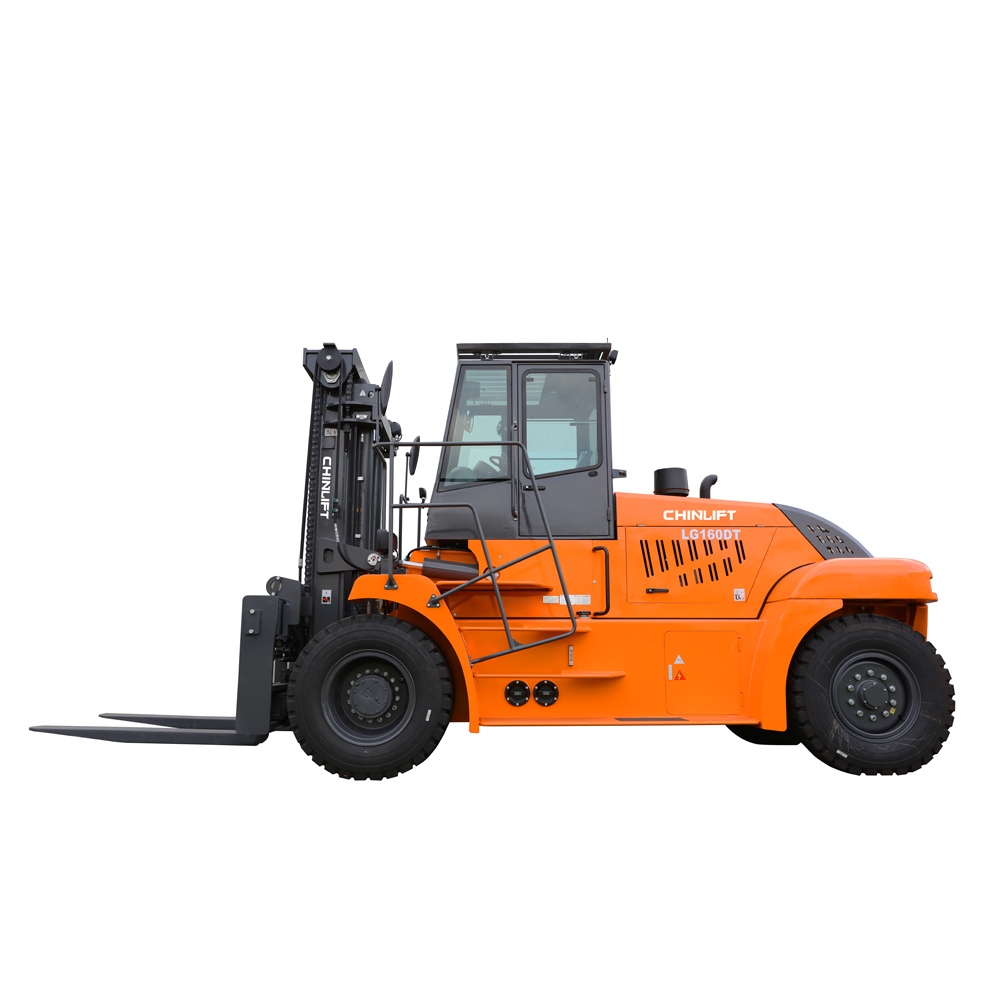

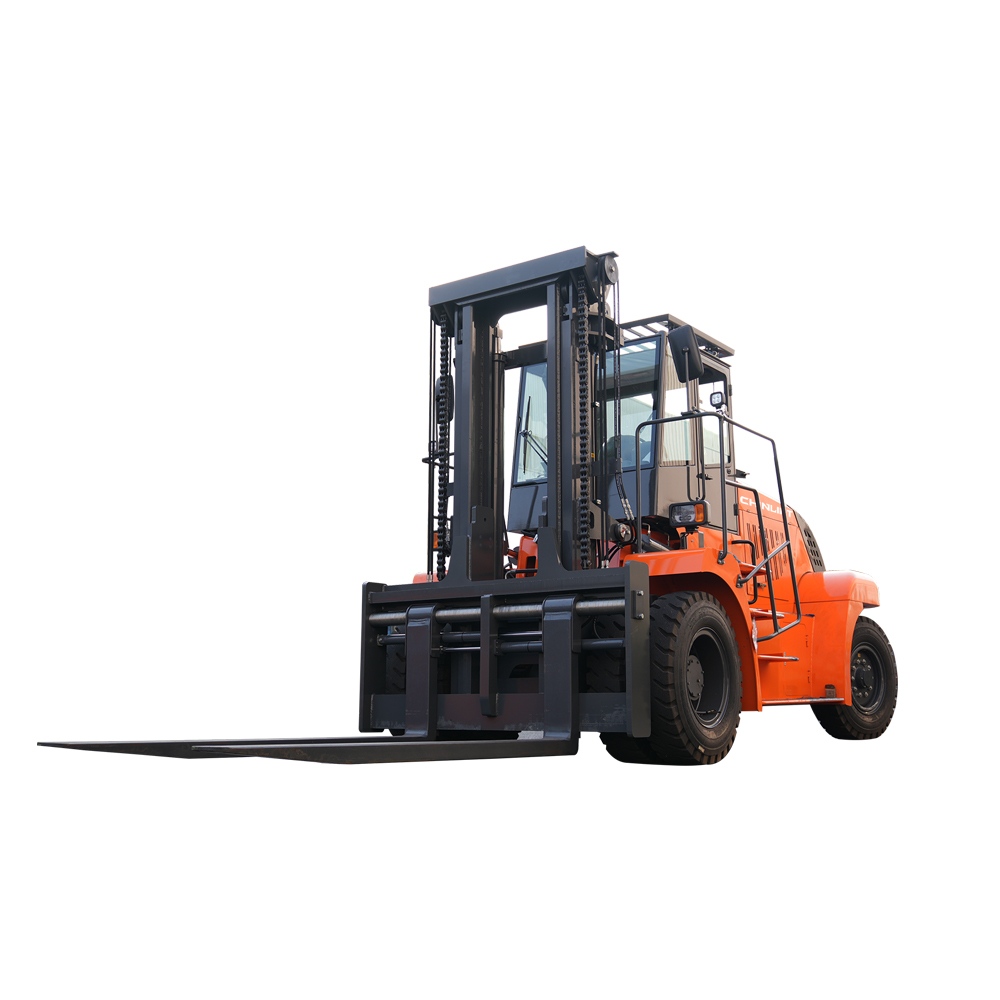

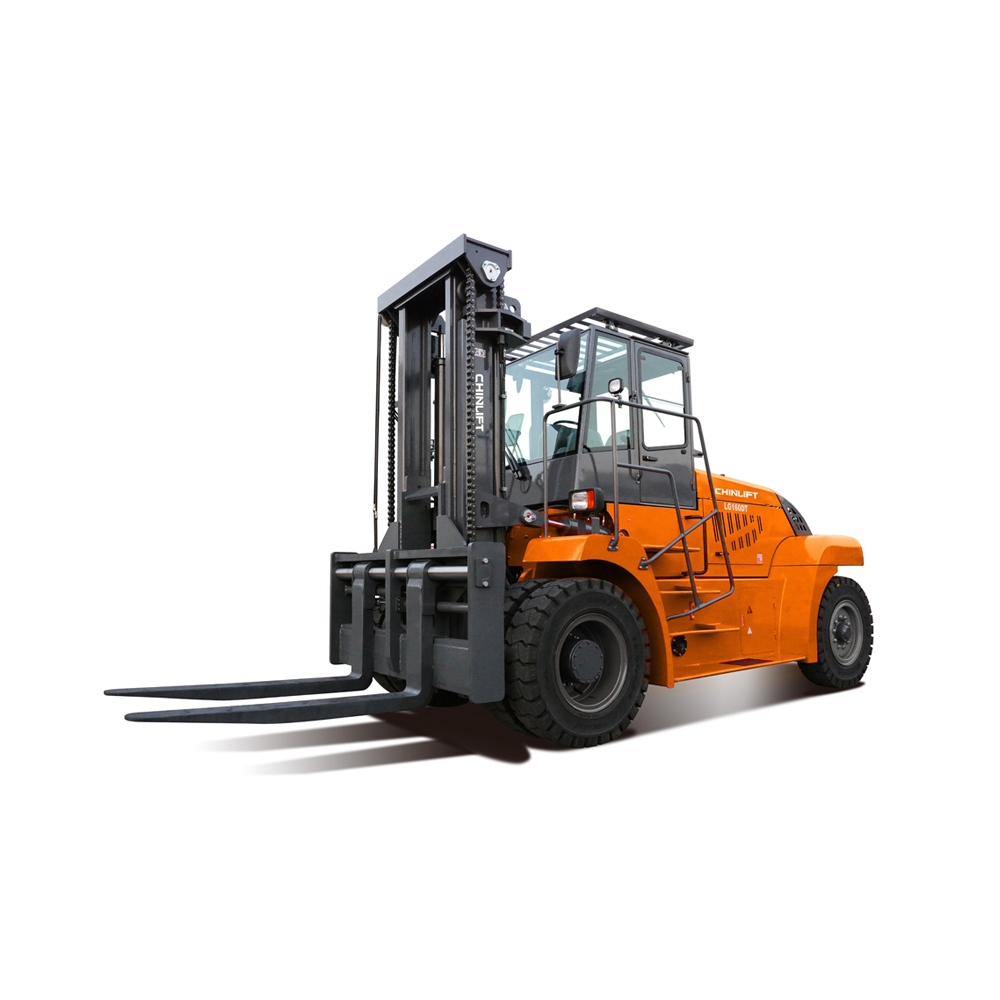

3500-6000mmLG Series 16T IC Counterbalanced Forklift
Engineered with Japanese TCM technology and high-performance Isuzu/Mitsubishi engines, the LG Series 16T IC Counterbalanced Forklift delivers a perfect blend of robust power and fuel efficiency. It features an intelligent LCD display and a wide-view mast, ensuring maximum operational safety and reliability for demanding material handling tasks.
High Performance Engine & Transmission
Equipped with premium engines like Isuzu, Mitsubishi, or Xinchai meeting EU II/III/V emission standards. Integrated with Japanese TCM technology transmission to ensure maximum power transfer efficiency and robust performance.

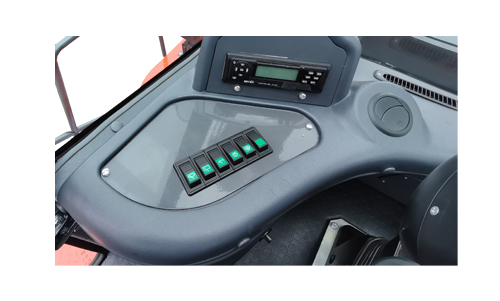

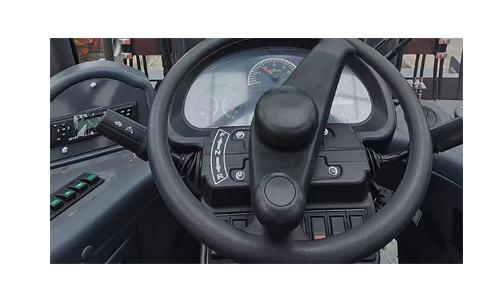

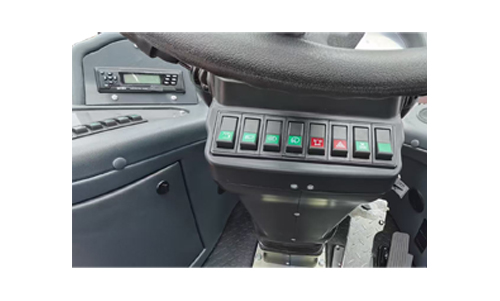

Intelligent Control & Security
The waterproof LCD display tracks operation data in real-time. Paired with an advanced wiring harness and waterproof connectors, the system ensures ultimate circuit security, complemented by high-efficiency LED lighting.
Advanced Hydraulic System
Utilizing high-quality hydraulic components and a rational pipe distribution system to achieve precise oil pressure control, significantly enhancing lifting response and operational smoothness.
Enhanced Cooling Efficiency
A large-capacity radiator with optimized dissipation channels prevents overheating, ensuring the forklift maintains peak reliability during continuous, heavy-duty multi-shift operations.
Wide-View Safety Mast
Built with high-strength channel steel, our wide-view mast design maximizes the operator's visibility, making material handling safer, faster, and more efficient.
| Model | LG160DT(A) | LG160DT(B) | |
| Power type | Diesel | ||
| Optional engine | Weichai WP6G190E330、Cummius QSB6.7-C190 | ||
| Rated capacity | 16000kg | 16000kg | |
| Load centre | 900mm | 1200mm | |
| Min. turning radius | 5300mm | 5175mm | |
| Max.Gradeability(loaden) | 20% | 28% | |
| Lift height | 3500mm | 4000mm | |
| Length(with fork) | 7380mm | 7870mm | |
| Fork size | 1820x220x100mm | 2400x250x100mm | |
| Overall width | 2752mm | 2560mm | |
| Height to safeguard | 3566mm | 3262mm | |
| Travel(Unloaden) | 27km/h | 30km/h | |
| Lifting(Loaden) | 280mm/sec | 320mm/sec | |
| Front tyre | 12.00-24-20PR | 12.00-24-20PR | |
| Rear tyre | 12.00-24-20PR | 12.00-24-20PR | |
| Self weight | 23500kg | 24000kg | |
| Battery capacity | 2×12/120 V/Ah | 2×12/120 V/Ah | |
2-stage/3-stage full free mast (up to 6000mm).
Pneumatic tires (standard) or Solid tires (optional).
Side shifter, fork positioner, paper roll clamps, and bale clamps.
Semi-closed or fully enclosed cabin with heater/AC.
